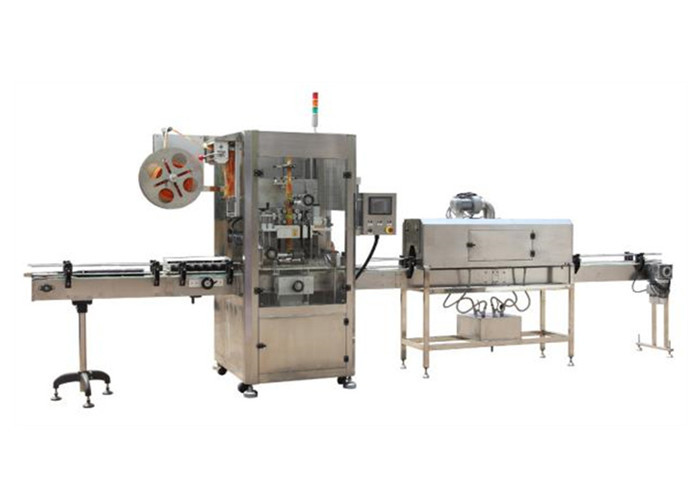

6000bph PVC Automatic Round Bottle Labeling Machine OPS Sleeve Applicator Machine

Minimum Order Quantity : 1 SET Packaging Details : Standard wooden case for export
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-TBJ-100

Detail Information

Name: Automatic Shrink Sleeve Labeling Machine For Bottle Cap Automatic Grade: Automatic
Available Product: Tube, Plastic Bottle, PVC, PET, Glass Bottle, Metel Can Etc. Product Size: φ86-106mm
Function: Seal Label Position: Bottle Cap
Speed: 0-6000 Bph Label Material: PVC、PET、OPS Etc.
High Light:

6000bph automatic round bottle labeling machine

,

PVC automatic round bottle labeling machine

,

OPS sleeve applicator machine

Product Description

Automatic Shrink Sleeve Labeling Machine for Shrink Label on Bottle Cap



  • Product Desription

It is applicable to shrink wrap the bottle cap,  mainly used for the sleeve labeling of condiment products in life. Anti-counterfeiting effect, sealing the bottle mouth to protect the freshness of the product, and it is more beautiful and hygienic after the labelled product.

Used for sleeve shrink label for bottle neck or bottle cap of Various beverage and chemical bottle types, such as: round bottle, square bottle, flat bottle, curved bottle, cup shape, tape and other bottled product.
Used in product like Sesame oil, glass bottle, soy sauce, sesame oil bottle etc. and large barrels of mineral water bottle sleeve label, large barrels of fuel bottle sleeve label, large barrels of practical oil bottle sleeve label etc.

  • Technical Parameter
Model XQ-TBJ-100
Working speed ≤6000BPH (Label height ≤100 mm
Voltage AC380/220V,50/60Hz
Total power 3kw
Applicable bottle diameter 40mm ~ 120mm, customized
Applicable bottle height 30 mm -250 mm, customized
Applicable label PVC,PET,OPS
Applicable label length 30mm ~250mm
Applicable label thickness 0.027mm ~0.13mm
Label roll OD. ≤500mm
Label roll ID. ≥4”(101.6mm)
Air supply 1-8Kg/cm2
Air consumption <25Kg/hour
Machine weight (kg) 700kg
Machine overall dimension (mm) 2100(L)×1050(W)×2000(H)mm



  • Product Feature
  1. The machines use the advanced man-machine interface automatic control technology,the key electric elements adopt international famous products.
  2. The machine operation, easy to adjust, can be used on production line.
  3. The unique design of the knife plate within the scope of the specification, shall not be in knife block, by changing the blade fast and convenient.
  4. The unique set of standard methods, using the compression type of label, convenient and reasonable.
  5. The whole machine transmission type structure to make changing bottle is extremely convenient.
  6. Suitable for 5 ~ 10 "the membrane material, uniform, efficient, and can do, stop action.
  7. Can be used in the square and round bottles.
  8. the elevating center pillar height is adjusted.
  9. Using high sensitivity optical fiber electric eye, precision cut length.
  • Product Samples

6000bph PVC Automatic Round Bottle Labeling Machine OPS Sleeve Applicator Machine 0

6000bph PVC Automatic Round Bottle Labeling Machine OPS Sleeve Applicator Machine 1
