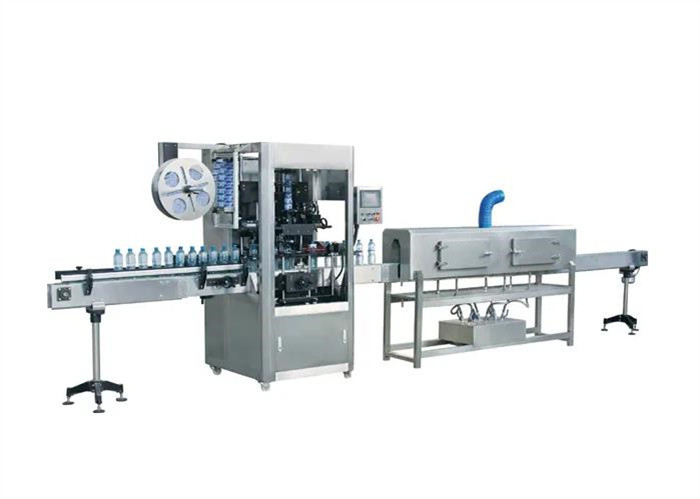

Single Head 12000bph Square Bottle Labeling Machine 125mm Shrink Sleeve Labeling Equipment

Minimum Order Quantity : 1 SET Packaging Details : Standard wooden case for export
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: TSB-350

Detail Information

Name: Shrink Sleeve Labeling Machine Automatic Grade: Automatic
Available Product: Square Bottle / Round Bottle Product Size: Φ40-125mm
Function: Sleeve Label Or Seal Label Position: Bottle Body , Bottle Cap, Bottle Bottom Or Bottle Neck Etc.
Speed: ≤12000 Bph Label Material: PVC、PET、OPS Etc.
High Light:

single head square bottle labeling machine


12000bph square bottle labeling machine


125mm shrink sleeve labeling equipment

Product Description

Square Bottle / Round Bottle Shrink Sleeve Labeling Machine with Single Label Head


  • Product Desription

Automatic sleeve label, also known as disc label, also called roll label, is a kind of heat shrinkable film label roll used on automatic sleeve labeling machine. Automatic labeling machine is a new type of label that automatically tracks, automatically cuts, automatically labels, automatically locates, and then heats and shrinks.
This sleeve labeling machine breaks through the traditional sleeve labeling technology. It can integrate three to four types of sleeve labeling in one machine, and can realize sleeve labeling of different varieties and models only by changing the mold. Improvements in mechanical structure, circuit design, and intelligent control have improved production efficiency. According to the characteristics of sleeve labels, it can meet the requirements of major manufacturers, reduce production costs for customers, and improve production efficiency;
Due to the design of the constant speed ratio, this machine fully realizes the purpose of accurate sleeve labeling, smooth operation and delivery of labels, stability, and fast table cutting.

  • Technical Parameter

1.Capacity: ≤12000 bottles/hour(b/h)

2.applicable bottle diameter: Φ40-125mm

3.applicable label height: 30-250mm

4.applicable label length: 0.03-0.08mm

5.voltage: AC380/220V,50/60Hz power: 3kw weight: 900kg

8.dimension: 2100(L)×850(W)×2000(H)mm


  • Working Principle

When the bottle pushing electric eye finds that a bottle is coming and thinks that continuous production is required, the bottle feeding screw starts to push the bottle (the function of the bottle feeding screw is to divide the bottles that come from unequal distances into new bottles at the same initial speed), and the bottle enters the bottle. The core unit of the sleeve labeling system. When the sleeve label electric eye senses the arrival of a bottle, it will immediately transmit the information to the control center PLC. And through the PLC, four commands are issued in sequence and consecutively: label sending, positioning, label cutting, and label shooting. After the label shooting is completed, the sleeve labeling process of a bottle is completed, and then it enters the label sorting and shrinking unit.



  • Product Feature

1. Full cover stainless steel mainframe, the whole machine is tarnished with rust.
2. The cutter head can be debugged, and the innovative rotary cut-off, double-sided blade, and long service life.
3. The single-positioning middle guide post makes the label guide more stable.
4. Synchronize the bottle-separation organization to make the bottle delivery more stable.
5. The label positioning group makes the precision of the sleeve label more accurate.
6. Button-type control system, the operation is more user-friendly

  • Product Samples

Automatic sleeve label is widely used in bottled water, bottled mineral water, purified water, soda water, fruit juice, vegetable juice, beverages, cola, dairy products, milk drinks, yogurt, fermented bean curd, cooking wine, various vinegars, tomato sauce, chili sauce , soy sauce, shampoo, detergent, detergent, disinfectant, pesticides, pesticides and other bottle labels.

Single Head 12000bph Square Bottle Labeling Machine 125mm Shrink Sleeve Labeling Equipment 0
