125mm Juice Shrink Sleeve Labeling Machine 40mm Automatic Bottle Labeling Machine

Product Description

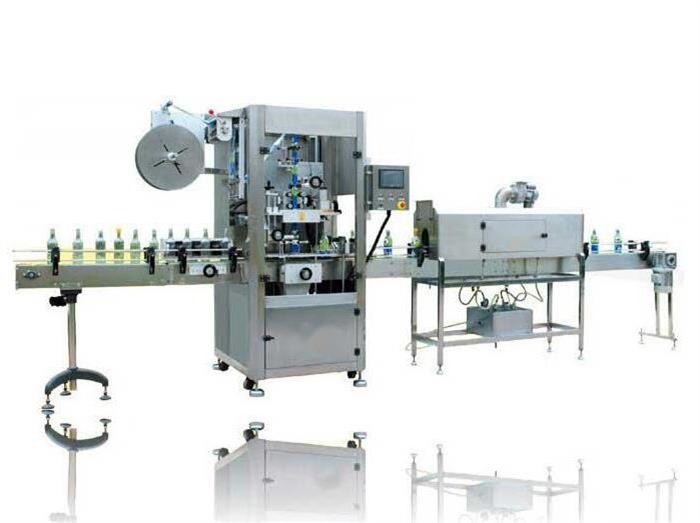

Juice/ Drinks Bottles Shrink Labeler / Shrink Sleeve Labeling Machine

• Product Desription

Shrink Labeler or Shrink Sleeve Labeling Machine As one of the equipment with high technical content in the back-end packaging, the sleeve labeling machine has been fully affirmed by the majority of customers for its excellent high-speed stable performance, unique smart design, and human-machine coordinated safety mode.
Application areas: food, beverage and pharmaceutical industries, condiments, juices, injection needles, milk, refined oils, etc.

• Technical Parameter

1.Capacity: ≤12000 bottles/hour(b/h)

2.applicable bottle diameter: Φ40-125mm

3.applicable label height: 30-250mm

4.applicable label length: 0.03-0.08mm

5.voltage: AC380/220V,50/60Hz

6.total power: 3kw

7.net weight: 900kg

8.dimension: 2100(L)×850(W)×2000(H)mm

• Product Feature

1. It is suitable for various bottle types of juice, tea drinks, dairy products, purified water, condiments, beer, sports drinks and other food and beverage industries. It not only has high accuracy of the position of the sleeve label, but also can highlight the bottle after shrinking to improve the bottle shape. .
2. Highly stable mechanical structure: The whole machine adopts stainless steel protective frame cover and aluminum alloy rigid body frame, which is stable and does not rust.
3. Flexible choice of multiple bottle types: round bottle, square bottle, oval bottle, etc., can also be used to cover the bottle mouth or bottle body.
4. Unique synchronous cutter seat, within the specification range, no need to change the cutter seat. If you need to change the specifications, it can be done quickly in 5 minutes.
5. Wide range of applications: suitable for food, beverages, cleaning supplies, medicines, wine bottles and other plastic bottles, glass bottles, PVC, PET, PS, iron cans and other containers.
6. High-quality positioning accuracy: fully mechanical transmission design, forced sleeve labeling, suitable for all kinds of film materials with a thickness of 0.030MM or more, and the inner diameter of the film material can be adjusted in the range of 5--10.
7. Low maintenance cost of consumables: This machine adopts low-cost disposable blades, which are easy to replace and have low cost burden.
8. Reliable after-sales service: all kinds of spare parts of the machine are available in the warehouse, which can be provided at any time, and experienced engineers provide you with technical support.
9. The shape is exquisite and beautiful, the overall structure is strong, and it is lighter and more flexible when used.
10. The exclusive design of the reciprocating cutter adopts the rigid body combination of the mechanism, the action is smooth, and the tool life is doubled.
11. Simple central column positioning, easy to change specifications, easy for operators to use, simple and easy to understand and learn to operate, completely avoiding the troubles of users.
12. Leading the industry in a new structure design, the quality is more solid, and it is by no means comparable to the existing domestic products.
13. The structure and components of the machine are simple and generous, which can ensure low failure rate and simple maintenance.
14. The whole series of safety main body safety protection frame is really thoughtful design.

• Product Samples
