Automatic 5.5kw Pillow Type Packing Machine 50hz With Coding Machine Optional

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-SZ180

Detail Information

Name: Automatic Flow Wrapping Machine Speed: 25-180 Bags/min
Pouch Size: (130-350)*(50-200)*(3-70) Mm Film Thickness: 40-70 Micro
Film Width: ≤400mm Voltage: 220v 50Hz
Power: 5.5kw Optional: Coding Machine
Available Film: OPP/CPP/PE Application: Vegetable, Medicine, Hardware
High Light:

automatic Pillow Type Packing Machine

,

5.5kw Pillow Type Packing Machine

,

50hz pillow packing machine

Product Description

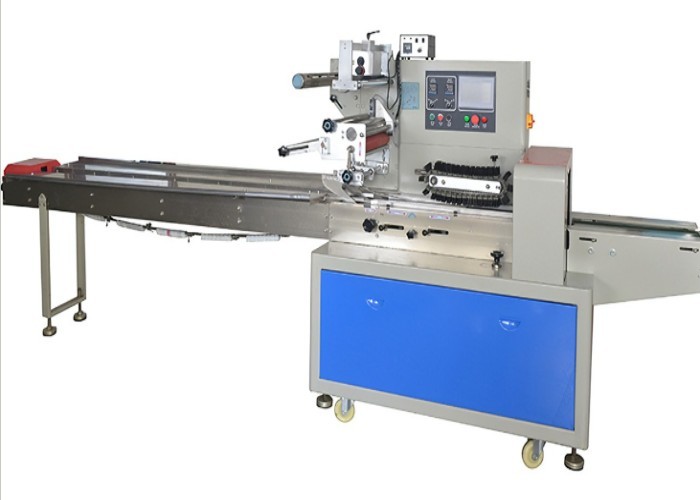

Automatic Flow Wrapping Machine Pillow Type Packing Machine with Coding Machine Optional



Pillow Type Packing Machine Introduction



Pillow pouch packaging/pillow type packing machine is a type of packaging that is used to store and protect items. This type of packaging is often seen in the retail industry, as it is a great way to keep products safe and secure. There are many different types of pillow pouch packaging, each with its own unique benefits.



Technical Parameter



Item Remark
Packaging film OPP/CPP/PE etc.; must used in roll, outer diameter≤300mm, inner diameter is 75mm, the surface of the film must be unknit, no wave on the edge of the film, the color mark must evidently different to the color of the film.
Model SZ100, SZ120, SZ160, SZ180
Bag size (130-350)*(50-200)*(3-70) mm (L*W*H)
Speed 25-180 bag/min
Film thickness 40-70 micro
Max film width 400MM
Max outer diameter 300MM
Voltage 220V, 50HZ
Power 5.5KW
Machine size 4000*950*1600 mm(L*W*H)



Pillow Type Packing Machine Features



Model: XQ-SZ180 Automatic Flow Wrapping Machine Pillow Type Packing Machine with Coding Machine Optional



A) Range of Packing: Applicable for packing various solid regular objects.

  • Food: instant noodles, biscuits, chocolates, candies, ice-cream and etc;
  • Chemistry: adhesive tapes, soaps, medicines, cartons, trays and etc;
  • Hotel commodity: facial tissues, knives and folks, shoe brushes, disposable toothpastes and toothbrushes.
  • Medicine: capsule board, tablet board, surgical mask
  • Daily use: soap, tape, wipes, sponge
  • Vegetables: Chinese cabbage, potato, carrot

B) Features:

① The key parts of machine are adopted of stainless steel, in accordance with food QS and medicine GMP health requirements.

② Dual variable frequency control, packing goods faster, convenient with superior quality.

③ High sensitive electronic eye tracing system, after setting, the machine is no need to adjust by hand, the cutting position is accuracy, the seal is firm and beauty.

④ The control unit is composed of servo motor, servo driver and large size color touch screen, with high control precision and intelligent control system



Samples



Automatic 5.5kw Pillow Type Packing Machine 50hz With Coding Machine Optional 0
