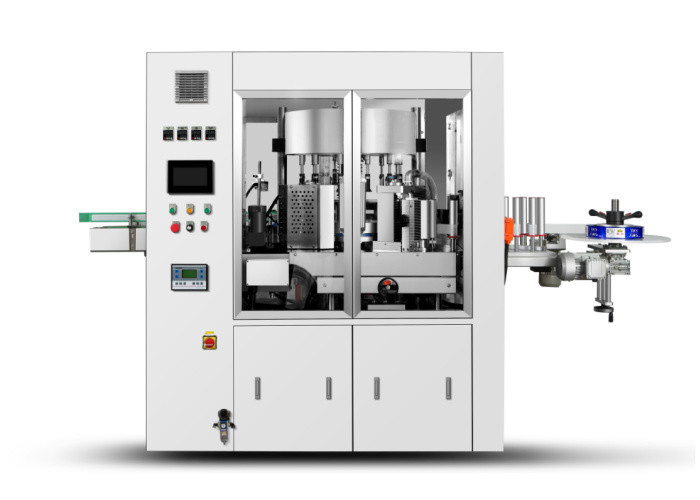

Rotation Beverage Hot Melt Glue Labeling Machine , Wine Sticker Dispenser Machine

Minimum Order Quantity : 1 set Packaging Details : Standard Wooden Case for Export
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 Units/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-TB-3P-260

Detail Information

Name: Hot Melt Sticker Labeling Machine Application: Beverage, Drinks Bottles
Available Product: Bottles Function: Labeling
Label Type: OPP Hot Melt Glue Label Label Qty: One
Label Position: Wrap-around Speed: 12000BPH
Option: Coding, Printing...etc.
High Light:

rotation hot melt glue labeling machine


Beverage hot melt glue labeling machine


wine sticker dispenser machine

Product Description

Rotation Type Hot Melt Glue Labeling Machine for Wines /Drinks Bottles


  • Product Description

Rotation Type Hot Melt Glue Labeling Machine is suitable for labeling before and after filling, including round bottles, square bottles, oval bottles and other special-shaped bottles. It has the advantages of high design precision, rotary design, compact structure, beautiful appearance, strict processing requirements, meticulous assembly, good machine running stability at high speed, low glue consumption, and low running cost of bottles and labels.

  • Technical Parameter
Speed adjustable Method continuously variable
Labeling Max. Speed round bottle speed 12000B/H (adjustable according to production status)
Labeling precision ±1mm
Product size Round bottle∮45-95mm,H=80-350MM
Label width /(height) 20-180mm
Label Length . 150-310mm
Labeling glue hot melt ,only glue two ends of label
Gluing temperature 120~160℃
Label type OPP film label, paper plastic composite film label, paper label
Labeling stations Labeling stations
Labeling molds Qty according to bottle size provided
Labeling product type Round bottle
Power supply 380VAC 3P/ 50 Hz
Power 8kW
Conveyor height 1100±50mm(accept custom according to customer’s conveyor
Equipment weight about 1500kgs
Equipment dimension L=2410mm W=1860mm H=2100mm
Main motor JMC
Servo motor Schneider
PLC Schneider
Sensing element SICK
Interface Schneider
Encoder Omron
low voltage electrical Schneider


  • Labeling Principle


The hot melt adhesive OPP labeling machine is a new type of rotating and continuous operation labeling machine; Equipment can automatically adjust the container in and out of the transmission; The container transferred by the conveyor belt is separated by a certain distance by the bottle dividing screw according to the distance of the star wheels. Then, the imported star wheel will transfer the container to the container turntable. After the container is fixed by the bottle pressing mechanism and the mold base of the container, the container starts to rotate at a certain speed. Mechanical predetermined position during product rotation; And according to the trajectory of the mechanism for positioning labeling.

When the container arrives at the position detected by the electric eye, the label delivery system is controlled by the computer host to deliver the label. After completing a label delivery action, the high-speed cutter cuts off a label.

The cutting label is sent to the gluing system; In this part, the system applies glue to both ends of the label, which makes the consumption of hot melt glue the lowest.

When the coated label is transferred to the labeling position, the label can be accurately and effectively glued to the container. Since the container is in a rotational state during the transfer of the label, the label can be attached to the container smoothly and tightly. The strip at the end of the label can form a good lapping seal of the label, completing a labeling process.


  • Product Features

Rotation Beverage Hot Melt Glue Labeling Machine , Wine Sticker Dispenser Machine 0


Safety protection: The equipment is forbidden to run and start when the protective door is opened. The emergency stop switch can be pressed to prevent injury to people

Label Status: When the label is used up, slow down and wait for the alarm prompt, remind to change the label. When the color label detection continuous loss, cutting label deviation is too large when the machine stop and alarm to reduce non-conforming products.

Glue Detection: When the glue temperature does not reach the melting value, the equipment is forbidden to start, to prevent the damage of the equipment, when the glue temperature exceeds the upper limit, the probe opens the circuit, the heater breaks the circuit, stop heating and stop and alarm.

Warning of missing label: When there is a missing label, the device slows down to stop & alarm, to prevent cutting the label drum glue, reduce the downtime.

Material Control: When the bottle feeding end lack bottles or bottles plug in outside, the equipment slow down standby, standby indicator light prompt, automatically resume production speed after the release the state.

Components Monitoring: When the servo drive, frequency conversion drive failure, control power short circuit,the device shutdown alarm.

Air Pressure Detection: When the air pressure can not meet the production requirements of equipment, equipment shutdown protection to prevent the production of defective products

Material clogging: When the feed screw clogging occurs, failure shutdown alarm.

  • Product Samples

Rotation Beverage Hot Melt Glue Labeling Machine , Wine Sticker Dispenser Machine 1Rotation Beverage Hot Melt Glue Labeling Machine , Wine Sticker Dispenser Machine 2
