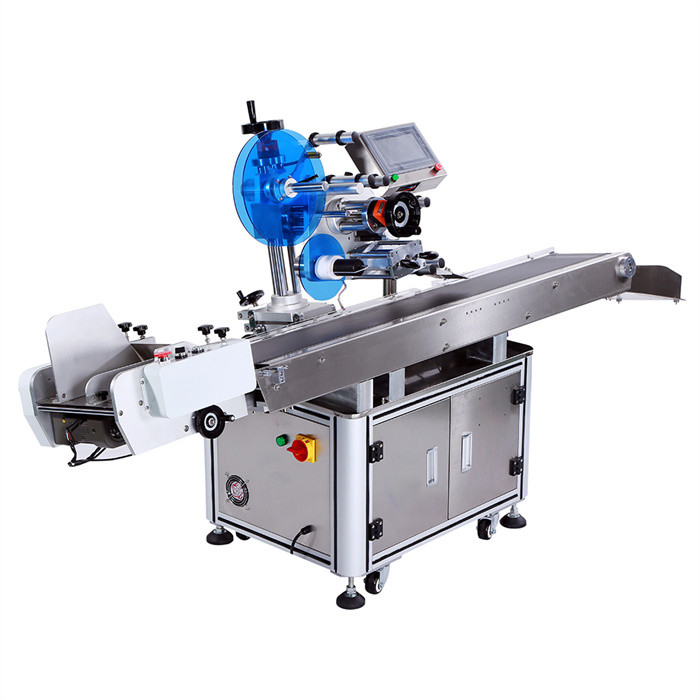

50-150pcs/Min Pouch Labeling Machine Paging Sticker Label Applicator

Minimum Order Quantity : 1 set Packaging Details : Standard Wooden Case for Export
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 Units/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-TBF

Detail Information

Name: Paging Sticker Labeling Machine Automatic Grade: Automatic
Application: Cosmetics, Pharma, Stationery,Beverage,Food, Commodity Etc. Available Product: Empty Pouches, Cartons, Mask, Card Etc.
Function: Labeling Label Type: Printed
Label Qty: Single Side Label Position: Top
Speed: 50-150 Pcs/min Option: Coding, Printing...etc.
High Light:

50pcs min pouch labeling machine

,

150pcs min pouch labeling machine

,

paging sticker label applicator

Product Description

Paging Sticker Labeling Machine for Empty Pouches and Cartons



  • Product Description

The paging labeling machine is mainly an automatic labeling device that accurately affixes self-adhesive labels after automatic separation of plastic bags, cards, paper, etc.

  • Technical Parameter
Machine model XQ-TBF
Machine size 2000(L)×700(W)×1600(H)
Labeling speed 50—150pcs/min
Bottle diameter 50—300mm
Label height 20—180mm
Label length 20—300mm
Labeling accuracy ±1mm
Roll inner diameter 76mm
Roll outer diameter 380mm
Power supply 220v 50/60hz 1.5Kw
Machine weight 220kg

  • Product Features

1. Powerful functions and multi-functional configuration: the header can be adjusted freely, and the operation is simple; automatic photoelectric tracking, with no labeling without labels, automatic calibration without labels and automatic label detection functions, to prevent missed stickers and waste;
2. Intelligent control, simple operation: humanized design, PLC programming control, large color touch screen operation, optional operation interface in Chinese and English, convenient and intuitive; powerful data memory function, can store 50 sets of labeling parameters, simple and fast operation; perfect Fault prompt and help function;
3. Imported first-line brand sensors are used for target measurement and object measurement: high detection sensitivity, stable performance, and durability;
4. Convenient production management: It has functions such as labeling counting, power saving mode, photoelectric tracking labels, etc., making production management easier;
5. Excellent material selection and excellent quality: the main components of this model are made of stainless steel and high-grade aluminum alloy plates, which are rigid, not deformed, rusted, and beautiful. GMP Good Manufacturing Standards;
6. Optional functions and components:
Coding machine Thermal coding machine can print production date, product expiration date, production batch number, etc. to improve production efficiency;
Universal sensor Ordinary sensors cannot detect transparent labels, and special transparent labels must be selected to detect electric eyes;
The inkjet printer can be matched with the mainstream inkjet printers on the market, and can be used for printing at the designated position on the label;
The barcode reader reads QR code, barcode and other information during labeling, which is convenient for establishing a product database for product traceability.
  • Application

For unformed packaging boxes, cards, tags, magazines, paper, aluminum-plastic bags and other light and thin products pagination and labeling

50-150pcs/Min Pouch Labeling Machine Paging Sticker Label Applicator 0
