OPP Hot Melt Bottle Sticker Labelling Machine Mineral Water Label Glue

Minimum Order Quantity : 1 set Packaging Details : Standard Wooden Case for Export
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 Units/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-TBG300

Detail Information

Name: Hot Melt Sticker Labeling Machine Application: Berverage, Drinks Bottles
Available Product: Bottles Function: Labeling
Label Type: OPP Hot Melt Glue Label Label Qty: Wrap-around
Label Position: Side Speed: 20000BPH
Option: Coding, Printing...etc.
High Light:

OPP bottle sticker labelling machine

,

hot melt bottle sticker labelling machine

,

Mineral Water label glue machine

Product Description

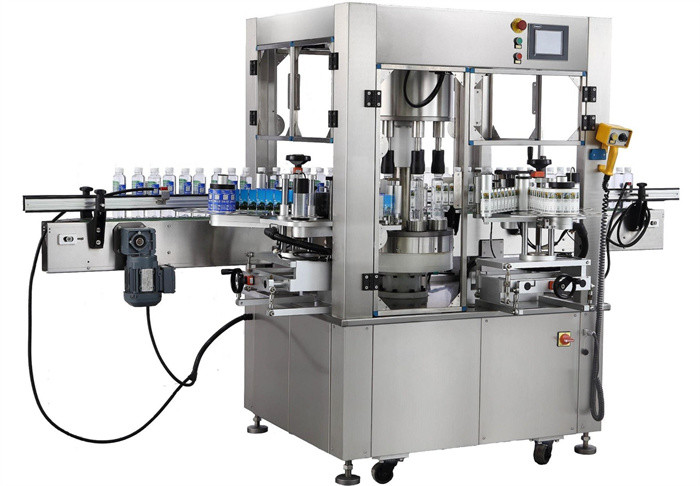

Drinks/Mineral Water Bottles Opp Hot Melt Sticker Labeling Machine



  • Product Description

It is a special labeling machine to label on bottle side of water or drinks bottle product, widely used in water and drinks industries. It is a high speed and ideal labeling machine for large production capacity of water or drinks production.

  • Technical Parameter
Model XQ-TBG300
Main motor power 2.2kw
Voltage 380V±10% 50Hz
Total power about 8kw
Gluing way Roll painting
Working speed 20000 bottle/hour
Compressed Air Pressure MIN5.0bar MAX8.0bar
Consumption 0.2M³/min
Machine weight (kg) about 1500kg
Machine overall dimension (mm) L=2520 W=1860 H=1950





  • Working Steps



bottle feeding → screw bottle separation → positioning → detection → label cutting → label suction → gluing → labeling → label support → star wheel out of bottle



  • Label Quality

The marking pattern is complete and not deformed; the end-to-end mesh glue is applied, which saves 50% of hot sol compared with foreign full-spray gluing equipment; deviation correction ± 0.05 (mm); The labeling surface is smooth, the overlap is not dislocated, there is no leakage, and there is no glue opening.

  • Product Features

◆ suitable for the circumferential labeling of opp film, pearlescent film, paper-plastic composite film and paper label of cylindrical objects such as round, square, flat and oval.
◆ suitable for the circumferential labeling of plastic bottles, glass bottles, metal cans and other objects in various industries. Due to the non-shrinking process, the content printed on the label will not be deformed, the label will not be wrinkled, and the finished product will be printed on the labeling product. And no thorny feel
◆ production capacity can be selected from 0-20000 bottles/hour. It can be used in connection with the front-end equipment to ensure the efficiency of the whole line, and at the same time, it greatly improves the automation of the whole line and saves human resources.
◆ Chinese and English dual operation interface, and there are color identification blocks, easy to learn, a real intelligent device
◆The screw cooperates with the polymer star wheel assembly to enter and exit the bottle, which can minimize the scratching degree of the labeling product and ensure the smoothness of entering and leaving the bottle to the greatest extent.

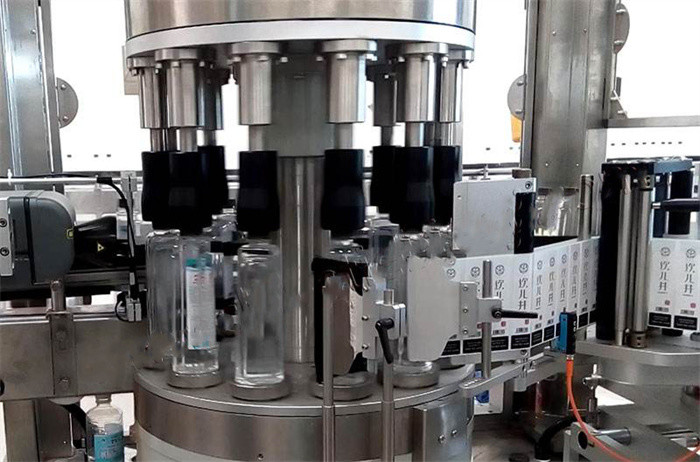

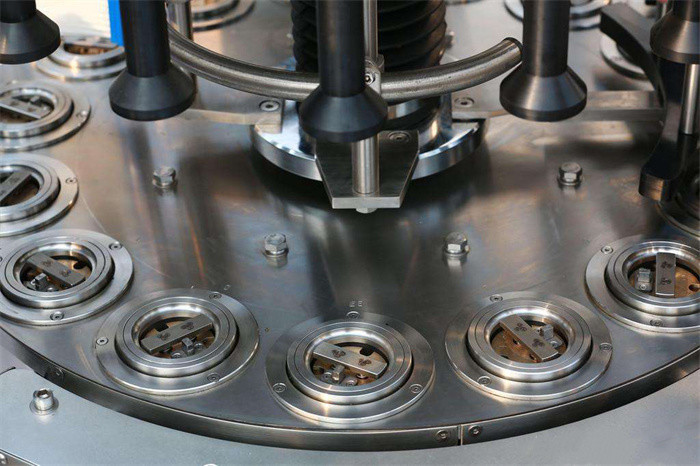

  • Product Samples

OPP Hot Melt Bottle Sticker Labelling Machine Mineral Water Label Glue 0
