Vertical Auto Sticker Labeling Machine For Round Bottle Single Side Applicator

Minimum Order Quantity : 1 set Packaging Details : Standard Wooden Case for Export
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 Units/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-TBR

Detail Information

Name: Round Bottle Labeling Machine Automatic Grade: Automatic
Application: Food, Beverage, Stationery, Pharma, Cosmetics Available Product: Round Bottles Or Cans
Function: Labeling Label Type: Printed
Label Qty: Single Side Label Position: Side
Speed: 1-50 Pcs/min Option: Coding, Printing...etc.
High Light:

vertical sticker labeling machine for round bottle

,

auto sticker labeling machine for round bottle

,

single side round bottle label applicator

Product Description

Automatic Vertical Sticker Labeling Machine for Round bottles



  • Product Description

It is applicable to label glass bottle, plastic bottle and other round objects, widely used in the products for pharmaceutical, cosmetic, food and chemical industries etc.

  • Technical Parameter



Model XQ-TBR
Driving mode Servo motor
Operation direction Left or right
Labeling speed 10—50pcs/min (Depending on product size and label length)
Suitable label Adhesive sticker, opaque label
Bottle diameter Φ20—130mm,, customized
Label height 20—180mm,, customized
Label length 30—400mm, customized
Labeling accuracy ±1mm(Not calculate the error of bottle and label)
Roll inner diameter 76mm
Roll outside diameter 380mm
Power supply 220V 50/60hz (Can be customized)
  • Product Features

1. The machine mainly uses SS304 stainless steel and aluminum alloy (sandblasting anodizing) material.
2. The host is driven by advanced servo system, with high speed and high positioning accuracy.
3. Most electronic products are imported famous brands, with high stability and accurate detection.
4. PLC with man-machine interface control, operation is concise and clear.
5. The host position can be flexibly adjusted on the top, bottom, front and rear, parallelism and verticality.
6. The speed of conveyor belt can realize digital adjustment of touch screen.
7. The device can operate independently and can also be connected to the production line.
  • Product Samples

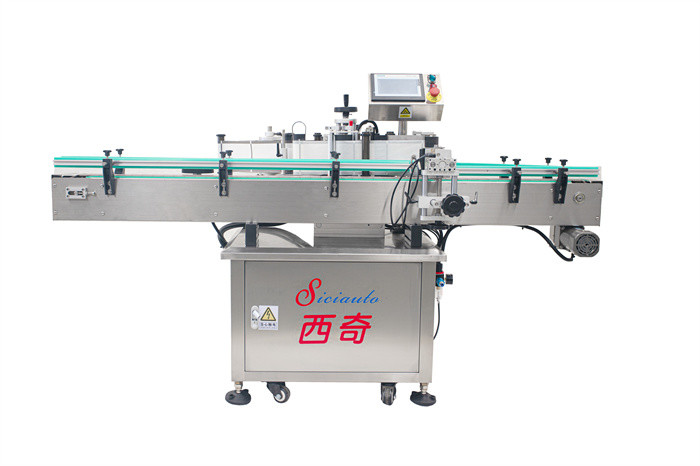

Vertical Auto Sticker Labeling Machine For Round Bottle Single Side Applicator 0
