Cosmetics Top Flat Bottle Sticker Labeling Machine Automatic Pasting

Minimum Order Quantity : 1 set Packaging Details : Standard Wooden Case for Export
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 Units/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-TBP

Detail Information

Name: Top Side Sticker Labeling Machine Automatic Grade: Automatic
Application: Cosmetics, Pharma, Stationery,Beverage,Food, Commodity Etc. Available Product: Product Top With Flat Surface
Function: Labeling Label Type: Printed
Label Qty: Single Side Label Position: Top
Speed: 20-200 Pcs/min Option: Coding, Printing...etc.
High Light:

top flat bottle sticker labeling machine

,

Cosmetics flat bottle sticker labeling machine

,

Automatic sticker pasting machine

Product Description

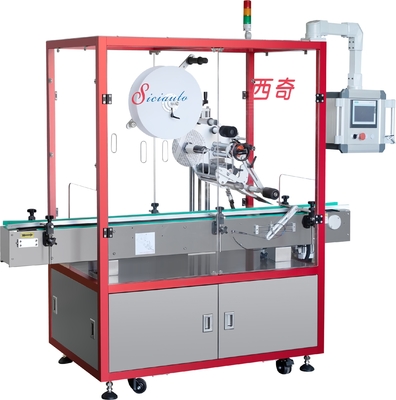

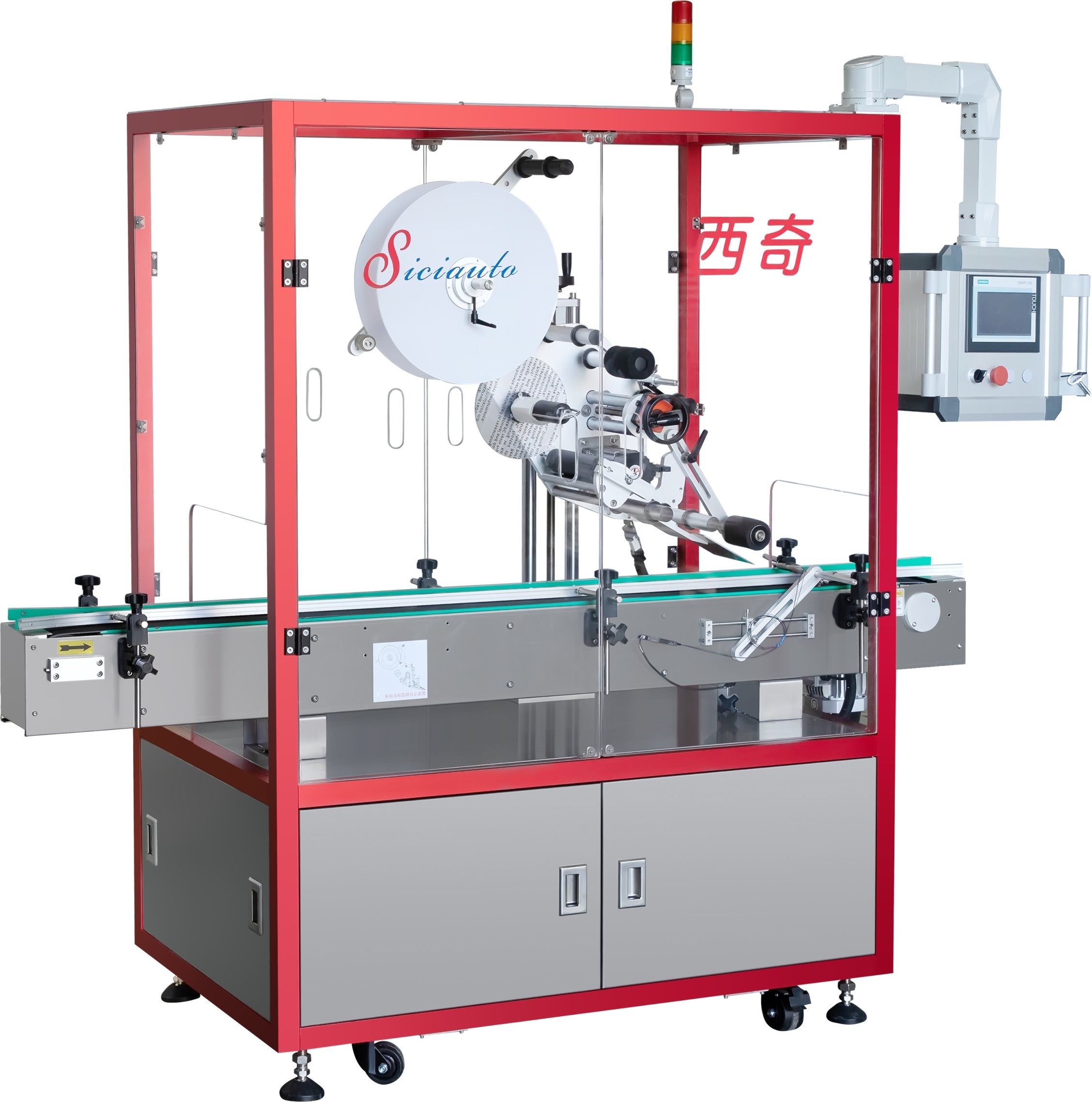

Flat Sticker Labeling Machine for Label on Top Side



  • Product Description

It is a labeling machine to label on the top of product, widely used in cosmetics, daily chemical, electronics, medicine, plastics, soap and other industries. It can be used for top labeling of different products like flat bottles, round bottles, square bottles and box.

  • Technical Parameter
Model XQ-TBP
Driving mode Servo motor
Operation direction Left or right
Labeling speed 30—80pcs/min (Depending on product size and label size
Suitable label Adhesive sticker, opaque label
Product width 20—180mm, customized
Label height 20—180mm, customized
Label length 20—180mm, customized
Labeling accuracy ±1mm(Not calculate the error of bottle and label)
Roll inner diameter 76mm
Roll outside diameter 380mm
Power 1.5kw
Power supply 220V 50/60hz (Can be customized)
Machine Size (mm) 2000(L)×1000(W)×1600(H)/ 260KG



  • Product Features

1. The machine mainly uses SS304 stainless steel and aluminum alloy (sandblasting anodizing) material.
2. The host is driven by advanced servo system, with high speed and high positioning accuracy.
3. Most electronic products are imported famous brands, with high stability and accurate detection.
4. PLC with man-machine interface control, operation is concise and clear.
5. The host position can be flexibly adjusted on the top, bottom, front and rear, parallelism and verticality.
6. The speed of conveyor belt can realize digital adjustment of touch screen.
7. The device can operate independently and can also be connected to the production line.
  • Application

Cosmetics Top Flat Bottle Sticker Labeling Machine Automatic Pasting 0
