100-400 PCS/MIN Bottle Label Sticking Machine , Cosmetics Paper Labeling Machine

Minimum Order Quantity : 1 set Packaging Details : Standard Wooden Case for Export
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 Units/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-TBR-H

Detail Information

Name: Bottles Sticker Labeling Machine Application: Food, Medicine, Cosmetics, Daily Chemicals, Electronics, Hardware, Plastics And Other Industries
Available Product: Round Bottles Or Cans Function: Labeling
Label Gap: >5mm Label Type: Self-adhesive Labels, Self-adhesive Films, Electronic Supervision Codes, Barcodes
Label Qty: Single Side Label Position: Bottle Wrap-around Label
Speed: 100-400 Pcs/min Option: Coding, Printing...etc.
High Light:

100 PCS MIN bottle label sticking machine

,

400 PCS MIN bottle label sticking machine

,

cosmetics paper labeling machine

Product Description

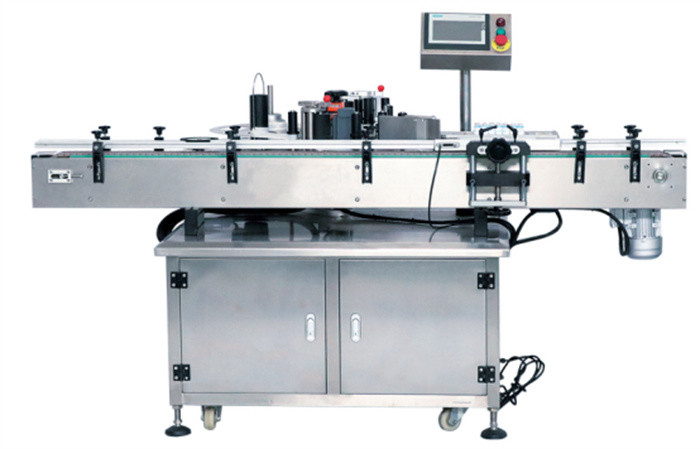

High Speed Bottles Sticker Labeling Machine /Speed 100-400 PCS/MIN



  • Product Description

High Speed Bottles Sticker Labeling Machine is a round bottle labeling machine suitable for pharmaceutical, food, daily chemical and other industries.

It is suitable for labeling on the circumference of round bottle objects. It can be single label and double label. The distance between the double labels on the front and back can be adjusted flexibly, such as labeling of cosmetic round bottles and food round cans. It is widely used in cosmetics, food, pharmacy, disinfection water industry.
The optional circumferential positioning detection device can realize labeling at the designated position on the circumferential surface.
Optional color matching tape coding and inkjet printer can print the production date and batch number information on the label, and realize the integration of labeling and coding.

  • Technical Parameter
consumed power 1.5K W
The labeling speed 100-400 bottles / min (adjustable speed, depending on item size and label length)
Label accuracy + 1mm (depending on product characteristics, hardness and circle)
Bottle diameter 25-120mm
Product height Height of 20mm~~200mm (customized to customer requirements)
Label size Height 20mm~~150mm length 15~~300mm (special specification is available)
Label roll inner diameter Φ76mm paper outer diameter: Φ 300 (max)
voltage AC220V 50/60HZ
Machine weight 200KG
Machine size 2000X 800X1300mm
Belt width Can be specially customized according to the sample bottle diameter provided by the customer




  • Product Features

◆ It has a wide range of applications, which can meet the full-circle labeling or half-circle labeling of round bottles, the labeling switch between bottles is simple, and the adjustment is convenient;
◆ The label has high coincidence, and the labeling belt adopts a deviation-correcting mechanism, the labeling belt does not deviate, and the labeling position can be adjusted in three directions of x/y/z and the inclination of a total of eight degrees of freedom, no dead angle in adjustment, and high label coincidence ;
◆ The labeling quality is excellent, and the elastic pressing belt is used to cover the label, and the labeling is smooth and wrinkle-free, which improves the packaging quality;
◆ Flexible application, bottle stand-up labeling, with automatic bottle separation function, can be produced by stand-alone machine or connected to assembly line production;
◆ Intelligent control, automatic photoelectric tracking, with no labeling, no label automatic calibration and label automatic detection function, to prevent missing stickers and label waste;
◆ High stability, advanced electronic control system composed of Panasonic PLC + Panasonic touch screen + Panasonic needle-shaped electric eye + German Leuze label electric eye, which supports the 7×24-hour operation of the equipment;
◆ Simple adjustment, the labeling speed, conveying speed and bottle dividing speed can realize stepless speed regulation, which can be adjusted according to needs;
◆ Sturdy and durable, the three-bar adjustment mechanism is adopted to make full use of the stability of the triangle, and the whole machine is sturdy and durable. Made of stainless steel and high-grade aluminum alloy, it meets GMP production requirements.
  • Product Samples

100-400 PCS/MIN Bottle Label Sticking Machine , Cosmetics Paper Labeling Machine 0100-400 PCS/MIN Bottle Label Sticking Machine , Cosmetics Paper Labeling Machine 1
