High Speed Round Bottle Sticker Labeling Machine 60-100pcs/Min Pasting

Minimum Order Quantity : 1 set Packaging Details : Standard Wooden Case for Export
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 Units/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-TBR

Detail Information

Name: Round Bottles Sticker Labeling Machine Application: Food, Medicine, Cosmetics, Daily Chemicals, Electronics, Hardware, Plastics And Other Industries
Available Product: Round Bottles Or Cans Function: Labeling
Label Gap: >5mm Label Type: Self-adhesive Labels, Self-adhesive Films, Electronic Supervision Codes, Barcodes
Label Qty: Single Side Label Position: Side
Speed: 60-100 Pcs/min Option: Coding, Printing...etc.
High Light:

high speed round bottle sticker labeling machine

,

60pcs min round bottle sticker labeling machine

,

100pcs min bottle label pasting machine

Product Description

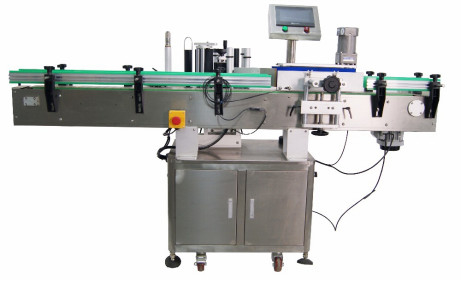

High Speed Round bottles Sticker Labeling Machine



  • Product Description

Round bottles Sticker Labeling Machine is a round bottle labeling machine suitable for pharmaceutical, food, daily chemical and other industries.
It is suitable for round bottle labeling in the pharmaceutical, food, daily chemical and other industries, and can be labeled with full-circle and half-circle labels. Optional automatic turntable bottle unscrambler, which can be directly connected to the front-end production line, and automatically feed bottles into the labeling machine to increase efficiency. The optional ribbon coding and labeling machine can print the production date and batch number online, reducing the bottle packaging process and improving production efficiency.

  • Technical Parameter



Model XQ-TBR
Driving mode Servo motor
Operation direction Left or right
Labeling speed 60—100pcs/min (Depending on product size and label length)
Suitable label Adhesive sticker, opaque label
Bottle diameter Φ20—130mm,, customized
Label height 20—180mm,, customized
Label length 30—400mm, customized
Labeling accuracy ±1mm(Not calculate the error of bottle and label)
Roll inner diameter 76mm
Roll outside diameter 380mm
Power supply 220V 50/60hz (Can be customized)
  • Product Features

◆ It has a wide range of applications, which can meet the full-circle labeling or half-circle labeling of round bottles, the labeling switch between bottles is simple, and the adjustment is convenient;
◆ The label has high coincidence, and the labeling belt adopts a deviation-correcting mechanism, the labeling belt does not deviate, and the labeling position can be adjusted in three directions of x/y/z and the inclination of a total of eight degrees of freedom, no dead angle in adjustment, and high label coincidence ;
◆ The labeling quality is excellent, and the elastic pressing belt is used to cover the label, and the labeling is smooth and wrinkle-free, which improves the packaging quality;
◆ Flexible application, bottle stand-up labeling, with automatic bottle separation function, can be produced by stand-alone machine or connected to assembly line production;
◆ Intelligent control, automatic photoelectric tracking, with no labeling, no label automatic calibration and label automatic detection function, to prevent missing stickers and label waste;
◆ High stability, advanced electronic control system composed of Panasonic PLC + Panasonic touch screen + Panasonic needle-shaped electric eye + German Leuze label electric eye, which supports the 7×24-hour operation of the equipment;
◆ Simple adjustment, the labeling speed, conveying speed and bottle dividing speed can realize stepless speed regulation, which can be adjusted according to needs;
◆ Sturdy and durable, the three-bar adjustment mechanism is adopted to make full use of the stability of the triangle, and the whole machine is sturdy and durable. Made of stainless steel and high-grade aluminum alloy, it meets GMP production requirements.
  • Product Samples

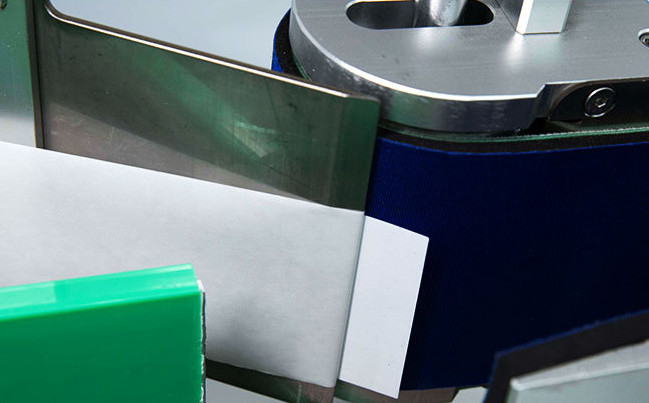

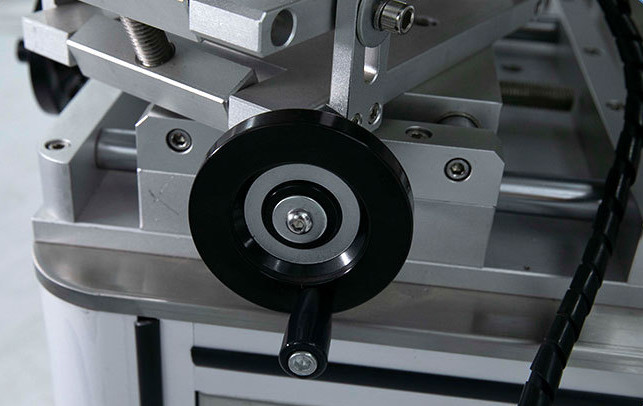

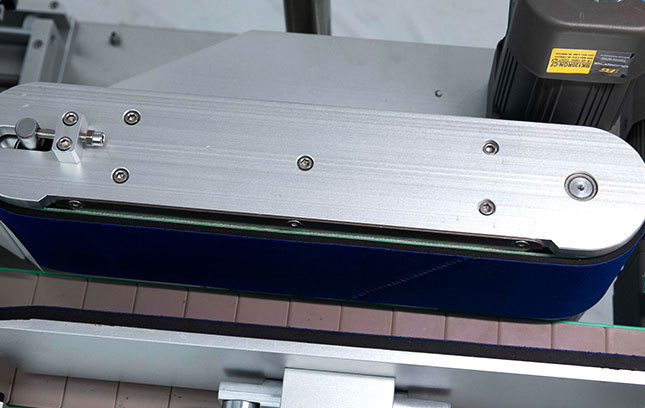

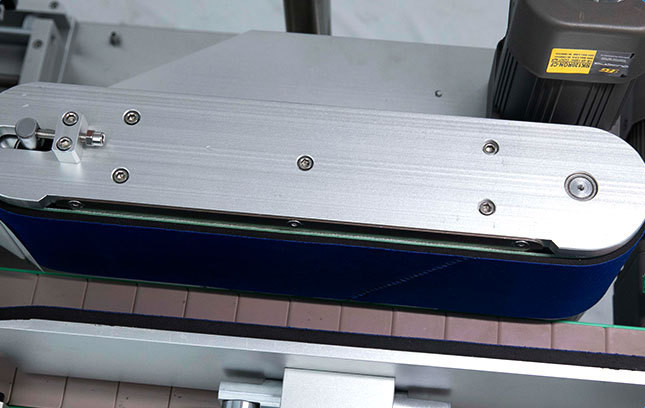

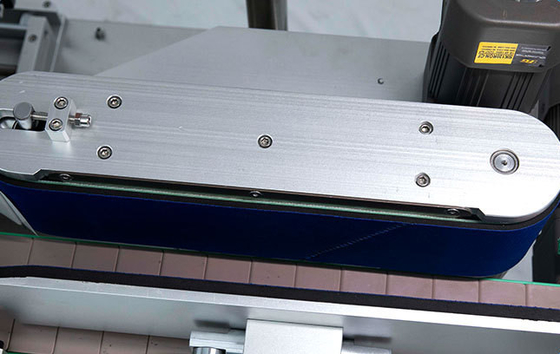

High Speed Round Bottle Sticker Labeling Machine 60-100pcs/Min Pasting 0
