Bottle Can Tray Shrink Wrapping Machine Sleeve Type Automatic
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 100 set/ month |
| Place of Origin: | Wuxi,China | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ- SF-3246 |
|
Detail Information |
|||
| Name: | Semi Auto L Type Shrink Wrapping Machine | Automatic Grade: | Semi Auto |
|---|---|---|---|
| Available Product: | Catons, Pouches, Bottles, Cans, Tubes, Bags Etc. | Speed: | 1-15 Pcs/min |
| Cut-seal Way: | L Cut | Cutter Driven Method: | Manual |
| Shrink Wap Effect: | Full-closed | Shrink Film: | POF、PP、PVC |
| Function: | For Single Wrap Or Bundle Wrap | Application: | Small Batch Production Of Products |
| High Light: | POF semi automatic shrink wrapper,PP semi automatic shrink wrapper,L shrink wrap tunnel machine |
||
Product Description

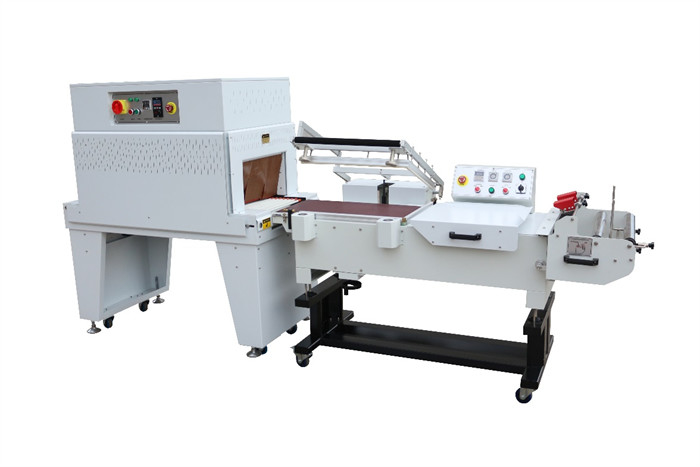

Semi Auto L type Shrink Wrapping Machine
This set of equipment is composed of XQ-SF-20LG Cut-seal Machine and XQ-SF-4525 Shrink tunnel. Manual cut by L cutter and then automatically transferred into shrink tunnel to complete the shrinking process.
Wide range of applications: widely used in biscuits, printed products, pharmaceuticals and flooring, pottery, packaging boxes and other packaging fields.
Good effect: suitable for sealing and cutting packaging of PVC, POF, PP, OPS, PET film, and the packaging is beautiful and generous.
Simple operation: only one person needs to operate, which is simple and convenient. The packaging speed is fast, which can greatly improve the work efficiency.
XQ-SF-20LG Cut-seal Machine
Seal knife size (mm) 550*450
Temperature (℃) 0 -300
Workbench height (mm) 750±25MM
Packing speed (pieces/min) 1-12 (according to product size)
Net weight of sealing and cutting machine (kg) 125
Sealing and cutting machine power (kw) 1
Dimensions of sealing and cutting machine (mm) length 1730*width 790*height 980
Power AC 220V 1/3PH 50/60HZ
External air source (kg/c㎡) 6-8
Suitable for shrink film POF film or cross-linked film
Shrink film thickness (mm) 0.0075-0.038
Load (kg) 30
Shrinkage ratio Horizontal 30-60% Vertical 20-75%
XQ-SF-4525 Shrink tunnel
Furnace size (mm) L1000*W450*H250
Temperature(℃) Air temperature-200
Workbench height (mm) 820±50MM
Packing speed (pieces/min) 1-20
Shrinking machine net weight (kg) 280
Shrinking machine power (kg) 7
Maximum packing size (mm) 200*150*100
Power 3PH 380V 50HZ
Suitable for shrink film POF or cross-linked film
Shrink film thickness (mm) 0.0075-0.025
Mechanical dimension (mm) L1300*W750*1600
This machine is composed of speed governor conveying, constant temperature heating and electromechanical integration.
The machine adopts automatic temperature control, constant temperature circulation of hot air, and air duct system is energy-saving and efficient.
Original digital display thermostat, the temperature is accurate, and the shrinkage temperature can be directly seen.
Conveying stepless speed regulation conveying is more stable, super large air volume cooling airflow, shrinking and shaping.
The constant temperature circulating air duct system makes the temperature in the shrinking warehouse more uniform, so that the shrinking products can achieve the best effect,
Using chain roller conveying can adopt conveying structure of different materials according to different products,
