Biscuits Cookie Carton Case Packer Machine 10pcs/Min Automated

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 Units two months
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZX550

Detail Information

Name: 3 In 1 Carton Case Packer Machine By Side Load For Cosmetics Automation: Automatic
Speed: 6-10pcs/min Available Carton Size: L250-550mm*W200-400mm*160-400mm
Available Product: Product In Cartons, Boxes Structure: All-in-one, Compact Type
Loading Type: Side-load, Side Push Sealing Type: Tape Or Hot Melt Glue
Voltage: 220/380v Application: Edible Oil, Chocolate, Biscuits, Instant Noodles, Coffee Tea, Potato Chips, Condiments, Dairy Products
High Light:

biscuits Carton Case Packer Machine

,

Cookie Carton Case Packer Machine

,

10pcs/min automated case packing

Product Description

3 in 1 carton case packer machine by side push for Cookie/ biscuits

  • Product description

3 in 1 carton case packer machine by side push is a fully automatic case packing equipment specially designed for boxed products. The front end of this equipment can be linked with shrink wrapping machine, high-speed labeling machines, or overwrapping machine. carton sealer and robot palletizer at the rear are linked to form an automatic secondary packaging production line; this machine calculates the products through the counting software in the early stage, and then arranges the products according to a certain stacking format, and then the product stack is pushed into carton from sidend then the turning mechanism rotates the carton to the right position and outputs it to the next station, and the packing is completed at this time.

This boxed product case packer machine is especially suitable for automatic packing of for Cookie, biscuits, medicine, food, daily chemicals, health products, electronics, tea, cosmetics and other industries. The packaging material can be boxed products with square shapes such as cartons and plastic boxes, with a processing capacity of 5-10 Cases (bags)/min.

Biscuits Cookie Carton Case Packer Machine 10pcs/Min Automated 0

  • Technical Parameter

Carton Size L 250-550mm* W200-400mm *H160-400mm
Speed 6-10cases/min,customized
Product input height 800±50mm
Product output height 800±50mm
Tape width W(48,60)mm×L(100m)
Compressed Air supply 5.5~6kg/cm²
Power supply 220v/380v 50/60HZ
Machine size L2300 mm ×W2000 mm ×H1900 mm
Machine weight 1500Kg





  • Working Principle

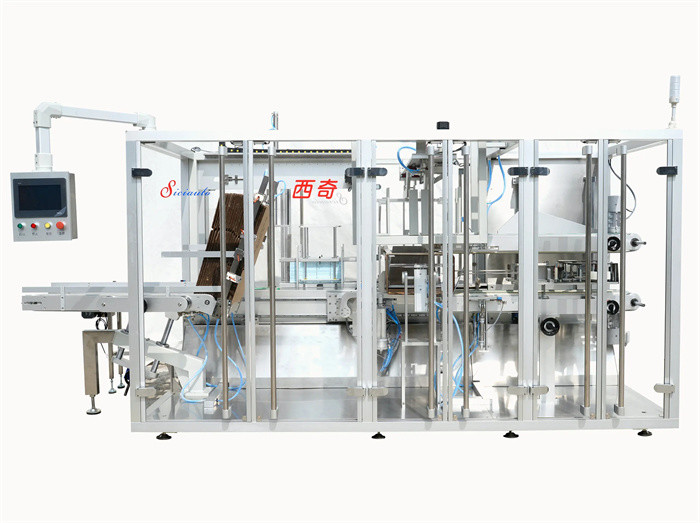

Biscuits Cookie Carton Case Packer Machine 10pcs/Min Automated 1



  • Product Features

* Material shortage protection to prevent accidental injury to the product;
*The machine arranges the products by sinking or lifting, and uses the horizontal push method to complete the specified packing action;
*PLC control, safe and stable, servo-driven, accurate and efficient, no loss in packing;

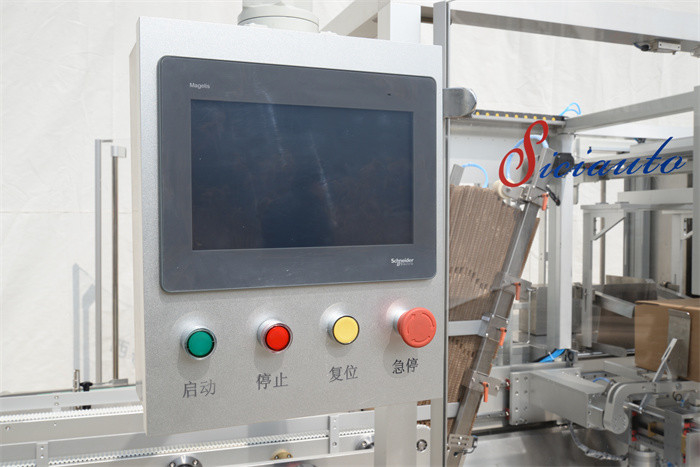

*Digital human-machine interface, one-key operation to change equipment parameters, easy to operate;
*The equipment is equipped with a transparent safety door, which can monitor the operation of the equipment at any time. In addition, a door-opening shutdown system is designed to ensure safe operation;
*Quickly adjust the size according to packing requirements. Adapt to different sizes of packing;
*The equipment has strong applicability and can be compatible with different products or products in different arrangements. One machine is multi-purpose and suitable for enterprises with multiple product types;
*The equipment can automatically achieve hierarchical grouping and arrangement of products according to the customer's packing arrangement requirements, without manual labor, and with a high degree of automation;
*The equipment absorbs international advanced technology, according to the boxed products, innovative design, and the selection of imported parts and electrical components, the equipment performance is stable.
*Using this boxed product cartoning machine can improve the efficiency of enterprise packaging by 30%, save more than 5 people, greatly save costs and improve corporate profits;

  • Sample Product

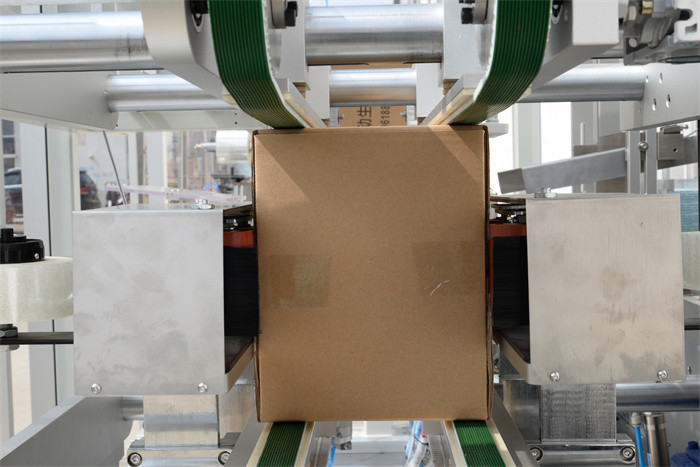

Biscuits Cookie Carton Case Packer Machine 10pcs/Min Automated 2



Biscuits Cookie Carton Case Packer Machine 10pcs/Min Automated 3
