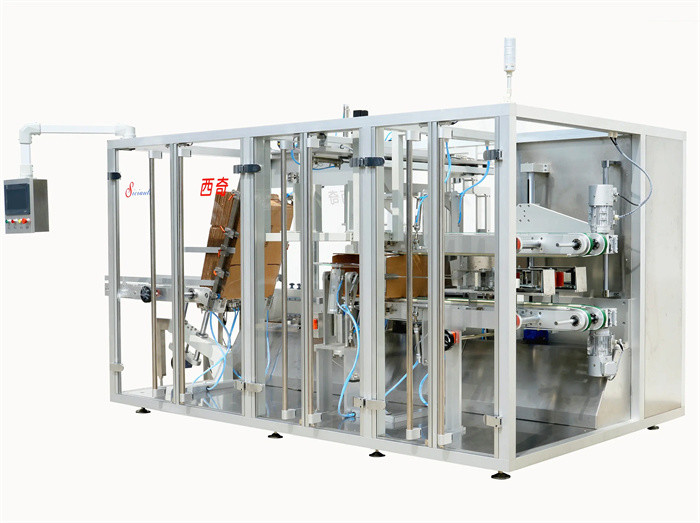

Horizontal Side Load Carton Case Packer Machine Automatic Horizontal

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 Units two months
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZX550

Detail Information

Name: Horizontal Carton Case Packer Machine Automation: Automatic
Speed: 1-10pcs/min Available Carton Size: L250-550mm*W200-400mm*160-400mm
Available Product: Product In Cartons, Boxes Structure: All-in-one
Loading Type: Side-load Sealing Type: Tape
Voltage: 220/380v Application: Costmectis Like Mask, Face Cream,lotion, And Pharma, Food Product
High Light:

Horizontal Carton Case Packer Machine

,

side load Carton Case Packer Machine

,

Automatic horizontal case packer

Product Description

Horizontal carton case packer machine by side load for carton box



  • Product description

Horizontal carton case packer machine is a machine tha integrates unpacking, packing and sealing, also known as three-in-one case packing machine; According to the customer's packing arrangement requirements, the products can be automatically arranged in layers and groups in required format, and the side openings of the carton can be automatically opened and positioned before products are side-pused into the carton to ensure that the packing is fast and stable.

Horizontal Side Load Carton Case Packer Machine Automatic Horizontal 0

  • Technical Parameter

Carton Size L 250-550mm* W200-400mm *H160-400mm
Speed 6-10cases/min,customized
Product input height 800±50mm
Product output height 800±50mm
Tape width W(48,60)mm×L(100m)
Compressed Air supply 5.5~6kg/cm²
Power supply 220v/380v 50/60HZ
Machine size L2300 mm ×W2000 mm ×H1900 mm
Machine weight 1500Kg





  • Working Principle

Horizontal Side Load Carton Case Packer Machine Automatic Horizontal 1



  • Product Features
  1. Intelligent synchronous servo technology ensures stable unpacking.
  2. It can meet various specifications and realize automatic unpacking, packing and sealing in the same station;
  3. Servo-controlled unpacking system, fast and intuitive specification adjustment instructions, solve the problems of large footprint and high labor intensity of conventional case packing machines;
  4. This machine can use tape sealing or hot melt sealing according to customer requirements:

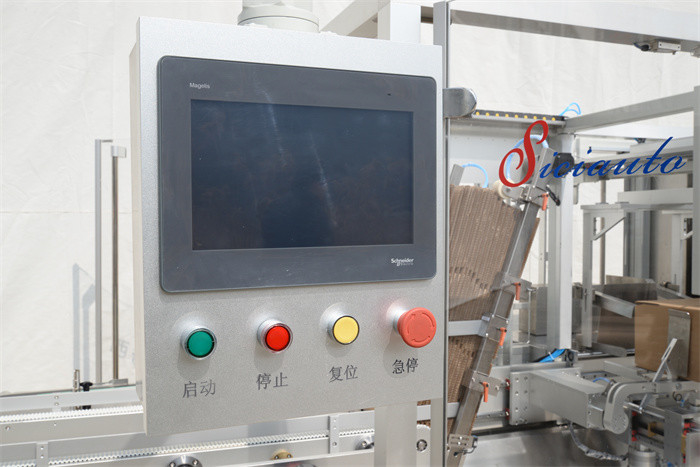

  5. Adopting PLC control, the touch screen can prompt the fault point and troubleshoot easily, which is the main development direction of the packing industry in the future: window-style design of automatic packing machine, modular concept design can be expanded at any time: complete and reliable whole system, no Material alarm, door open alarm, fault alarm;
  6. It is used as ancillary equipment for food, medicine, paper, cosmetics, health care products, hardware and other production lines to complete the packing process of the production line.
  • Sample Product

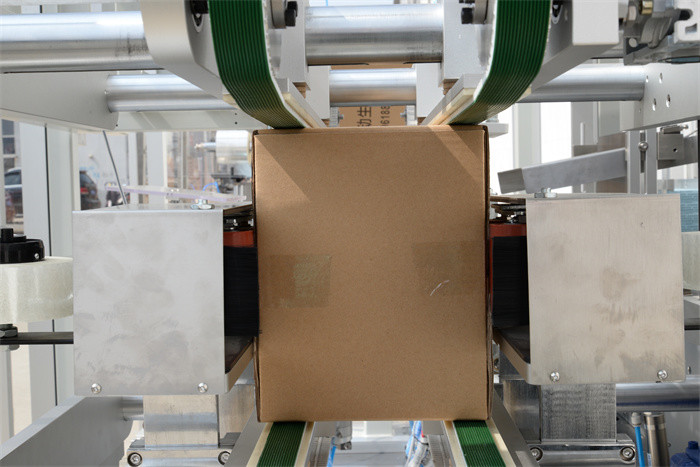

Horizontal Side Load Carton Case Packer Machine Automatic Horizontal 2
