8 Cases/Min Cosmetics Carton Case Packer Machine 220v Side Load
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Minimum Order Quantity : | 1 Unit | Packaging Details : | Wooden Case |
---|---|---|---|
Delivery Time : | 60 work days | Payment Terms : | T/T |
Supply Ability : | 100 Units two months |
Place of Origin: | Wuxi,China | Brand Name: | SICI AUTO |
---|---|---|---|
Certification: | CE | Model Number: | XQ-ZX550W |
Detail Information |
|||
Name: | Wrap Around Case Packer | Automation: | Automatic |
---|---|---|---|
Available Carton Size: | L250-550mm*W200-400mm*160-400mm | Speed: | 1-20 Cases/min |
Available Product: | Product In Cartons, Pouches, Standup Pouches, Bags | Structure: | All-in-one |
Loading Type: | Wrap Around | Sealing Type: | Hot Melt Glue |
Voltage: | 220/380v | Application: | Food, Beverage, Cosmetic, Personal Care Etc. |
High Light: | wrap around Carton Case Packer Machine,hot melt glue Carton Case Packer Machine,20 cases/min pouch case packer |
Product Description

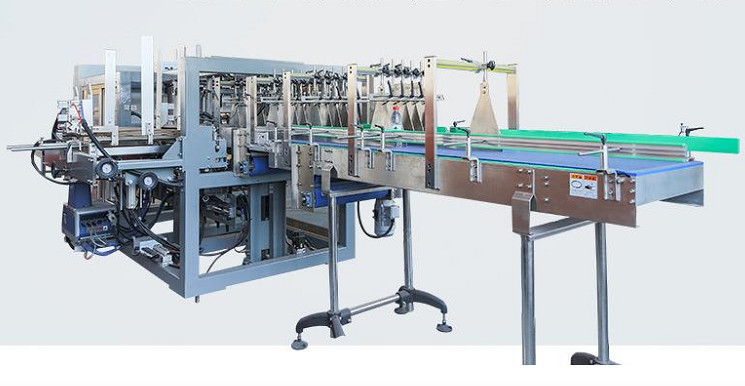

Wrap around case packer for cartons/ stand-up pouches
It is One-piece wrap-around case packer, used for packing cartons, pouches, standup pouches, bags into carton boxes in a certain arrangement and quantity, and close or seal the openings of the carton boxes by gluing.
This machine is suitable for product in cartons, pouches, standup pouches, bags for Food, beverage, cosmetic, personal care etc.
Model | XQ-ZX550W |
Packing Size | L 250-400mm; W 150-350mm; 80-300mm; Customized |
Production Capacity | 15-20 cartons/min. |
Glue consumption | ≤4g/carton |
Melting temperature | 170℃±5℃ |
Solidify time | 1.5S-2.5S |
Total Power | 12KW |
Working Voltage | 220v/380v 50/60HZ |
Air pressure source supply | 5.5~6kg/cm2 |
Machine Dimensions | L5620 mm ×W3040 mm ×H1735 mm, depend on customized |
N.W | 1000KG, depend on customized |
Note: For Customized product, all data above are for reference only, the final data are subject to actual demand. |
Use a single piece of cardboard to wrap the box, reduce the link of box making and unpacking, and save the cost of box making and unpacking equipment
2. Compared with the traditional carton, it can save about 20% of the carton area and save the cost of raw materials
3. According to the customer's packing arrangement requirements, the products are automatically arranged and combined without manual operation, saving costs and improving work efficiency
4. Wide range of application, can meet various specifications of product packing
5. Using Nordson hot melt glue machine from the United States to spray glue and seal the box, the sealing and bonding are stable, and the downtime caused by the quality problem of the hot melt glue machine is reduced.
6. Control mode: PLC + touch screen + standard control button + signal switch, divided into automatic/manual control mode, flexible operation
7. The fault point can be found through the touch screen, and the fault can be easily eliminated

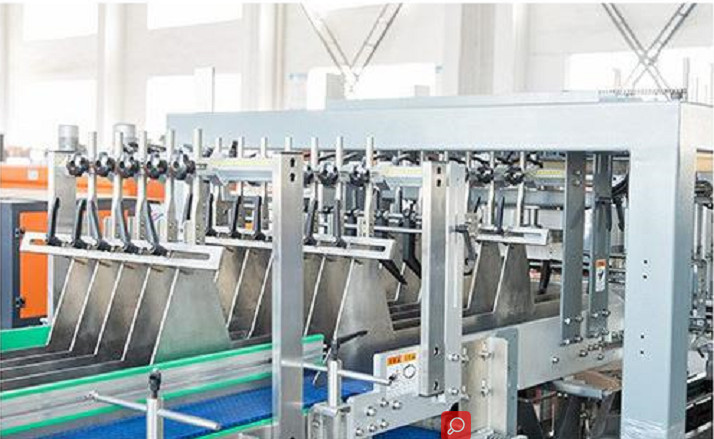

According to the customer's packing arrangement requirements, the products are automatically arranged and combined
