Fully automatic vertical carton case packer

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 Units two months
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZX650L

Detail Information

Name: Fully Automatic Vertical Carton Case Packer Automation: Automatic
Speed: 1-10 Cases/min Available Carton Size: L250-550mm*W200-400mm*160-400mm
Available Product: Product In Cartons, Pouches, Standup Pouches, Bags Structure: All-in-one
Loading Type: Top-load, Vertical Type Sealing Type: Tape
Voltage: 220/380v Application: Food, Beverage, Stationery, Pharma, Cosmetics
High Light:

automatic Carton Case Packer Machine

,

pouches Carton Case Packer Machine

,

vertical carton packer

Product Description

Fully automatic vertical carton case packer



  • Product description

Vertical Case packer, is a packaging machine that used to load cases vertically with products, all process automatically finished in one machine like open case, products loading, top-bottom sealing with tape. If you need to pack products quickly, a case packer is definitely something that your business should consider. It is wildly used in cosmetics, medicine, healthcare, commodity, etc.



It  is designed to pick up product from an infeed conveyor and insert, by a vertical movement into American cases. Vertical case packing is the preferred choice for unstable products that have higher chances of slipping.



Widely used in product in cartons, pouches, standup pouches, bags for Food, beverage, Stationery, Pharma, Cosmetics industires. etc.

  • Technical Parameter



Model XQ-VC550
Packing Size (300-550) mm × (200-400) mm × (200-400) mm
Production Capacity 1-9 case / min, depend on loading layers per case
Total Power 14kw
Working Voltage 220/380 V 50/60hz
Applicable Tape Width 48/60 mm
Compressed Air 0.6-0.8Mpa
Control System Siemens
Machine Weight 1700kg
Machine Dimensions 4416 (mm) × 2060 (mm) × 1800 (mm)

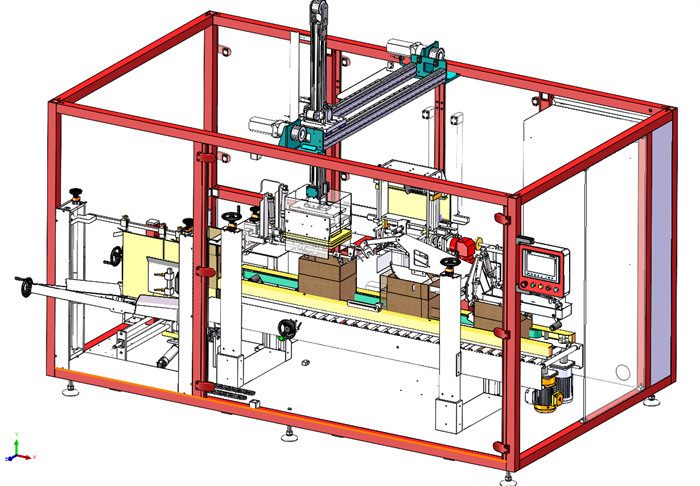

  • Working Principle

Fully automatic vertical carton case packer 0

Fully automatic vertical carton case packer 1



  • Product Features

•Economical packing machine for small batch packaging

•High efficiency vertical-loading technology
•GMP-compliant packer
•Small caster design and compact structure
•High flexibility, can be applied to a variety of different specifications of packaging
•High accuracy, product handling and stacking at the highest safety level
•High reliability, special box grabbing technology
•Intelligent synchronous servo technology ensures stable unpacking
