CPP OPP Candy Pillow Pack Machine Chocolate Automatic Filling 25-180pcs/Min With Ink Jet Printer

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-SZ180

Detail Information

Name: Automatic Pillow Type Packing Machine Speed: 25-180 Bags/min
Pouch Size: (130-350)*(50-200)*(3-70) Mm Film Thickness: 40-70 Micro
Film Width: ≤400mm Voltage: 220v
Power: 5.5kw Optional: Ink-jet Printer, Air Charging System
Available Film: OPP/CPP/PE Application: Chocolate, Biscuits, Moon Cake
High Light:

CPP candy pillow pack machine


OPP candy pillow pack machine


chocolate automatic pillow filling machine

Product Description

Automatic Candies Pillow Type Packing Machine 25-180pcs/min with Ink-jet Printer


Introduction of Pillow Type Packing Machine


Pillow packing machine or horizontal packing machine is a kind of automatic pouch packing machine. It has a quite wide range of applications and it is suitable for various food and non-food products, such as chocolate, bread, biscuit, face mask, fruits, vegetables, etc.


Technical Parameter


Item Remark
Packaging film OPP/CPP/PE etc.; must used in roll, outer diameter≤300mm, inner diameter is 75mm, the surface of the film must be unknit, no wave on the edge of the film, the color mark must evidently different to the color of the film.
Model SZ100, SZ120, SZ160, SZ180
Bag size (130-350)*(50-200)*(3-70) mm (L*W*H)
Speed 25-180 bag/min
Film thickness 40-70 micro
Max film width 400MM
Max outer diameter 300MM
Voltage 220V, 50HZ
Power 5.5KW
Machine size 4000*950*1600 mm(L*W*H)


Pillow Type Packing Machine Features

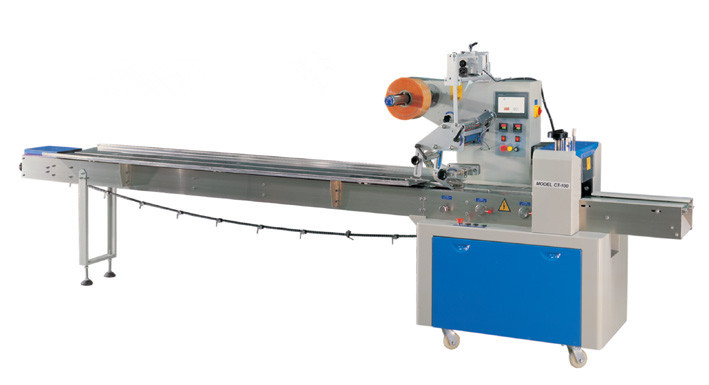

Model: XQ-SZ180 Pillow type packing machine


A) Range of Packing: Applicable for packing various solid regular objects.

  • Food: instant noodles, biscuits, chocolates, candies, ice-cream and etc;
  • Chemistry: adhesive tapes, soaps, medicines, cartons, trays and etc;
  • Hotel commodity: facial tissues, knives and folks, shoe brushes, disposable toothpastes and toothbrushes.

B) Features:

① The key parts of machine are adopted of stainless steel, in accordance with food QS and medicine GMP health requirements.

② Dual variable frequency control, packing goods faster, convenient with superior quality.

③ High sensitive electronic eye tracing system, after setting, the machine is no need to adjust by hand, the cutting position is accuracy, the seal is firm and beauty.

④ Temperature is controlled by PID intelligence independently and steadily which is more suitable to various packaging material.

⑤ Color touch-screen display, machine can be turned off by position, fault is self-diagnosed, fault is display clearly.

⑥ Counting automatically, packaging production’s counting is accuracy.

⑦ Machine’s design and the convey system is simple; the work is more reliable which is more convenience to maintain.
