Bottle Can Tray Shrink Wrapping Machine Sleeve Type Automatic
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Price : | USD 5000-50000/set |
|---|---|---|---|
| Packaging Details : | Wooden Case | Delivery Time : | 30 work days |
| Payment Terms : | T/T | Supply Ability : | 10 set/ month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-SW450A-ST500 |
|
Detail Information |
|||
| Volatge: | 220V/380V | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Driven Type: | Electric |
| Packing Type: | Wooden Case | Power: | 13.5kw |
| High Light: | L automated shrink wrap machines,220v automated shrink wrap machines,380v tunnel wrapping machine |
||
Product Description
Technical Parameter
| Technical Parameter | ||
| Model | XQ-SW450A | XQ-ST500 |
| Max Packing Size |
(L+H)≤500 mm (W+H)≤430 mm (H)≤130 mm |
(L)700x(W)450x(H)250 mm |
| Max Sealing Size | (L)550x(W)450 mm | (L)1200x(W)500x(H)300 mm |
| Packing Speed | 15-30 pcs/min | 30-50 pcs/min |
| Power Supply | 220V/50Hz 1.3kw | 380V/50Hz 12kw |
| Compressed Air | 5.5 kg/cm³ | / |
| Machine Weight | 300kgs | 220kgs |
| Machine Size | (L)1850x(W)1000x(H)1600 mm | (L)1350x(W)750x(H)1500 mm |
It is a automatic L type shrink wrapping machine to shrink wrap your single or bundle products with shink film. The shrink wrapping machine is widly used for irregular shaped or big products. When you use the right shrink wrapping machine, your goods will be securely wrapped to prevent damage from dirt, dust, and moisture.
Product Introduction

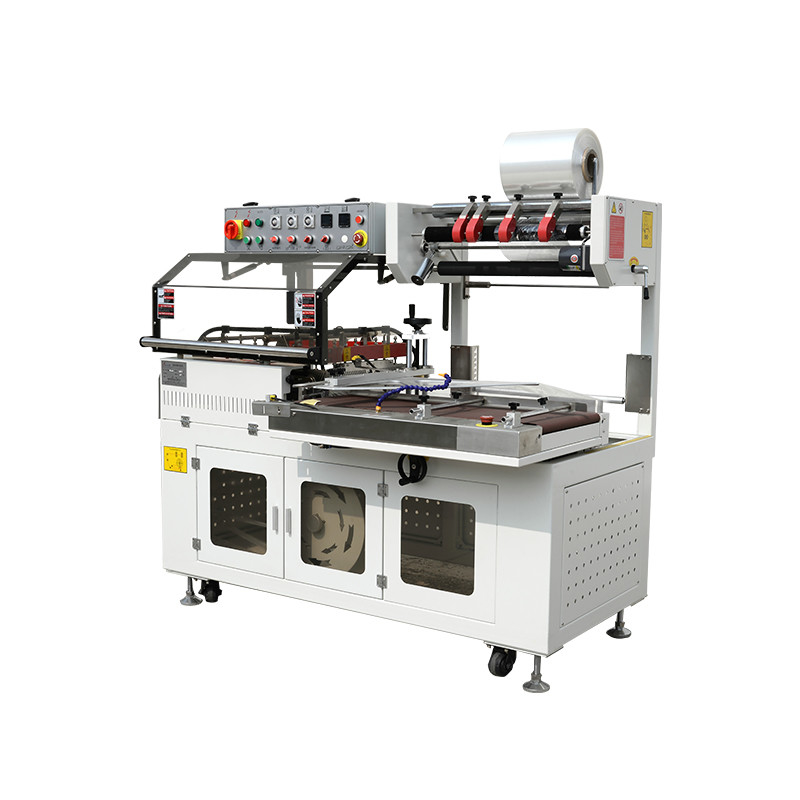

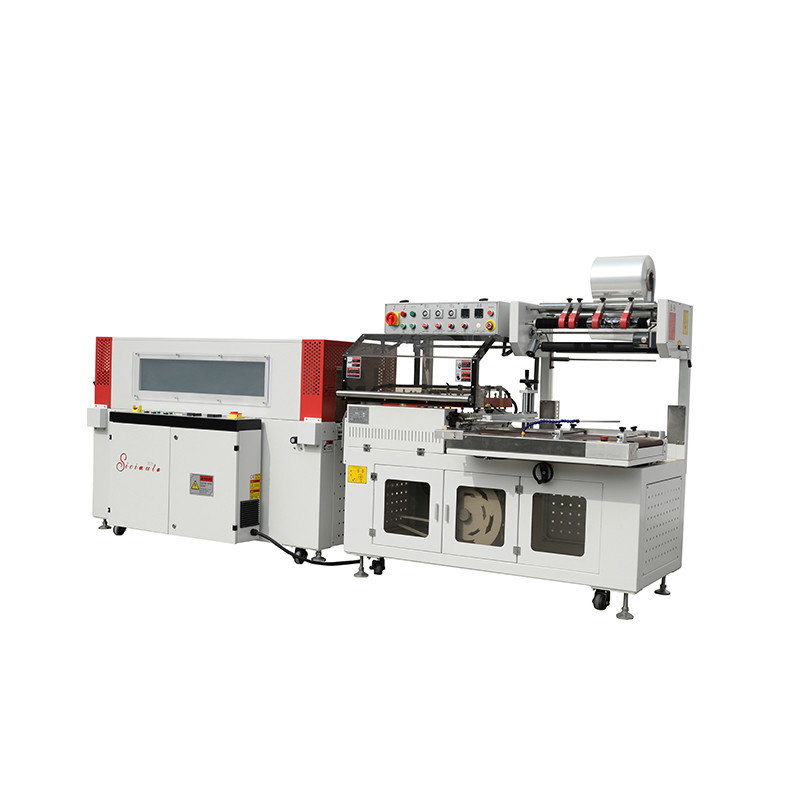

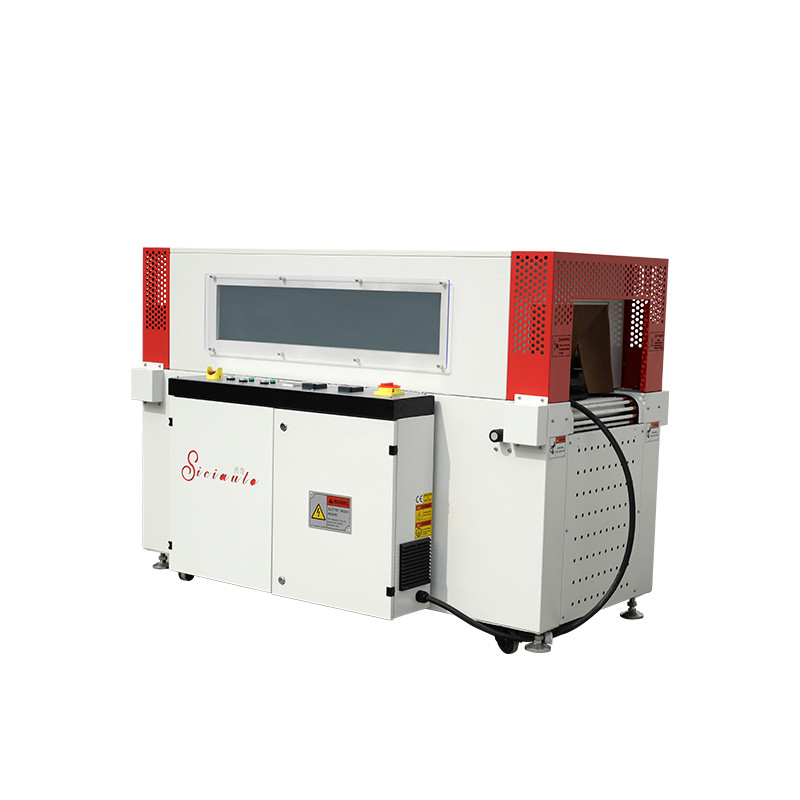

Model:XQ-SW450A+ST500 Automatic Shrink Wrapping Machine
1.High temperature and sticky free L bar sealing knife.
2.Sealing action without smoking and burned. Sealed part is tidy and clean.
3.Covering teflon on the sealing knife.
4.After sealing action, packing product go in the shrink tunnel automatically by the conveyor belt.
5.Conveyor belt is adjustable on the high by a hand wheel.
6.Manual/auto switch. When choose auto function.
7.Double electromagnets make stronger pressure.
8.Adjustable film layer with needle device, it is able to fit different size film, max 550mm.
9.Sealing knife has hot protection device on.
PACKAGING
Film wrapped inside and standard export wooden case packing outside.
