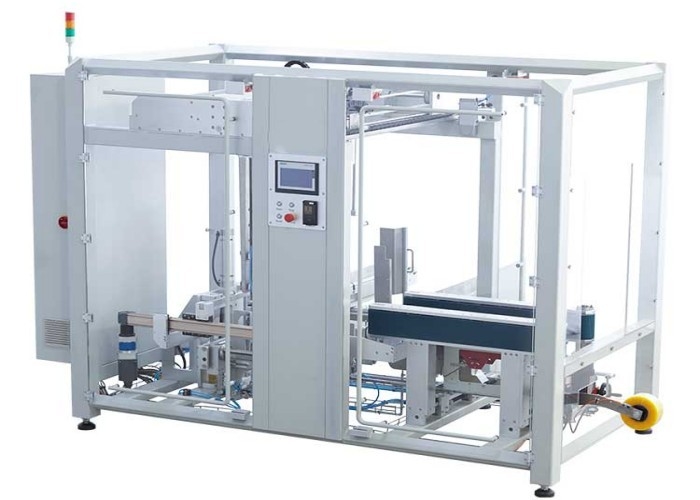

Servo Vertical Carton Erector Machine Electronics Compact Case Erector

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-KX-45

Detail Information

Name: Servo Vertical Carton Erector Machine Adhesive Tape Width: 48mm, 60mm, 72mm
Sealing Type: Tape Speed: 20ctn/min
Power: 3kW Voltage: 380V 50Hz
Available Dimension: Length:250-600mm Width:180-450mm Height:150-500mm Application: Electronics, Daily Chemical, Cosmetics
Tape Diameter: Max 250mm Machine Dimension: L3000mm × W2600mm × H2000mm
High Light:

servo Carton Erector Machine


vertical Carton Erector Machine


Electronics compact case erector

Product Description

High Speed Servo Vertical Carton Erector Machine for Electronics


Carton Erector Machine Introduction


The high-speed servo vertical case erector is designed for high-demand cartons. The machine adopts electric eye automatic induction, servo control, and adopts drive design to ensure that the four sides of the carton can be accurately grasped and formed by suction cups, so that the four corners of the carton can be accurately grasped. At 90 degrees, the servo controls the entire storage.


Technical Parameter


Speed 20ctns/min
Carton size Length:250-600mm Width:180-450mm Height:150-500mm
Power supply 380V/50Hz
Power 3KW
Air supply 6kg/cm2
Air interface 1/2inch
Tape size 48mm, 60mm, 72mm(choice one size)
Tape diameter Max 250mm
Air consumption 300NL/min
Table size 600~650mm
Machine size L3000mm × W2600mm × H2000mm
Weight 1050kg

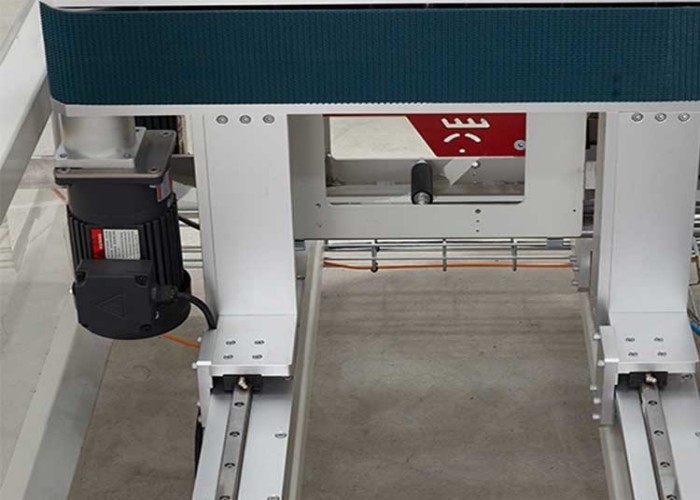

Machine Principle


Servo Vertical Carton Erector Machine Electronics Compact Case Erector 0


Carton Erector Machine Features

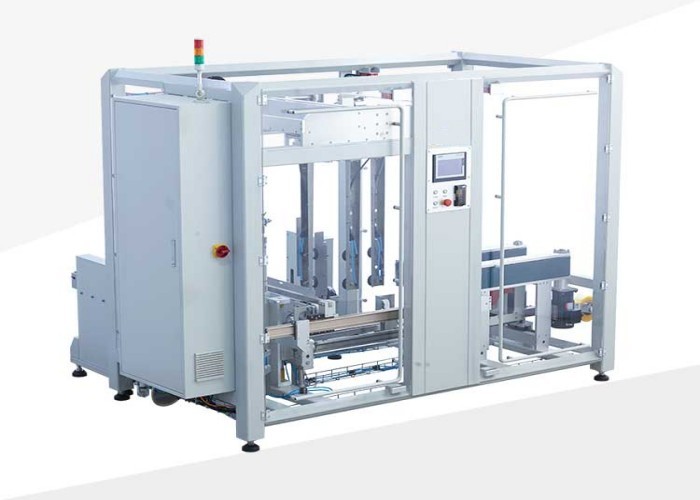

Model: XQ-KX-45  High Speed Servo Vertical Carton Erector Machine for Electronics

  • Efficient forming: 90° box shape, fast and stable, even if the carton is wrinkled or not, it can be formed.
  • Protection: Double safety circuit design, the whole machine stops when opening the door or pressing E-stop, in line with CE standards.
  • High stability: The entrainment adopts large-area flexible clamping, the box does not jump, and no pressure plate is required
  • High speed: The new type of lead is adopted, and the belt speed is 50 m/min.
  • Ergonomic Aesthetics: Horizontal storage box with open and sliding design, it is more convenient to add boxes.
  • Easy to operate: user-friendly operation interface and flexible data storage, easy to find
