8-12 Pcs/Min Carton Erecting Machine Vertical Case For E-Business

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-FX-128

Detail Information

Name: Carton Erector Machine For E-business Structure: Vertical
Sealing Type: Adhesive Tape Speed: 8-12pcs/min
Power: 240w Voltage: 220v
Available Dimension: L150-500mm, W200-500mm, H320-650mm Application: Toys, Food, Perfume
High Light:

12 pcs min carton erecting machine


8 pcs min carton erecting machine


vertical case erector machines

Product Description

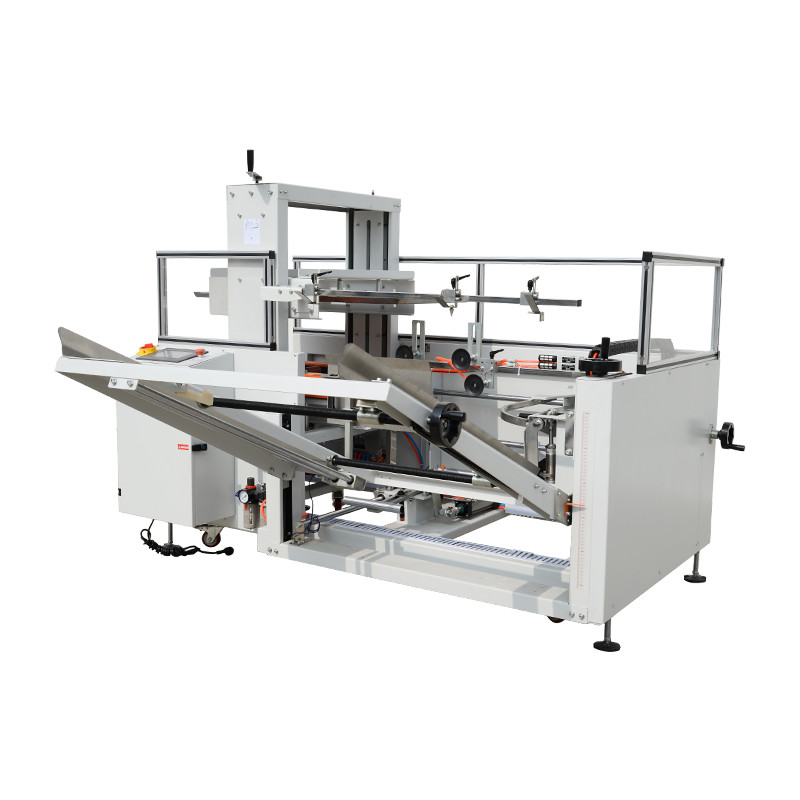

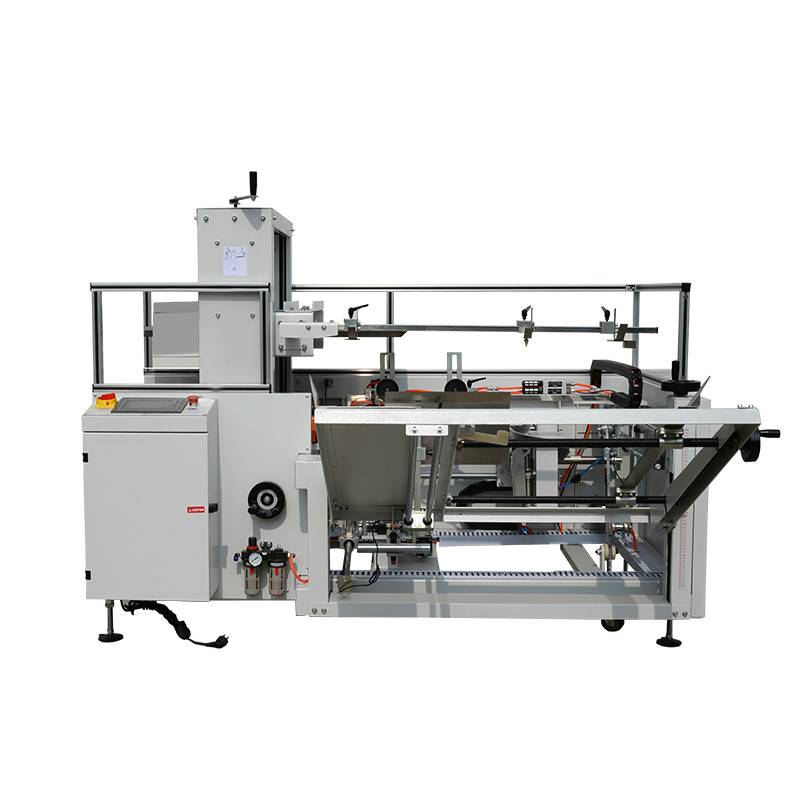

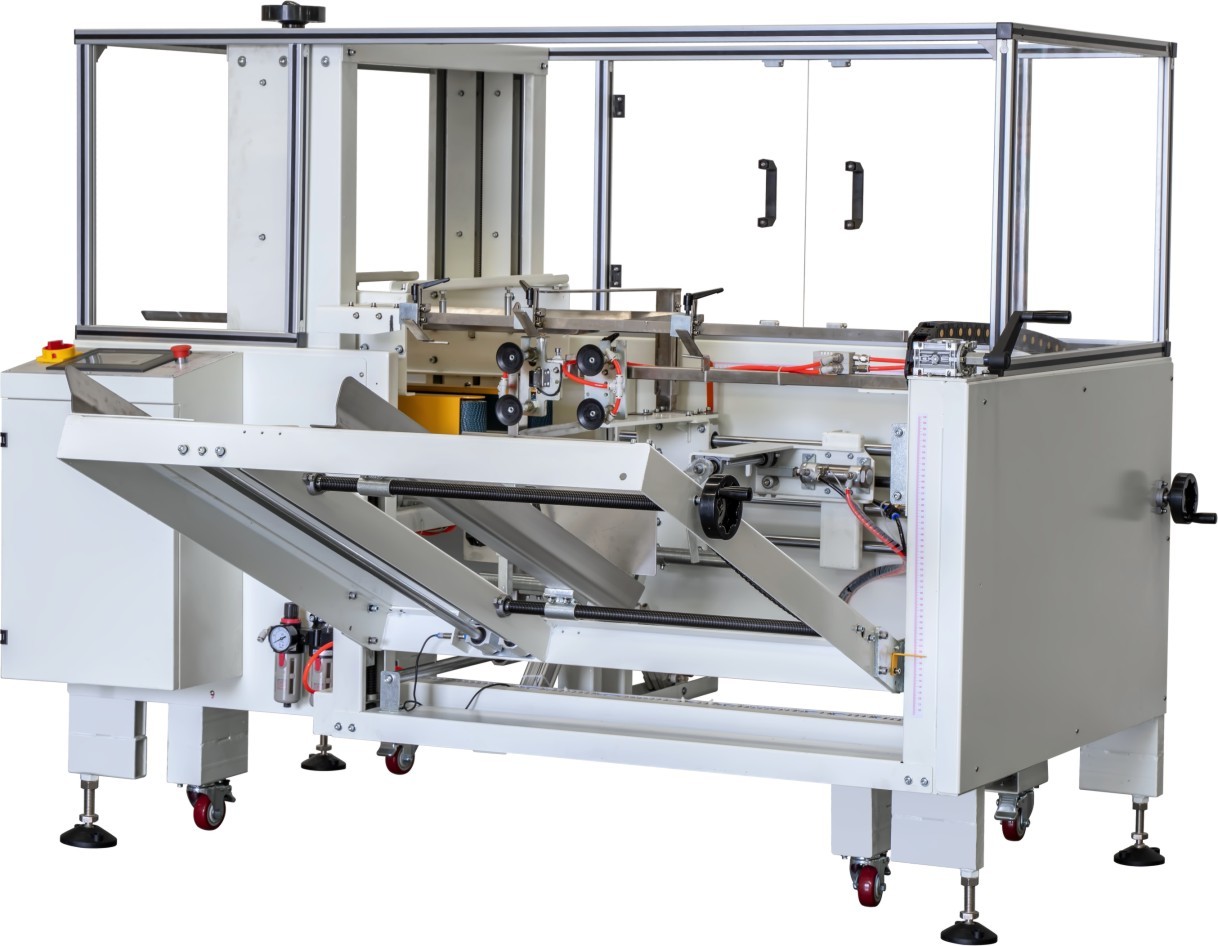

Automatic Vertical Carton Erector Machine 8-12pcs/min for E-business


Product Introduction of Carton Erector


Carton erector/unpacking machine as a member of the packaging industry, in this industry has been widely used and popular, enterprises want to speed up production, unpacking machine is essential, and unpacking machine is very suitable for the whole automatic packaging line, on the basis of cost saving will not cause a little extra waste.


Technical Parameter


Model XQ-FX-128
Applicable carton size(L*W*H) (150-500)*(200-500)*(30-650)mm(Can be customized)
Conveying speed 20 m / min
Equipment size 2070mm(L)*2040mm(W)*1470mm(H)
working speed 8-12 boxes/min,depend on carton size
Power supply 220/380V 50Hz(Alternative use)
Apply pressure 6kgf/cm²
Tape width 48/60/75mm(Alternative use)
Equipment weight 500kg
Machine Dimensions 1900 (mm) × 950 (mm) × 1200 (mm)



Machine Principle


8-12 Pcs/Min Carton Erecting Machine Vertical Case For E-Business 0


Carton Direction


8-12 Pcs/Min Carton Erecting Machine Vertical Case For E-Business 1

Carton Erector Features

Model: XQ-FX-128 Carton Erector Machine

1. This equipment works as an stand-alone operation, automatic suction box, folding, bottom sealing tape, all is completed at once time.

2. Stick with a solid performance and precision, smooth operation, long life and good stability.

3. Standard equipment specifications is as below, customized is available according to customer’s need for carton size.

4. The use of advanced technology manufacturing, durable structure, preferably with high-quality electronic and pneumatic components.

8-12 Pcs/Min Carton Erecting Machine Vertical Case For E-Business 2
