Horizontal Cosmetics Folding Carton Erector 30 Carton/Min Equipment
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 50 set/ month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-KX-500 |
|
Detail Information |
|||
| Name: | Carton Erector Machine For Big Carton | Adhesive Tape Width: | 48/65-72mm, 2inchs, 3inchs |
|---|---|---|---|
| Sealing Type: | Adhesive Tape | Speed: | 15ctn/min |
| Power: | 240w | Voltage: | 110/220V 50/60Hz Single Phase |
| Available Dimension: | Length: 145-280mm Width: 80-200mm Height: 100-200mm | Application: | Medicine, E-commerce |
| Carton Storage Quantity: | 80-100pcs (1000mm) | Machine Dimension: | L2350×W2100×H1650mm |
| High Light: | big carton box erector machine,food carton box erector machine,15 carton min carton box erector |
||
Product Description

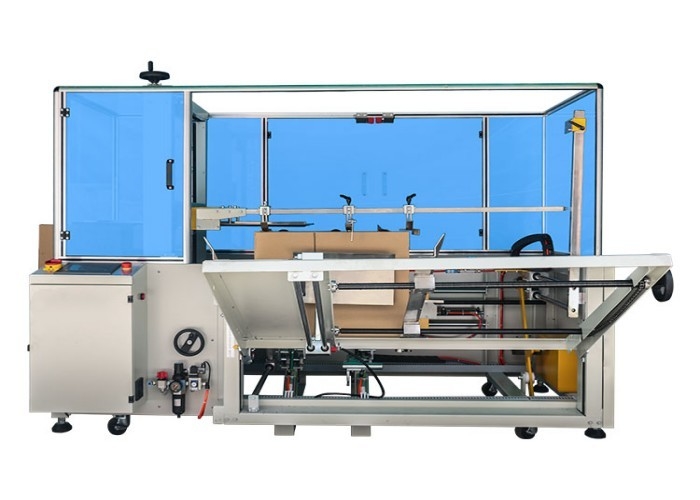

XQ-KX-500 Food Industry Carton Erector Machine for Big Carton
Carton Erector Machine Introduction
This machine adopts PLC+ man-machine interface control. The carton can be automatically folded and sealed during transportation, and it does not stop during the folding process. That is to say, this machine can complete the whole process of suction box, forming, folding and back cover at the same time. Simple operation, simple maintenance and stable performance.
Technical Parameter
| MODEL | XQ-KX-500 |
|---|---|
| Carton Opening Speed | 8-10ctns/min |
| Carton Size | L320-650xW200-500xH150-500mm |
| Power Supply | 110/220V 50/60Hz 1 Phase |
| Power | 240W |
| Adhesive Tape Width | 48/65-72mm(Choose one type) 2inch,3inch |
| Carton Storage Quantity | 80-100pcs (1000mm) |
| Air Consumption | 500NL/min |
| Air Compressing | 6kg/cm³ |
| Table Height | 620+30 mm |
| Machine dimension | L2350×W2100×H1650mm |
| Machine Weight | 500KG |
Carton Direction
Model: XQ-KX-500 Food Industry Carton Erector Machine for Big Carton
1. Durable parts and electrical components are used, the accessories have stable performance, strict structural design, and no vibration during operation.

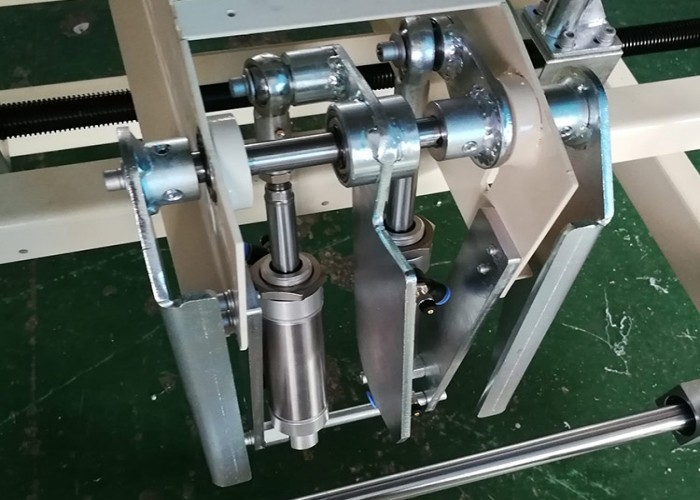

2. The slot fixing bracket adopts the push box plate automatic buckle to lock the slot plate, which is convenient for users to use.
3. The total length of the whole machine is 2350mm, and the floor area is smaller than that of similar products. Similar products on the market are relatively large in shape, with a length of more than 3600mm and a large area.
4. Tens of thousands of aging tests to ensure that every detail is more stable, the failure rate is low, safe production, and high efficiency.
