Horizontal Cosmetics Folding Carton Erector 30 Carton/Min Equipment

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-KX-430

Detail Information

Name: Horizontal Carton Erector Machine Adhesive Tape Width: 48/ 60mm, 2 Inches, 2.5 Inches
Sealing Type: Tape Speed: 30ctn/min
Power: 1000W Voltage: 220V 50Hz Single Phase
Available Dimension: L240-510xW190-400xH120-400mm (220≤W/2+H≤570, L+W≤870) Application: Electronics, Daily Chemical, Medicine
Carton Storage Quantity: 80pcs (800mm) Machine Dimension: L2120xW1410xH1900mm
High Light:

Horizontal folding carton erector


Cosmetics folding carton erector


30 carton min case erector equipment

Product Description

Horizontal High Speed Cosmetics Carton Erector Machine 30ctn/min


Carton Erector Machine Introduction


The machine is easy to operate and adjust, and is widely used in warehousing, e-commerce, printing, color boxes, greeting cards, photo albums, photo frames, medicine, electronics, daily chemicals, cosmetics, auto parts, hardware, food and other mass production industries.


Technical Parameter


Carton Opening Speed 30ctns/min
Carton Size L240-510xW190-400xH120-400mm (220≤W/2+H≤570, L+W≤870)
Power Supply 220V 50HZ 1 Phase
Power 1000W
Adhesive Tape Width 48/ 60mm (Choose one type) 2 inch ,2.5 inch
Carton Storage Quantity 80pcs (800mm)
Air Consumption 300NL/min
Air Compressing 6kg/cm³
Table Height 960-1000mm
Machine dimension L2120xW1410xH1900mm
Machine Weight 1000KG

Machine Principle

Horizontal Cosmetics Folding Carton Erector 30 Carton/Min Equipment 0


Carton Erector Machine Features

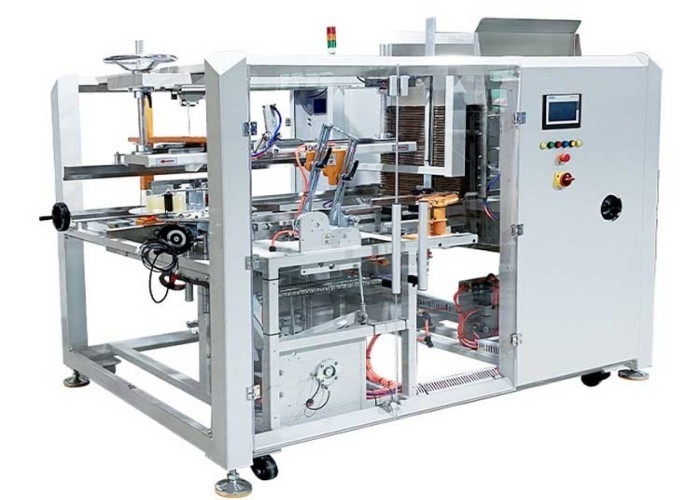

Model: XQ-KX-430 Horizontal High Speed Cosmetics Carton Erector Machine 30ctn/min

  • Available in many sizes of cartons: minimum size is 240mm.
  • Folding mechanism: It adopts double-link and double-swing arms, and the front and rear cover folding mechanism is designed, which is fast in forming, light in action and high in efficiency.
  • Human-machine interface: Siemens touch screen and simple operation interface are selected, which are easy to understand and facilitate the operator to input data and adjust.
  • Carton forming mechanism: Due to the lightness and thinness of the carton, the carton forming mechanism adopts the design of suction cups and imitation manipulators, which is convenient and requires less force, which improves the efficiency of the rapid forming of the carton in the process.
