Continuous 180 Pcs/Min Cartoner Packaging Machine Tablet Board Box Packing Machine Automatic

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 50 work days Payment Terms : T/T
Supply Ability : 30 set/ two months
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZH180

Detail Information

Name: Tablet Board Box Packing Machine Feeding Mode: Automatic
Available Product: Tablet/capsule Board/sachet/pouch Sealing Type: Tuck In
Speed: 180pcs/min Power: 7.6kw
Voltage: 380v Available Carton Size: (78-170) *(33-100) *(15-90) Mm Can Be Customized
Optional: Leaflet Device, Rotating Table Application: Oral Liquid, Penicillin Bottle
High Light:

180 pcs min Cartoner Packaging Machine

,

Continuous Cartoner Packaging Machine

,

tablet board box packing machine automatic

Product Description

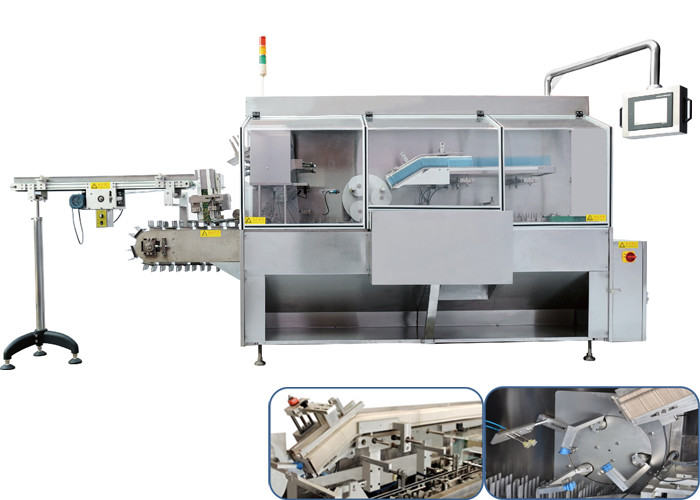

Continuous 180pcs/min Tablet Board Cartoner Packaging Machine Box Packing Machine



Cartoning Machine Introduction



Horizontal Continuous Cartoning Machine are high speed machines, with entirely automated functions. Multiple arm vacuum pickup ensures continuous & smooth operation with minimal human interaction. It has very fast speed, it’s more suitable for pharmaceutical factory which has high requirements with speed, it can reach about 180-200pcs/min.



Technical Parameter



Model XQ-ZH180
Box Quality Requirement 300-350g/m²
Dimension Range (78-170)*(33-100)*(15-90)mm (can be customized)
Max speed 180pcs / min
Total Power 7.6kw
Working Voltage 380V 50Hz
Compressed Air Working Pressure 0.6-0.8Mpa
Air Consumption 0.6-1m³/h
Machine Weight 2000kg
Machine Dimensions 4040 (mm) × 1450 (mm) × 1800 (mm)



Machine Principle



Continuous 180 Pcs/Min Cartoner Packaging Machine Tablet Board Box Packing Machine Automatic 0



Cartoning Machine Features



Model:XQ-ZH180 Continuous 180pcs/min Tablet Board Cartoner Packaging Machine Box Packing Machine

1 Follow GMP balcony type structure design.
2 Unique three-star wheel continuous suction box with pre-opening function.
3 Central type carton size adjustment design, with digital auxiliary display.
4 Lengthened cartons feeding conveyor belt, reduce cartons loading times
5 Adjust on machine when change size, don't need to change mould.
6 Automatic detection and overload safety protection system, manual or carton short of material alarm, stop and fault display
7 High speed is widely used for pharmaceutical factory



Samples

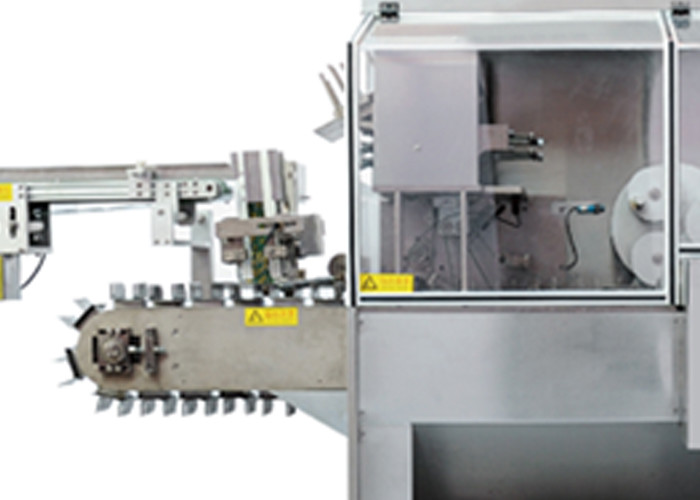

Continuous 180 Pcs/Min Cartoner Packaging Machine Tablet Board Box Packing Machine Automatic 1
