Horizontal Lotion Automatic Cartoner Packaging Machine 30-65pcs/min with Liner

Product Description

Horizontal Lotion Automatic Cartoner Packaging Machine 30-65pcs/min with Liner

Product Introduction of Cartoning Machine

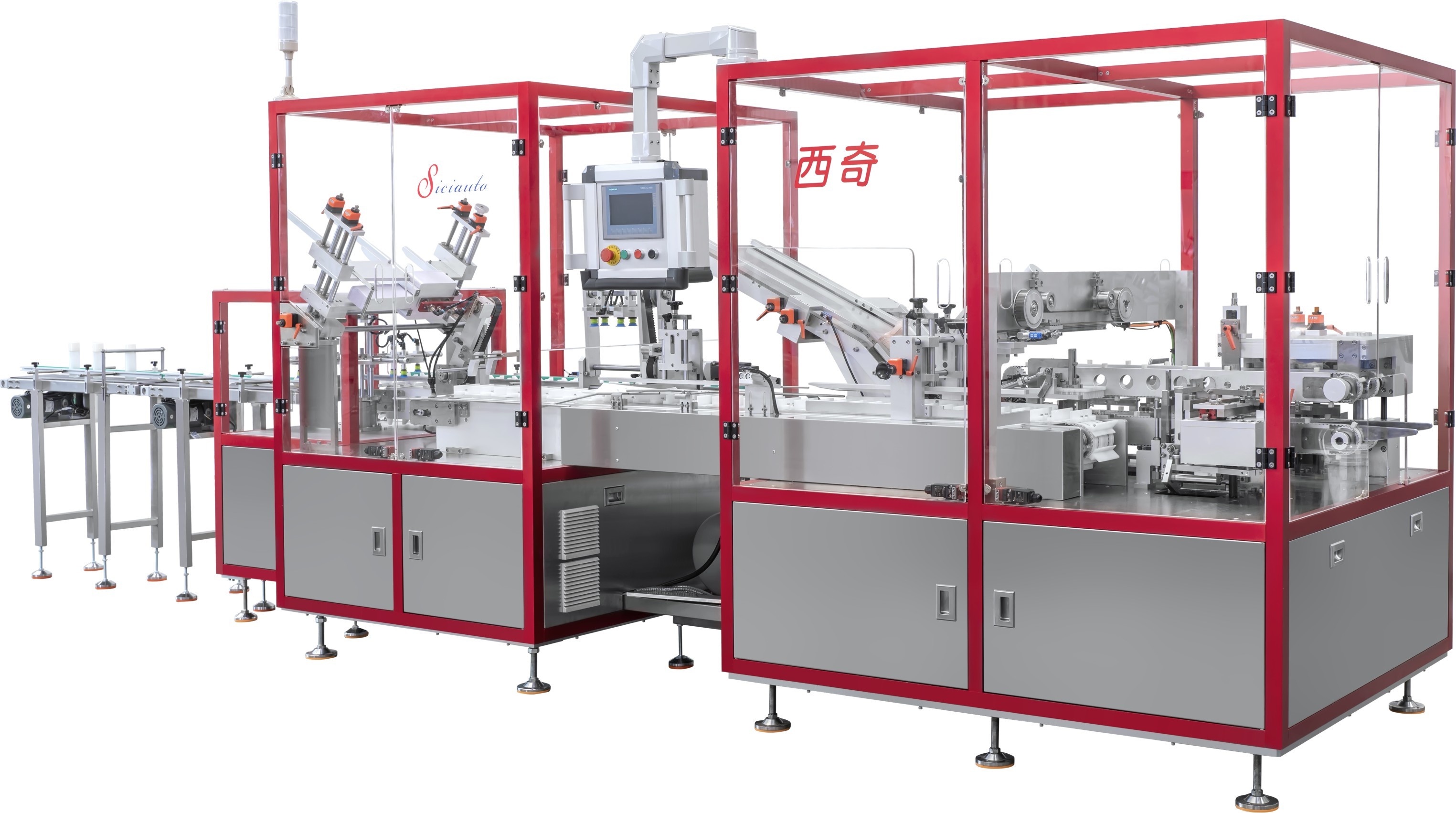

XQ-TZ-120 lined cartoning machine is a new product developed by our company, with High production efficiency, covering small area, light weight, and wide application range. It can be work as a stand-alone machine or a on-line machine, such as the machine can be connected with filling machine, and overwrapping machine as a packing line to get a best packaging effect.

It can meet the national drug production quality management standard —— "GMP" standard

Technical Parameter

Machine Principle

Cartoning Machine Features

Model:XQ-TZ-120 Horizontal Lotion Automatic Cartoner Packaging Machine 30-65pcs/min with Liner

1. It has Several patents.

Patent 1: The whole machine transmission principle and appearance patent;

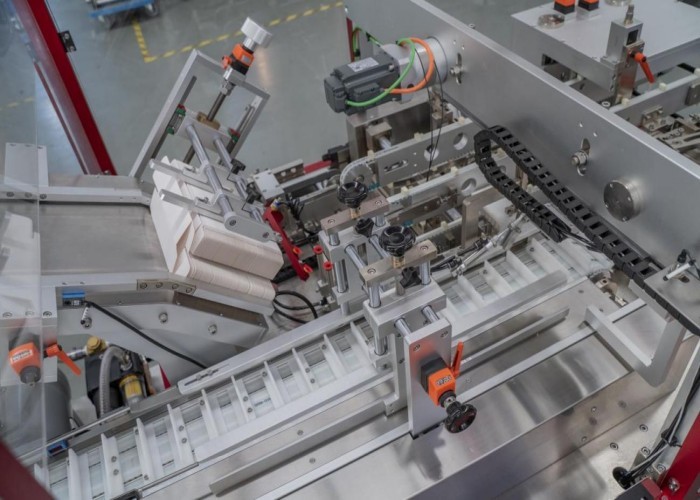

Patent 2: The non-destructive box-opening mechanism opens the product carton using a multi-angle active mechanical action to open the box and send the opened carton to the transporting station. The original structure is a passive carton opening, and the surface of the carton is scratched;

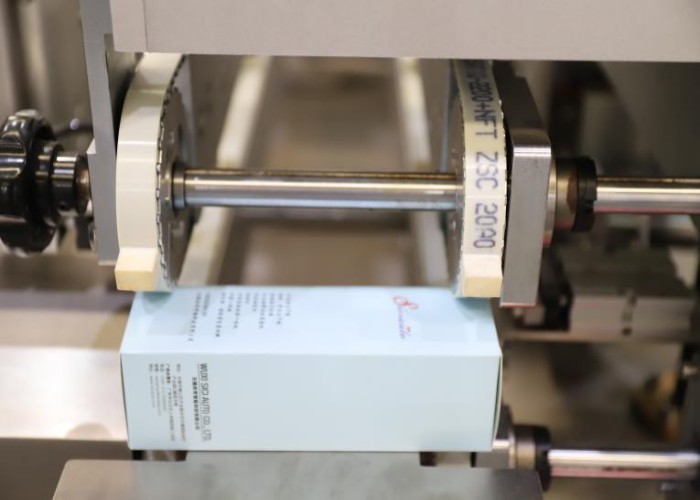

Patent 3: The non-damaged box transport mechanism adopts the mechanical cam linkage transport mode, the contact surface with the carton is made of polyurethane material synchronous belt, and the active synchronous transport box can effectively protect the carton surface without scratches;

Patent 4: Folding, closing box linkage mechanism, the mechanism adopts mechanical cam linkage transmission mode, the whole structure is compact and easy to adjust

Patent 5: The push-bag-in-box mechanism adopts a mechanical linkage push-in-box mechanism, and the position of the push-bag can be adjusted accurately; the adjustable position of the whole machine is equipped with a digital display

Patent 6: Pushing the bag into the box mechanism, using a mechanical linkage pushing the bag into the box mechanism, the position of the bag is accurately adjustable; the adjustable position of the whole machine is equipped with a digital display;
