30-100pcs/Min Bottle Cartoning Machine , 1.5kw Pharmaceutical Cartoning Machine

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 50 work days Payment Terms : T/T
Supply Ability : 30 set/ two months
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZH100

Detail Information

Name: Multi-function Cartoner Packaging Machine Sealing Type: Tuck In
Feeding Mode: Automatic Speed: 30-100pcs/min
Available Product: Bottle Power: 1.5kw
Voltage: 220/380v Available Carton Size: (70-200)mm×(35-120)mm×(14-70)mm
Optional: Leaflet Device, Automatic Feeding Device, Rotating Table Application: Tablet, Capsule
High Light:

30pcs min bottle cartoning machine

,

100pcs min bottle cartoning machine

,

1.5kw pharmaceutical cartoning machine

Product Description

Horizontal Toothpaste Cartoner Packaging Machine 70-100pcs/min for Tube

Multi-Function Tablet Bottle Cartoner Packaging Machine 30-100pcs/min for Medical Bottle

Cartoner Packaging Machine Introduction



The equipment is developed by SICI AUTO combining advanced technology at home and abroad, which is a high-tech product integrating light, electricity, gas and machinery. Thus, the equipment performance and work efficiency have been greatly improved, to achieve the requirements of fast packing, and still maintain a stable and reliable state during fast operation.



This machine is suitable for automatic feeding and packing of bottle (round bottle, square bottle). On-line automatic bottle finishing and conveying, manual folding (1 to 4 times folding) and transmission, manual detection, carton suction forming and transmission, material into the box, embossing batch number, paper tongue packaging at both ends of the carton (also applicable to hot melt adhesive), missing material removal and finished product output and other whole processes are automatic completion.



Technical Parameter



Model XQ-ZH100



Box

Quality Requirement 300-450g/m2
Dimension Range (70-200)mm×(35-120)mm×(14-70)mm
Production Capacity 30-100pcs / min
Total Power 1.5kw
Working Voltage 220V/380V 50Hz
Instruction Leaflet Size Quality Requirement 60-70g/m²
Unfolded Dimension (80-250)mm×(90-170)mm
Folded Dimension 1-4 folded
Compressed Air Working Pressure ≥0.5Mpa
Air Consumption 120-160L/min
Machine Weight 1300kg
Machine Dimensions 4300mm×1300mm×1900mm



Machine Principle

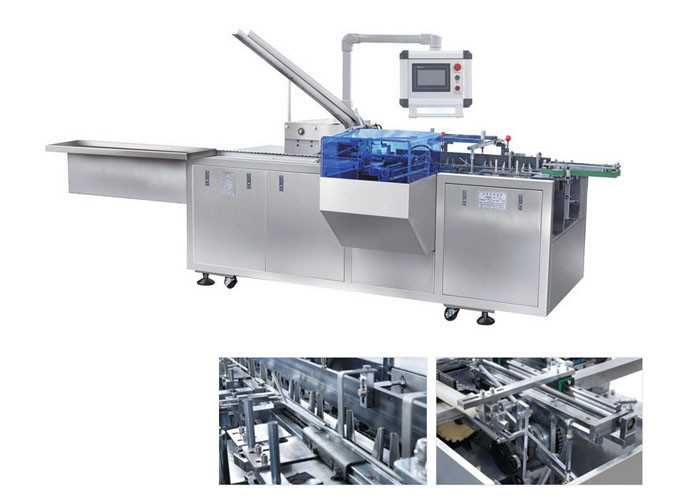

30-100pcs/Min Bottle Cartoning Machine , 1.5kw Pharmaceutical Cartoning Machine 0



Cartoning Machine Features



Model:XQ-ZH100 Multi-Function Tablet Bottle Cartoner Packaging Machine 30-100pcs/min for Medical Bottle



Performance and Features



■PLC automatic control system, frequency conversion speed control, electrical components are all international famous brands.



■ Man-machine interface operating system.



■ Mechanical overload automatic shutdown.



■ Automatic elimination of the lack of packaging and instructions of the carton.



■ Fault display, alarm and finished product count.



■ Stable performance, easy to understand operation.



Samples

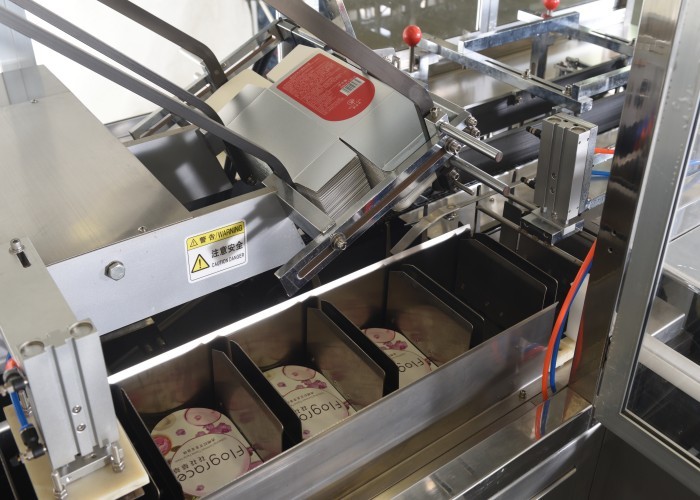

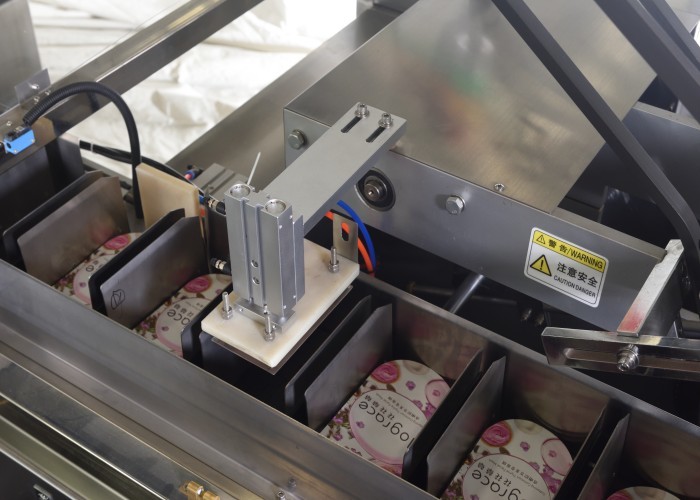

30-100pcs/Min Bottle Cartoning Machine , 1.5kw Pharmaceutical Cartoning Machine 1
