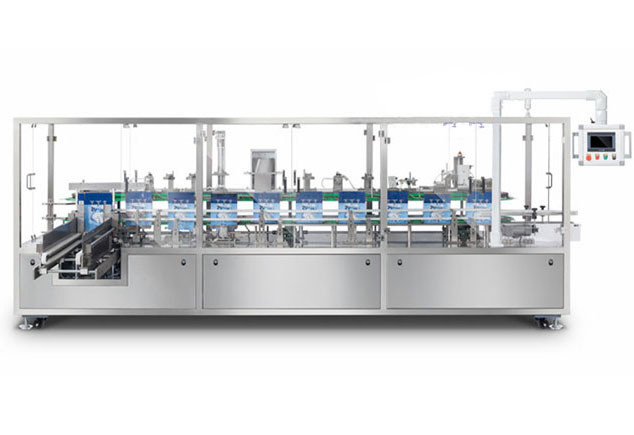

60-80pcs/Min Cardboard Box Packaging Machine Perfume Vertical Cartoning With Liner

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 50 work days Payment Terms : T/T
Supply Ability : 30 set/month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-VC160

Detail Information

Name: Skin Care Cartoning Machine Feeding Mode: Semi Automatic
Available Product: Bottle/pouch Sealing Type: Tuck In
Speed: 60-80pcs/min Power: 3kw
Voltage: 380v Available Carton Size: (30*40*80)-(120*85*240)mm
Optional: Ink-jet Printer, Leaflet Device Application: Essential Oil, Lipstick, Lotion, Calcium Tablet
High Light:

60pcs min cardboard box packaging machine


80pcs min cardboard box packaging machine


perfume vertical cartoning machine

Product Description

Perfume Box with Liner Cartoner Packaging Machine 60-80pcs/min Box Packing Machine


Vertical Cartoning Machine Introduction


XQ-VC160 vertical box packing machine is a vertical continuous motion for cardboard packaging machine, which may be adjusted according to different pre-folded and pre-cut boxes with reverse or direct baffle.


The vertical cartoning machine/box packing machine manufactured by SICIAUTO picks a single piece from a stack of folded cartons. Further, it fills it with the product or multiple products in a vertical direction through the open end and seals the flaps of the carton by tucking an end flap of the carton or putting on glue or adhesive.


Technical Parameter


Model XQ-VC160
Production Capacity 60-80 pcs/min
Available Box Dimension (30*40*80)-(120*85*240)mm
Box Requirements 250-400 g/㎡
Power 3.2kw
Voltage 380V 50HZ
Compressed Air 0.6 mpa
Air Consumption

5 Nm³/ h

Machine Size 4115*1350*1800 mm


Machine Principle

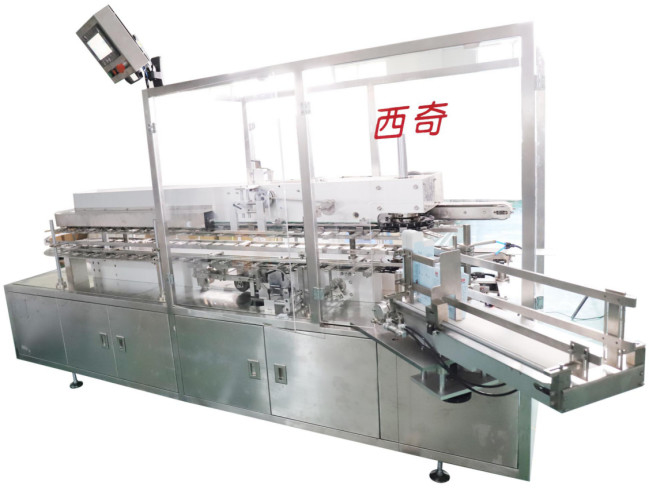

60-80pcs/Min Cardboard Box Packaging Machine Perfume Vertical Cartoning With Liner 0


The cartons are placed vertically in the feeding box, from where they are automatically removed. They are then sucked up by vacuum pipettes (siphon cups). The removed cartons are placed in the middle of the 4-claw guide of the conveyor chain. From this point on, the cartons will follow the next command in different steps:


- close the upper side, lower baffle;

- open side, higher baffle;

(allow easy introduction of the items in the carton);

- mark a batch number (high or low) on the main baffle;

Step 3 close the bottom of the carton:

1. Pre-shaping,

2. Close,

3. Fold.

- manually placing the product by 2 or 4 operators;

- close the upper outer side, upper baffle;

-3 steps to close the top of the carton as before;

- output enclosed cartons between 2 side felt conveyor belts.


Cartoning Machine Features


Model:XQ-VC160 Perfume Box with Liner Cartoner Packaging Machine 60-80pcs/min Box Packing Machine

  • The electronic installation is in current safe mode.
  • The painted lid provides lower protection.
  • The upper part is double secured under altuglass protection.
  • The equipped safe door can protect workers safety
  • The workers position can be customized
