Pharma Cosmetics Top Loading Case Packer , Grab Type Vertical Case Packer

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 Units two months
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZX400L

Detail Information

Name: Vertical Carton Case Packer Machine Automation: Automatic
Speed: 1-10 Cases/min Available Carton Size: L250-550mm*W200-400mm*160-400mm
Available Product: Plastic Flat Bottles, Round Bottles, Special-shaped Bottles, Glass Bottle Boxes Structure: Split Type
Loading Type: Top Load, Grab Type Sealing Type: Tape
Voltage: 220/380v Application: Stationery, Pharma, Costmetics, Personal Care, Health Care Etc.
High Light:

Pharma top loading case packer


Cosmetics top loading case packer


grab type vertical case packer

Product Description

Vertical Carton Case Packer Machine Case packing system line

  • Product description

This equipment is an intelligent grab-type cartoning machine. It uses high-speed dispensing device to pack various containers, and can pack plastic flat bottles, round bottles, special-shaped bottles, and glass bottle boxes of various sizes.
●Clamp the bottle body (1-4 boxes at a time) by the bottle clamp (built-in rubber to prevent damage to the bottle body), put it into the opened carton, when the gripping head is lifted, the carton is discharged and sent to the sealing machine (This packing method also applies to other products such as boxes).
●This machine adopts Mitsubishi PLC + touch screen control. Equipped with safety devices such as material shortage alarm and shutdown, no material without packing and other safety devices.
●This equipment greatly facilitates operation and management, reduces production personnel and labor intensity, and is an essential equipment for automated large-scale production.
●All electrical components are selected from international brands, and the performance of the whole machine is stable and reliable.
●Fast packing speed, suitable for large-volume, high-speed assembly line automatic packing operations.

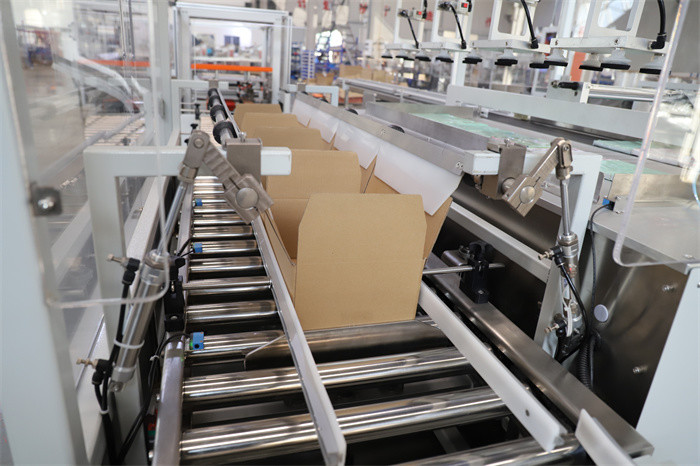

Pharma Cosmetics Top Loading Case Packer , Grab Type Vertical Case Packer 0

  • Technical Parameter
Model XQ-ZX400L
Packing Size L 250-550mm; W 150-400mm; 150-400mm; Customized
Production Capacity Max. 6 downloads/carton, and loading 4 cartons at the same time per minute.
Product loading method Top-loading
Total Power 2.3KW
Working Voltage 380V/ 50Hz
Air pressure source supply 5.5~6kg/cm2
Machine Dimensions L2130 mm ×W2050 mm ×H3200 mm. depend on customized
N.W 1000KG, depend on customized
Note: For Customized product, all data above are for reference only, the final data are subject to actual demand.
  • Working Principle

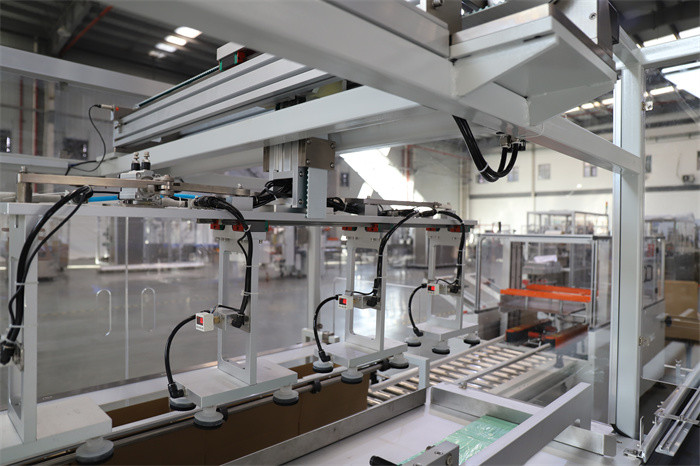

Pharma Cosmetics Top Loading Case Packer , Grab Type Vertical Case Packer 1


  • Product Features

●The main production cartoning machine runs smoothly and reliably, the packaging effect is firm and beautiful, and the configuration is high. The main components are selected from international famous brand equipment, which is easy to operate and easy to maintain.
●Automatic control: The control system is the guarantee for the normal operation of all functions, as well as the automatic protection for failures and accidents.
●Adopt oil-free pneumatic components, with low noise and no oil pollution.
●Especially suitable for use with packaging line, easy to move.
●It has a wide range of applications, and it adopts multiple sets of box bottom positioning and blocking devices, which can be applied to packing a variety of products.
●Adopt frequency conversion speed regulation and PLC control technology, combined with man-machine interface, easy operation and high degree of automation.
●According to the packing requirements, the products can be automatically arranged and arranged, the movements are coordinated, the movement is stable and accurate
●It is equipped with a safety device that alarms and stops when there is no bottle.

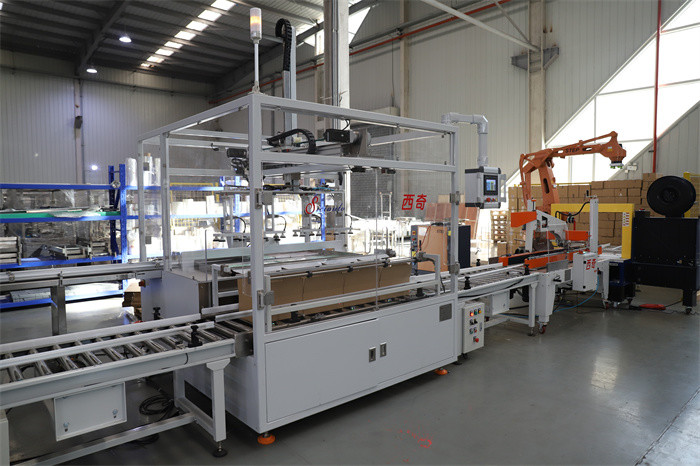

Pharma Cosmetics Top Loading Case Packer , Grab Type Vertical Case Packer 2
