1-6 Case/Min Wrap Around Carton Packer Automatic Bag Case Packer

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 Units two months
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZX550W

Detail Information

Name: Wrap Around Case Packer Automation: Automatic
Speed: 1-6 Cases/min Available Carton Size: L250-550mm*W200-400mm*160-400mm
Available Product: Product In Bottles Structure: All-in-one
Loading Type: Wrap Around Sealing Type: Hot Melt Glue
Voltage: 220/380v Application: Food, Beverage, Bottled Beer, Liquor, Beverage, Dairy, Sauce...etc.
High Light:

1 case min wrap around carton packer

,

6 case min wrap around carton packer

,

automatic bag case packer

Product Description

Bottles Wrap around case packer

  • Product description

It is One-piece wrap-around case packer, used for packing the caned or bottled products into carton boxes in a certain arrangement and quantity, and close or seal the openings of the carton boxes by gluing.
This machine is suitable for canned or bottled beer, liquor, beverage, dairy, sauce...etc.

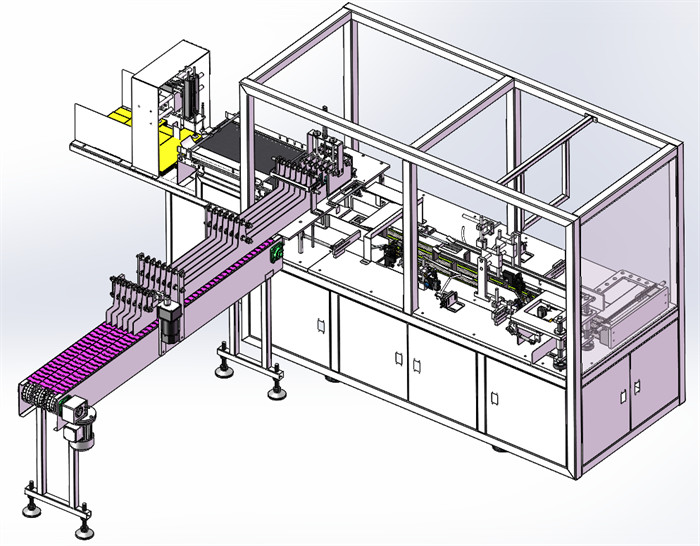

1-6 Case/Min Wrap Around Carton Packer Automatic Bag Case Packer 0

  • Technical Parameter
Model XQ-ZX550W
Packing Size L 250-400mm; W 150-350mm; 80-300mm; Customized
Production Capacity 15-20 cartons/min.
Glue consumption ≤4g/carton
Melting temperature 170℃±5℃
Solidify time 1.5S-2.5S
Total Power 12KW
Working Voltage 220v/380v 50/60HZ
Air pressure source supply 5.5~6kg/cm2
Machine Dimensions L5620 mm ×W3040 mm ×H1735 mm, depend on customized
N.W 1000KG, depend on customized
Note: For Customized product, all data above are for reference only, the final data are subject to actual demand.
  • Working Principle

1-6 Case/Min Wrap Around Carton Packer Automatic Bag Case Packer 1





  • Product Features

Use a single piece of cardboard to wrap the box, reduce the link of box making and unpacking, and save the cost of box making and unpacking equipment



2. Compared with the traditional carton, it can save about 20% of the carton area and save the cost of raw materials



3. According to the customer's packing arrangement requirements, the products are automatically arranged and combined without manual operation, saving costs and improving work efficiency



4. Wide range of application, can meet various specifications of product packing



5. Using Nordson hot melt glue machine from the United States to spray glue and seal the box, the sealing and bonding are stable, and the downtime caused by the quality problem of the hot melt glue machine is reduced.



6. Control mode: PLC + touch screen + standard control button + signal switch, divided into automatic/manual control mode, flexible operation



7. The fault point can be found through the touch screen, and the fault can be easily eliminated

According to the customer's packing arrangement requirements, the products are automatically arranged and combined
