70-100pcs/Min Toothpaste Cartoning Machine Tube Horizontal Cartoner Machine
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 30 set/month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-LSZH-50 |
|
Detail Information |
|||
| Name: | Semi Automatic Cartoner Packaging Machine | Feeding Mode: | Semi Automatic |
|---|---|---|---|
| Available Product: | Bottle | Sealing Type: | Tuck In |
| Speed: | 20-50pcs/min | Power: | 1.5kw |
| Voltage: | 220/380v | Available Carton Size: | (60X20X20)-(200x80x80)mm |
| Optional: | Leaflet Device, Automatic Feeding Device, Ink-jet Printer | Application: | Cream, Perfume, Soap |
| High Light: | 20pcs min cream bottle filling machine,50pcs min cream bottle filling machine,semi automatic vertical packaging machine |
||
Product Description

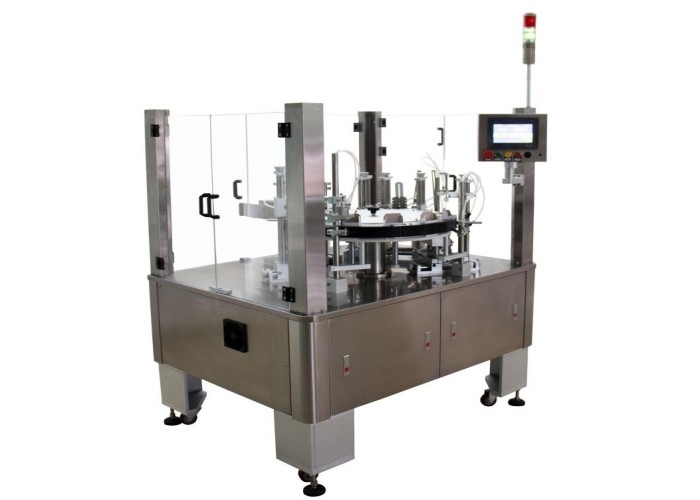

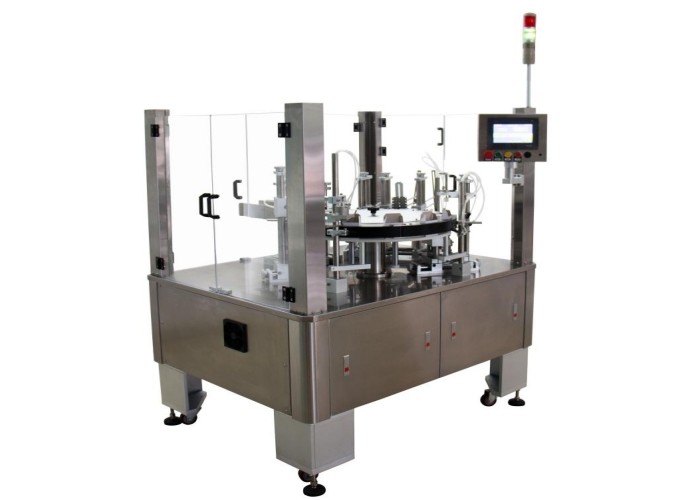

Semi Automatic Vertical Cartoner Packaging Machine Packing Cream Bottle By Hand
Vertical Cartoning Machine Introduction
Semi automatic vertical cartoner packaging machine are known for packing product with special customized liner which is difficult to pack liner by machine. But they are capable of so much more. Bags of cereal, stick packs of yogurt, sticky dried fruits, bottles of vitamins and more can be properly handled to load into cartons.
The vertical cartoner is a type of packaging machine, it converts carton blanks into folding cartons for top loading products. For product loading, semi automatic needs worker manually top loads to the folding cartonand then it will sealing cover automatically finishes it.
Technical Parameter
| Model | XQ-LSZH-50 |
| Packing speed | 20-50 boxes / min |
| Maximum carton |
200 x 80 x 80mm (Take the maximum minimum simultaneously) |
| Minimum carton |
60 x 20 x 20 mm (Take the maximum minimum simultaneously) |
| Carton requirements | 250-350g/m3 |
| Power of motor | 1/4HP 15:1 |
| Power supply | Single-phase 220V 50 / 60HZ single phase |
| Machine noise | ≤80dB |
| Air supply | 0.5-0.8 Mpa |
| Air consumption | 150L/min |
| Machine dimension | L 1100 x W 1500 x H 1900 mm |
| N.W | 250Kg |
Cartoning Machine Features
Model: XQ-LSZH-50 Semi Automatic Vertical Cartoner Packaging Machine
| 1 | The machine is specially designed for manufacturers with large carton sizes and small batches. |
| 2 | Low cost and small footprint. |
| 3 | Suitable for boxes of all sizes. |
| 4 | 304 Stainless steel enclosure |
| 5 | The machine is a multifunctional vertical automatic packing machine, change specifications change mold time is short. |
| 6 | The Advanced PLC control system, combined with a 5.7 color touch screen control panel, can easily set and change packaging parameters. |

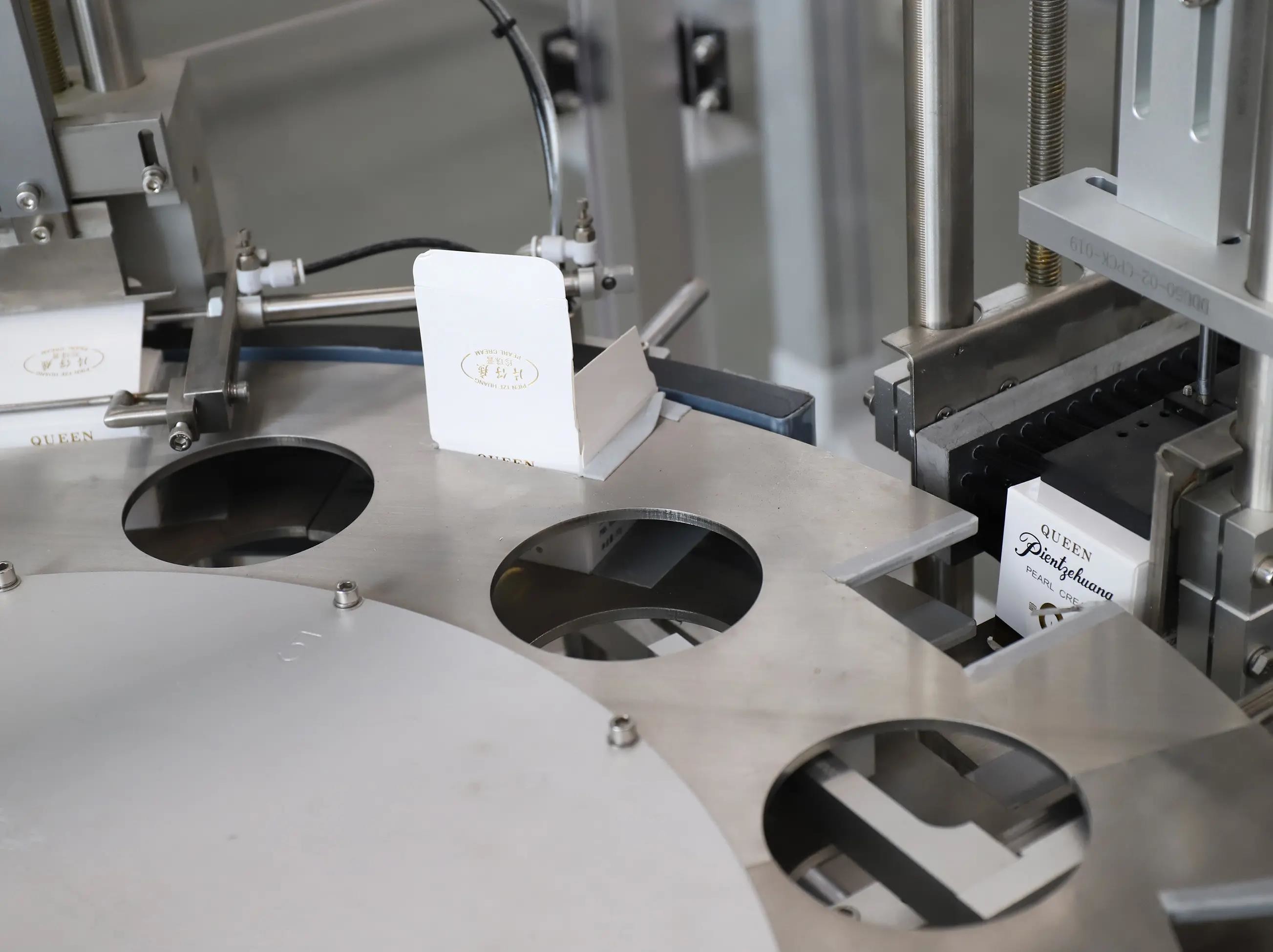

Packing Process
1. Take the carton up to the star wheel.
2. Fold the upper tongue of the cardboard box.
3. Fold the cover.
4. Insert under the big tongue
5. Put the products into paper boxes.
6. Folding the small tongue on the carton.
7. Fold the cover.
8. Insert into the big tongue
9. output of finished product.
Samples
