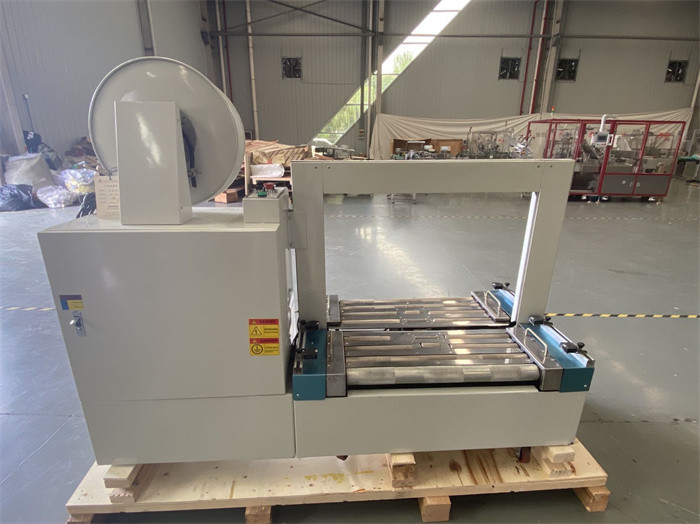

380v Low Automatic Box Strapping Machine 12mm Carton Banding

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-KZ100QL

Detail Information

Name: Automatic Box Strapping Machine Automatic Grade: Fully Automatic
Application: Large Packages Working Table: Low Table
Working Mode: By Auto/trigger Strap Width: 9-12mm
Strap Way: —, +,=, H Type Etc. Roller Type: Eletrical Motor Driven
High Light:

low automatic box strapping machine


380v automatic box strapping machine


12mm carton banding machine

Product Description

Fully Automatic Box Strapping Machine with Low Working Table


  • Product Desription

Fully Automatic Box Strapping Machine  uses a strapping tape to wrap a product or package, then tighten and melt the two ends by thermal effect or use a material such as a buckle. The function of the strapping machine is to make the plastic tape stick closely to the surface of the bundled package to ensure that the package will not be scattered due to poor binding during transportation and storage, and it should also be neatly bundled and beautiful.


  • Technical Parameter
Model XQ-KZ-100QL


Power 1.5 kw
Arch Size W850*H600
Tension 5-80kg
PP Band Width 13.5mm
PP Band COre Dia. 200mm
Packing Speed 2.3 sec/min. one cycle
Table Height 450mm
Machine Dimensions


(arch W850*H600)
Machine Weight 280kg


  • Machine Principle

The strap arrives in place → receives the strapping signal → the brake is released, the main motor starts → the right top knife rises, and the right belt is held at the sliding plate → the guide plate retreats → the proximity switch senses the tape retracting probe → the main motor stops, the brake is pulled in → The belt retracting motor starts, and the belt is retracted for 0.35 seconds → the belt is tightened and tied to the object → the main motor is started for a second time, the brake is pulled in → the large pendulum rod pulls the belt twice, and the belt is tightened → the left top body rises, and the lower belt is pressed → The heating plate extends into the middle of the two belts → the middle top knife rises, cuts the belt → the middle top knife descends → the middle top knife rises again, so that the two belts are firmly bonded → the middle top knife descends, and the left and right top knives descend at the same time → the heating plate is reset → Slide back → Guide plate reset → Proximity switch senses the tape feed probe → Tape feed motor starts to drive the tape to feed the tape → Big swing lever reset → Tape in place, tape head rests on the guide plate → Proximity switch senses double probes → Main motor stops , brake pull-in → complete a working cycle.


  • Product Features

1. The automatic packing machine can pack large objects with more dust and powder, and large objects with heavy weight.
2. All parts are precisely machined by NC machining equipment. The solid resistance of the parts and the unification of the connection action are well guaranteed, and there will be no problems in long-term use.
3. The power roller can realize unmanned automatic packing.
4. The automatic baler adopts the concave and convex operation button design, which greatly reduces the damage degree and misoperation of the operation button.
5. The baler has a low table top and is easy to operate, suitable for packing heavy and large items.
6. The automatic baler can freely adjust the time of the delay circuit of the ironing head according to the different uses to increase the firmness of the bonding.

  • Strapping Samples

380v Low Automatic Box Strapping Machine 12mm Carton Banding 0
