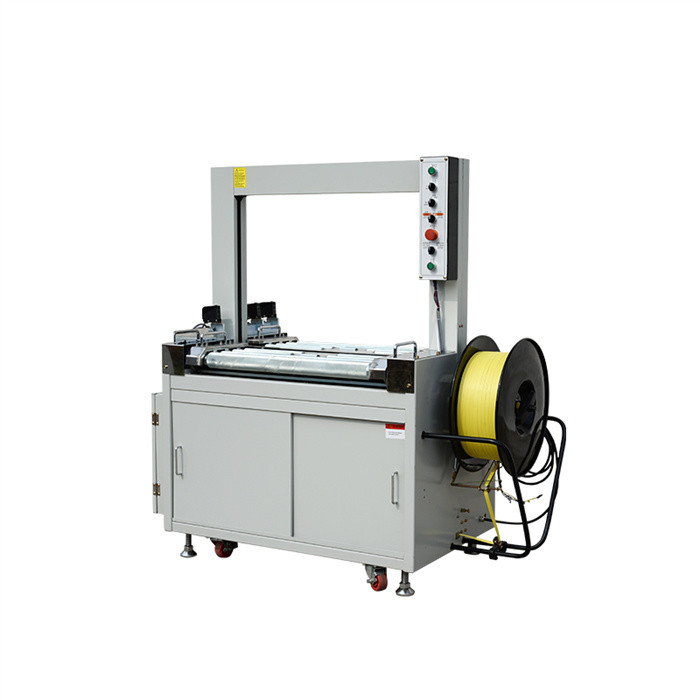

9-12mm Fully Automatic Box Strapping Machine High Carton Binding

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-KZ100QZ

Detail Information

Name: Automatic Box Strapping Machine Automatic Grade: Fully Automatic
Application: Express, Warehouse, Packaging Etc. Working Table: High Table
Working Mode: By Auto/trigger Strap Width: 9-12mm
Strap Way: —, +,=, H Type Etc. Roller Type: Eletrical Motor Driven
High Light:

9mm fully automatic box strapping machine

,

12mm fully automatic box strapping machine

,

high carton binding machine

Product Description

Fully Automatic Industrial Carton Box strapping machine from Direct manufacturer in China



  • Product Desription

Fully Automatic Box Strapping Machine can realize automatic bundling. The table is equipped with a power roller, and the packaged items can be passed through the packing machine without manual push.

Applicable: Widely used in food, medicine, hardware, chemical, clothing, postal and other industries, suitable for carton packaging, paper packaging, parcel letter packaging, medicine box packaging, light industry packaging, hardware tool packaging, ceramic product packaging, auto parts packaging, daily chemicals Automatic packing and bundling of various sizes of goods such as supplies packaging, stationery packaging, equipment packaging, etc.



  • Technical Parameter
Model XQ-KZ-100QZ
Voltage

3ph,380v,50HZ

Power 1.5 kw
Arch Size W850*H600

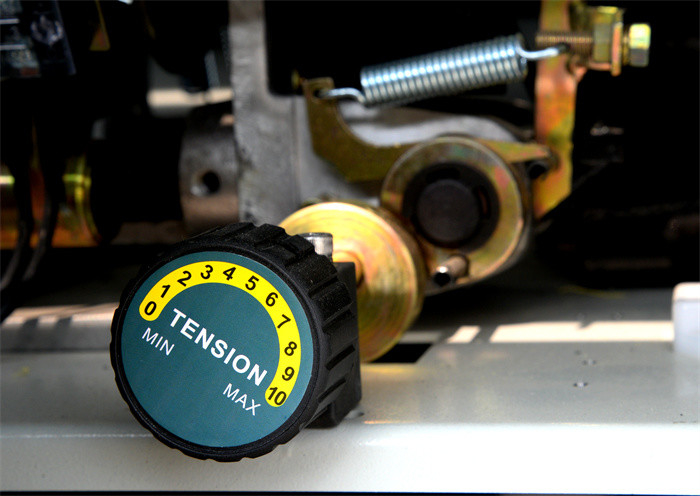

Tension 5-80kg
PP Band Width 13.5mm
PP Band COre Dia. 200mm
Packing Speed 2.5 sec/min. one cycle
Table Height 720-820mm
Machine Dimensions

W1629*D700*H1520MM

(arch W850*H600)
Machine Weight 315kg



  • Machine Principle

The strap arrives in place → receives the strapping signal → the brake is released, the main motor starts → the right top knife rises, and the right belt is held at the sliding plate → the guide plate retreats → the proximity switch senses the tape retracting probe → the main motor stops, the brake is pulled in → The belt retracting motor starts, and the belt is retracted for 0.35 seconds → the belt is tightened and tied to the object → the main motor is started for a second time, the brake is pulled in → the large pendulum rod pulls the belt twice, and the belt is tightened → the left top body rises, and the lower belt is pressed → The heating plate extends into the middle of the two belts → the middle top knife rises, cuts the belt → the middle top knife descends → the middle top knife rises again, so that the two belts are firmly bonded → the middle top knife descends, and the left and right top knives descend at the same time → the heating plate is reset → Slide back → Guide plate reset → Proximity switch senses the tape feed probe → Tape feed motor starts to drive the tape to feed the tape → Big swing lever reset → Tape in place, tape head rests on the guide plate → Proximity switch senses double probes → Main motor stops , brake pull-in → complete a working cycle.



9-12mm Fully Automatic Box Strapping Machine High Carton Binding 0


  • Product Features

Modular aluminum alloy bow frame design, easy disassembly and assembly; fully automated design, more convenient operation and use; the maximum size of the bundle is determined by the bow frame, which can be customized according to the needs of users; motor, reducer, cam, tightening Arm operation; excellent packing tightness, few failures, and easy maintenance; soft packing action, excellent durability, and perfect packing function; after packing, the motor stops immediately, saving power and practicality.



· Clamshell panel, easy maintenance.
· New electric heating device, fast heating and long service life.
· Single-chip electronic control, complete functions and easy operation.

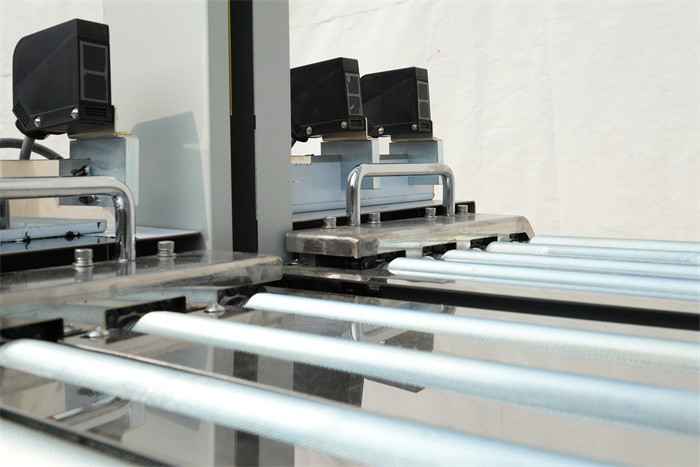

· Countertop with powered roller, driven by motor
· Optional automatic belt feeding device.
· 4 kinds of bundling methods to ensure a variety of bundling requirements of customers.

  • Strapping Samples

9-12mm Fully Automatic Box Strapping Machine High Carton Binding 1

9-12mm Fully Automatic Box Strapping Machine High Carton Binding 29-12mm Fully Automatic Box Strapping Machine High Carton Binding 3
