120mm 130mm Carton Case Sealer Online Box Machine For Case Packaging Line

Minimum Order Quantity : 1 Unit Packaging Details : Standard wooden case for export
Delivery Time : 30 days Payment Terms : T/T
Supply Ability : 100 Units/ Month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-FX215

Detail Information

Name: Online Auto Flap Folding Carton Case Sealer Automatic Grade: Automatic
Available Carton Size: 150-500mm( L)*120-500mm(W)*130-500mm(H) Size Adjustment: Manual
Belt Driven: Side Belt Drive Flap Folding: Auto
Application: Packaging And Printing, Food, Express, Warehouse Etc. Tape Position: Top&bottom Sealing
Sealing Way: Tape Tape Distance: 70mm
High Light:

120mm Carton Case Sealer

,

130mm Carton Case Sealer

,

online box sealer machine

Product Description

Online Auto Flap Folding Carton Case Sealer for Case Packaging Line



  • Product Desription

Case sealer machine is mainly suitable for carton sealing and packaging. It can be used alone or with assembly line. It can be used for single box operation, and can also be used with carton forming and unpacking machine, packing machine, labeling machine. Machines, strapping machines, pallet stackers, conveyors and other equipment are used in packaging lines, which are necessary equipment for packaging line operations.



When the automatic folding and sealing machine cooperates with the assembly line, it is only necessary to fold the four-sided bendable panel formed on the bottom surface of the carton, put the items into the conveyor track driven by the belts on both sides, and the carton folding device on the upper side of the carton sealing machine. Start, the folding cover and sealing are completed at one time. When the size of the carton changes, automatic machine positioning, automatic top folding, automatic timely delivery, no manual supervision, suitable for connecting to automatic production lines.

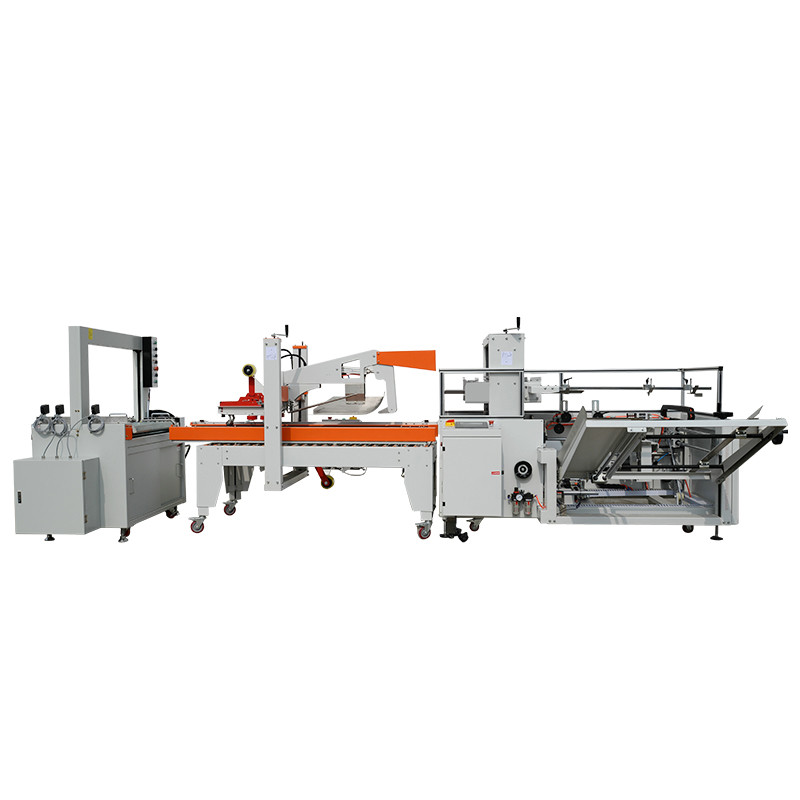

120mm 130mm Carton Case Sealer Online Box Machine For Case Packaging Line 0



  • Technical Parameter
TECHNICAL SPECIFICATION
Applicable carton size 150-500mm( L)*120-500mm(W)*130-500mm(H)
Conveying speed 20 m / min
Equipment size 1800mm(L)*980mm(W)*1420mm(H)
Power supply 220/380V 50Hz(Alternative use)
Maximum power consumption 0.4kw
Apply pressure 6kgf/cm2
Tape width 48/60/75mm(Alternative use)
Equipment weight 236kg



  • Working Principle

After the product is packed, it is sent to the carton sealing machine through the conveyor chain (belt, roller), and then handed over to the carton conveying mechanism, and the two sides of the carton are clamped by the box belt and moved forward. The front short tongue is automatically bent by the tongue pressing frame. When the carton enters the roller of the carton sealing machine, the rear short tongue has a detection signal (photoelectric signal) to notify the action of the tongue punching cylinder, and the tongue punching frame will bend it. The glue machine automatically sprays glue. The carton continues to move forward, and the left and right long tongues are automatically bent to the middle through the guide rod. At the same time, the belt of the pressing mechanism simultaneously presses the left and right long tongues of the carton, so that the box, the tongue and the glue are glued together to complete the sealing and shaping action, that is, the product packaging. The last process---automatic sealing.

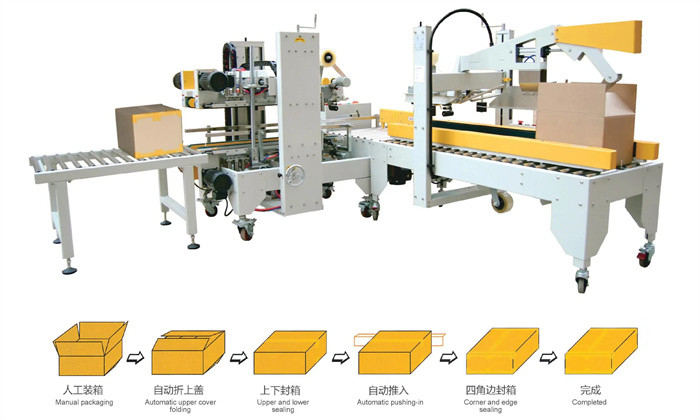

120mm 130mm Carton Case Sealer Online Box Machine For Case Packaging Line 1

  • Product Features

1. High-strength gripping PVC tape is used to drive both sides of the carton, the drive runs smoothly, and the tape is sealed to the center;
2. It can be adjusted according to the size of the carton and realize the folding of the front, rear and two sides of the upper cover and the action of the upper and lower boxes in sequence;
3. The use of pneumatic devices to realize the automatic folding of the upper back cover and the two side covers of the carton is the first in China;
4. The tape is sealed flat, firm, standardized and beautiful, and will not tear the box.

  • Product Samples

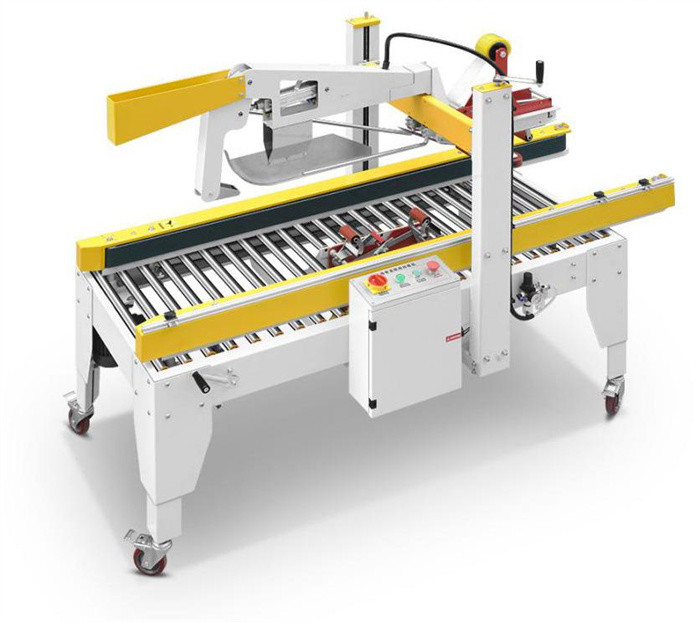

120mm 130mm Carton Case Sealer Online Box Machine For Case Packaging Line 2
