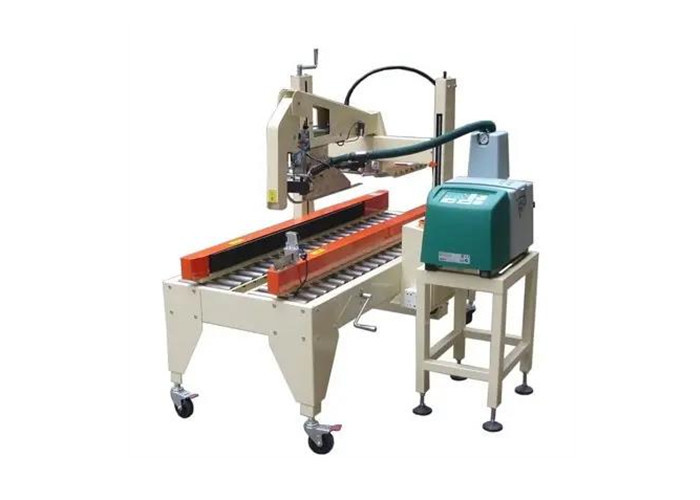

Hot Melt Glue Carton Case Sealer 200mm Automatic Box Taper

Minimum Order Quantity : 1 Unit Packaging Details : Standard wooden case for export
Delivery Time : 30 days Payment Terms : T/T
Supply Ability : 100 Units/ Month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-FX-655H

Detail Information

Name: Hot Melt Glue Carton Sealer Automatic Grade: Automatic
Available Carton Size: 200-600mm( L)*150-500mm(W)*150-500mm(H) Size Adjustment: Manual
Belt Driven: Side Belt Drive Flap Folding: Auto
Application: Packaging And Printing, Food, Express, Warehouse Etc. Tape Position: Top&bottom Sealing
Sealing Way: Hot Melt Glue
High Light:

hot melt Carton Case Sealer


glue Carton Case Sealer


200mm automatic box taper

Product Description

Auto Flaps Folding Carton Case Sealer by Hot Melt Glue


  • Product Desription

Auto Flaps Folding Carton Case Sealer by Hot Melt Glue is suitable for automatically folding the top carton flap cover of a certain size carton and then sealing the top and bottom by  hot melt glue for sealing type “—”, with combine use of hot melt glue machine . In addition to manually adjusting for different carton size, it can automatically fold the carton top flap cover and seal box.


Hot-melt adhesive bonding is to use a hot-melt glue machine to melt the hot-melt glue through heat, and the glue after melting becomes a liquid, which is sent to the adherend through the hot-melt glue tube and hot-melt glue gun of the hot-melt glue machine. On the surface, after the hot melt adhesive is cooled, the bonding is completed, which can meet the requirements of carton sealing, and overcome the defects of the previous carton sealing forms. To give full play to the advantages of hot melt adhesives in carton sealing, high-quality hot melt adhesives and corresponding hot melt adhesive machines with reliable quality and performance must be used to match. In terms of hot melt adhesive equipment, cost and efficiency should be considered comprehensively when choosing a hot melt adhesive machine. According to speed requirements, packaging box shape and sealing form, production site, suitable layout of hot melt adhesive equipment and hoses, nozzles and supporting auxiliary equipment, to realize automatic glue spraying or semi-automatic glue spraying, and then give full play to the advantages of hot melt glue for maximum effect and economic benefit.

  • Technical Parameter
Conveyor speed 20m/min
Carton Size L200-600×W150-500×H150-500mm
Power Supply 220V /50Hz
Power 200W
Air Consumption 50NL/min
Air Compressing 0.6Mpa
Table Height 600+150mm
Machine Dimension L1770×W850×H1520mm
Machine Weight 250KG

  • Working Principle

The principle of the automatic folding cover and sealing machine is to automatically fold the four upper covers of the carton upright and automatically seal the box with hot melt glue. When the automatic folding and sealing machine cooperates with the assembly line, it is only necessary to fold the four-sided bendable panel formed on the bottom surface of the carton, put the items into the conveyor track driven by the belts on both sides, and the carton folding device on the upper side of the carton sealing machine. Start, the folding cover and sealing are completed at one time. Suitable for connecting to fully automatic production lines.



Hot Melt Glue Carton Case Sealer 200mm Automatic Box Taper 0

  • Product Features


  • Durable parts: use imported parts and electrical components
  • Easy adjustment: manually adjust the width and height of the machine according to the carton specifications
  • Fast sealing: automatically fold the top cover of the carton, automatically attach glue on up and down, economical, smooth and fast
  • Safety protection: Install blade guards to avoid accidental punctures during operation
  • Applicability: The automatic sealing machine can be used in a single machine or in conjunction with an automated packaging line.
  • Product Samples

Hot Melt Glue Carton Case Sealer 200mm Automatic Box Taper 1
