H Automatic Carton Case Sealer , 20m/Min Glue Case Sealer

Minimum Order Quantity : 1 Unit Packaging Details : Standard wooden case for export
Delivery Time : 30 days Payment Terms : T/T
Supply Ability : 100 Units/ Month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-FX500QJB

Detail Information

Name: Carton Edge Sealer Automatic Grade: Auto
Available Carton Size: 340-500mm( L)*200-500mm(W)*180-500mm(H) Size Adjustment: Auto
Belt Driven: Top&bottom Belt Drive Application: Home Appliances, Electronics, Food, Dairy Products, Oils, Cosmetics, Beverages, Electrical Appliances And Other Manufacturing Industries
Tape Position: Carton Edge Sealing Way: Tape
Tape Distance: 65mm
High Light:

H Carton Case Sealer

,

automatic Carton Case Sealer

,

20m min glue case sealer

Product Description

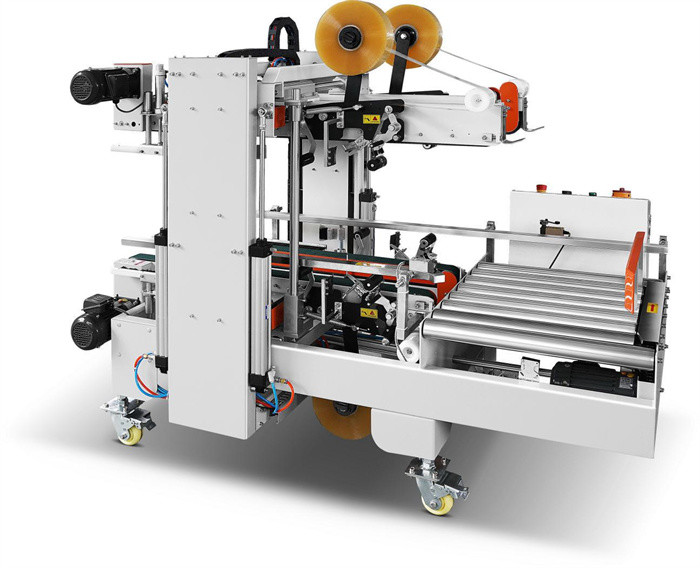

Fully Automatic Carton Edge Case Sealer for H type Sealing



  • Product Desription

Carton edge Case Sealer XQ-FX500QJB is a fully automatic corner sealing machine which is suitable for all types of cartons, after being sealed in the first half(upper cover), the carton is pushed by the L-shaped corner to seal the four corners. There is no need to manually adjust the size of the carton when the carton size changes, because the electric eye will automatically sense the carton, and then the cylinder can automatically move to adjust the carton size intelligently. The carton is driven by the upper and lower belts. It is fast and stable when sealing, and has no folds at the four corners.

  • Technical Parameter
TECHNICAL SPECIFICATION
Applicable carton size 340-500mm( L)*200-500mm(W)*180-500mm(H)
Conveying speed 20 m / min
Equipment size 1940mm(L)*1100mm(W)*1450mm( H)
Power supply 220/380V 50Hz(Alternative use)
Maximum power consumption 1.0kw
Applicable Pressure 5-6kgf/c m
Tape width 48/60/75mm(Alternative use)
Equipment weight 520kg
  • Working Principle

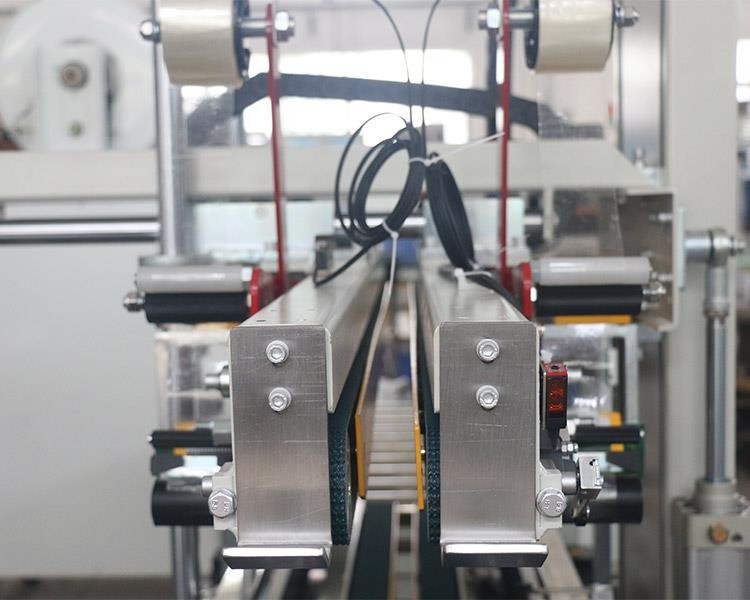

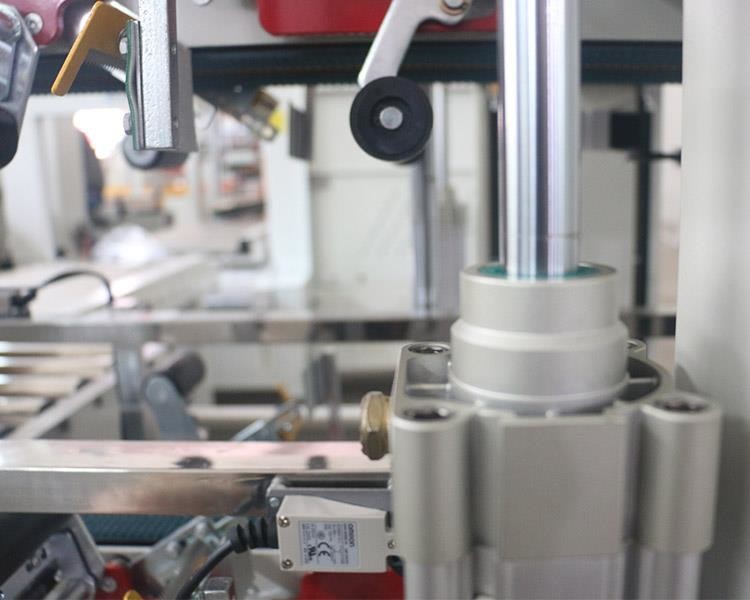

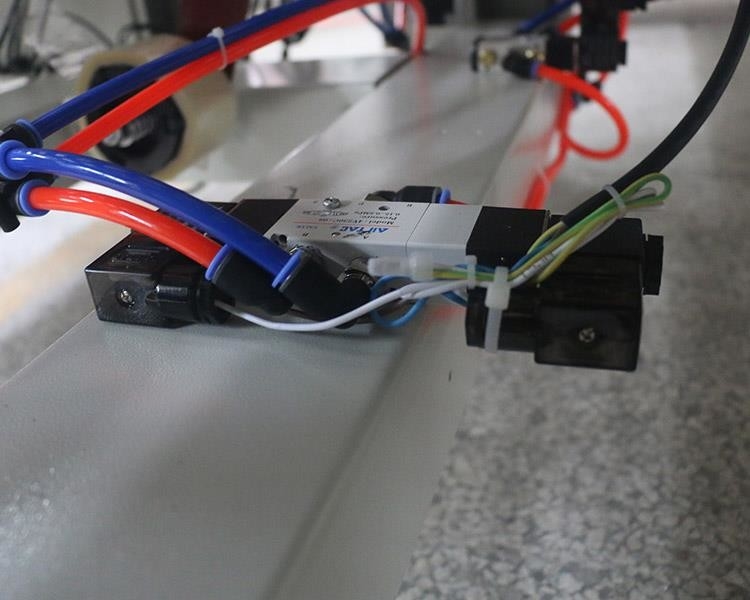

H Automatic Carton Case Sealer , 20m/Min Glue Case Sealer 0

  • Product Features

  • The sealing machine is designed to be simple in operation, economical and durable, safe, and low in failure rate. It intelligently adjusts the width and height of the machine according to the specifications of the carton. It is suitable for the same type of carton sealing at the same time.
  • After the carton passes through the upper and lower sealing, it then enters the 90 degree corner mechanism. When the photoelectric detection detects the carton, the machine can automatically adjust the width and height according to the carton specification.
  • The four corners and sides of the carton are automatically sealed and smoothed at the same time. No need to manually adjust the machine, simple, convenient and fast. The sealing effect is smooth, standardized and beautiful
  • Using this sealing machine instead of labor can not only improve production efficiency (increased by 30%), but also reduce costs and reduce 2 to 3 packers. This has standardized packaging and saved consumables (saving 5-10% of consumables).
  • This machine adopts PLC control, the operation is more simple, the performance is more stable, and the applicability is strong. It can be combined with FX215 and FX-50D Model to complete the "H" type sealing.
  • Product Samples

Widely used in the packaging for Home appliances, electronics, food, dairy products, oils, cosmetics, beverages, electrical appliances and other manufacturing industries.

H Automatic Carton Case Sealer , 20m/Min Glue Case Sealer 1
