200mm 180mm Carton Case Sealer H Carton Erector Automatic

Minimum Order Quantity : 1 Unit Packaging Details : Standard wooden case for export
Delivery Time : 30 days Payment Terms : T/T
Supply Ability : 100 Units/ Month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-FJ500

Detail Information

Name: Carton Edge Sealer Automatic Grade: Auto
Available Carton Size: 340-500mm( L)*200-500mm(W)*180-500mm(H) Size Adjustment: Manual
Belt Driven: Top&bottom Belt Drive Application: Home Appliances, Electronics, Food, Dairy Products, Oils, Cosmetics, Beverages, Electrical Appliances And Other Manufacturing Industries
Tape Position: Carton Edge Sealing Way: Tape
Tape Distance: 65mm
High Light:

200mm Carton Case Sealer


180mm Carton Case Sealer


H carton erector and sealer

Product Description

Automatic Carton Edge Sealer / Carton Case Sealer for H type Sealing


  • Product Desription

Carton edge Carton Case Sealer is to use instant adhesive tape to seal the eight corners and four sides of the carton parallel to the forward direction. It is economical, fast, easy to operate, and simple to maintain. , Complete the sealing action of the four sides at the same time; the automatic corner sealing machine is usually used in conjunction with the in-line box sealing machine, and through the steering angle of the 90-degree corner machine, the upper and lower fonts and the four corners are sealed, so , also known as H-shaped box sealing machine.


Manually adjust the width and height. After the box enters,it will start automatically,it will automatically.It will automatically corner the box and seal the box.It is suitable for cartons in the assembly line.The box is sealing at one corner and completed without manual intervention.The automation is strong and the four conveyor belts drive up and down.


This equipment can be wired or stand-alone operation, automatic steering,upper and lower edge tape at the same time edge sealing, one -time completion of the tape device performance is precise and firm, smooth operation, long service life and good stability marked equipment specifications, according to need The widening and heightening of the equipment,the standard height of the table top is 630mm (other requirements can be customized), the use of advanced technology, the structure is strong and durable, the use of high-quality electronic and pneumatic components.

  • Technical Parameter
Applicable carton size 340-500mm( L)*200-500mm(W)*180-500mm(H)
Conveying speed 20 m / min
Equipment size 1940mm(L)*1100mm(W)*1450mm( H)
Power supply 220/380V 50Hz(Alternative use)
Maximum power consumption 1.0kw
Apply pressure 6kgf/cm2
Tape width 48/60/75mm(Alternative use)
Equipment weight 500kg
  • Working Principle

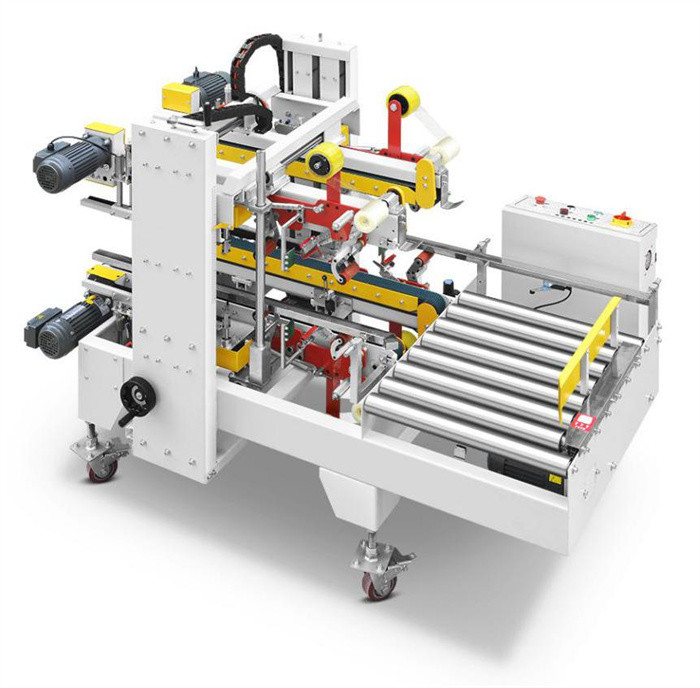

200mm 180mm Carton Case Sealer H Carton Erector Automatic 0


  • Product Features

1. The design of the corner sealing machine is mainly based on simple operation, economical durability, safety and the lowest failure rate;
2. Manually adjust the width and height of the machine according to the carton specifications;
3. It is suitable for carton sealing of the same specification in the same period;
4. After the carton is sealed up and down in the middle of the front sealing machine, it enters the 90-degree corner machine, and is pushed into the sealing mechanism of the corner sealing machine by the push box plate;
5. The upper and lower four corners of the carton are automatically sealed and smoothed at the same time; the sealing is beautiful, fast, labor-saving and efficient;
6. Equipped with blade guards to avoid accidental stab wounds during operation;

  • Product Samples

Widely used in the packaging for Home appliances, electronics, food, dairy products, oils, cosmetics, beverages, electrical appliances and other manufacturing industries.

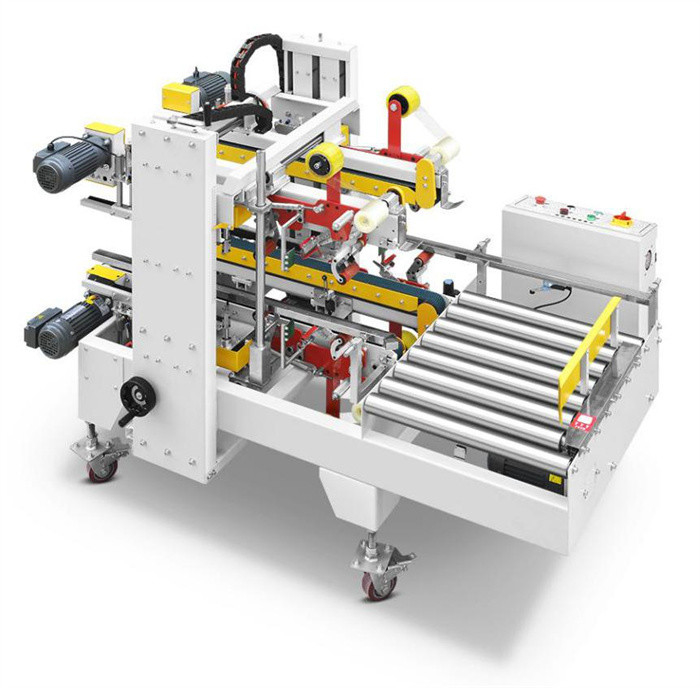

200mm 180mm Carton Case Sealer H Carton Erector Automatic 1
