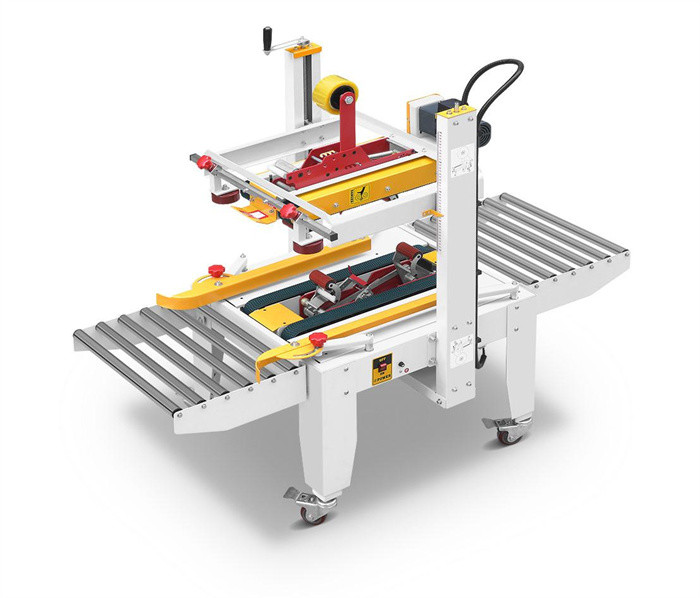

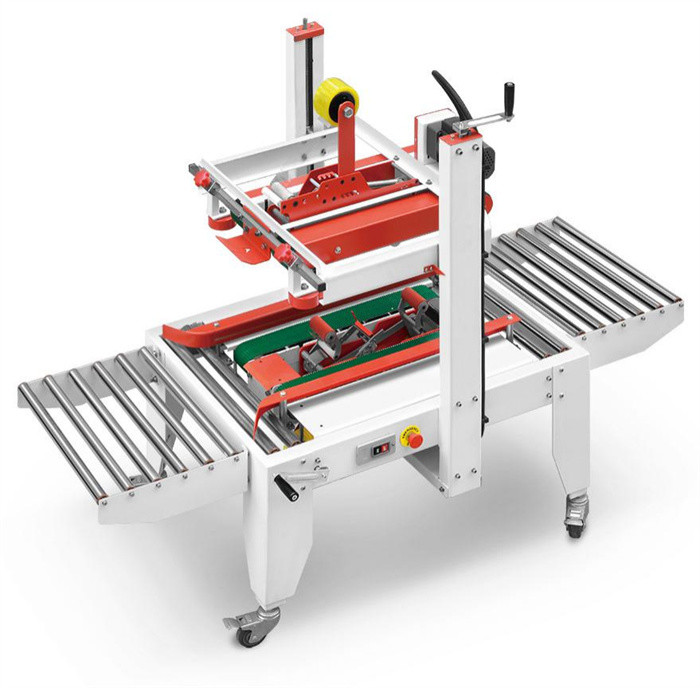

50mm 60mm Semi Automatic Case Sealer Manual Box Erector For E-Commerce

Minimum Order Quantity : 1 Unit Packaging Details : Standard wooden case for export
Delivery Time : 30 days Payment Terms : T/T
Supply Ability : 100 Units/ Month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ--FX500C

Detail Information

Name: Top And Bottom Carton Case Sealer Automatic Grade: Semi Auto
Available Carton Size: 150- ∞mm(L)*180-500mm(W)*130-500mm(H) Size Adjustment: Manual
Belt Driven: Top&bottom Belt Drive Flap Folding: Manual
Application: Food, Medicine, Toys, Tobacco, Daily Chemicals, Electronic Tobaccos Etc. Tape Position: Top&bottom Sealing
Sealing Way: Tape Tape Distance: 50/60/70mm
High Light:

50mm semi automatic case sealer

,

60mm semi automatic case sealer

,

Manual box erector and sealer

Product Description

Semi Auto Box Taper / Carton Case Sealer Machine for E-commerce



  • Product Desription

Semi automatic carton sealer use four belts to complete the upper and lower drive sealing box, ensuring the sealing box is smooth and fast, and is used in lighter and narrower cartons.

50mm 60mm Semi Automatic Case Sealer Manual Box Erector For E-Commerce 0

  • Technical Parameter
TECHNICAL SPECIFICATION
Applicable carton size 150- ∞mm(L)*180-500mm(W)*130-500mm(H)
Conveying speed 20 m / min
Equipment size 1560mm(L)*780mm(W)*1340mm(H)
Power supply 220/380V 50Hz(Alternative use)
Maximum power consumption 0.18kw
Tape width 48/60/75mm(Alternative use)
Equipment weight 120kg
  • Working Principle

50mm 60mm Semi Automatic Case Sealer Manual Box Erector For E-Commerce 1



  • Product Features

  • Top and bottom belt driven
    Use four belts to complete the upper and lower drive sealing box, ensuring the sealing box is smooth and fast, and is used in lighter and narrower cartons.
  • Top driven stabile design
    Top driven adopts 5 stars handle knob + folding plates smooth + box position wheel, lockbox position wheel and keep folding plates smooth with 5 stars handle knob, preventing carton from lifting and making the sealing beautiful.
  • Low-energy motor
    Equipped with 2 Omron Motors, fast speed, low cost, sealing smoothly and stably, continuous uninterrupted operation.
  • Height adjustment controller
    Manually adjust height and width according to carton size within only 1 minute.

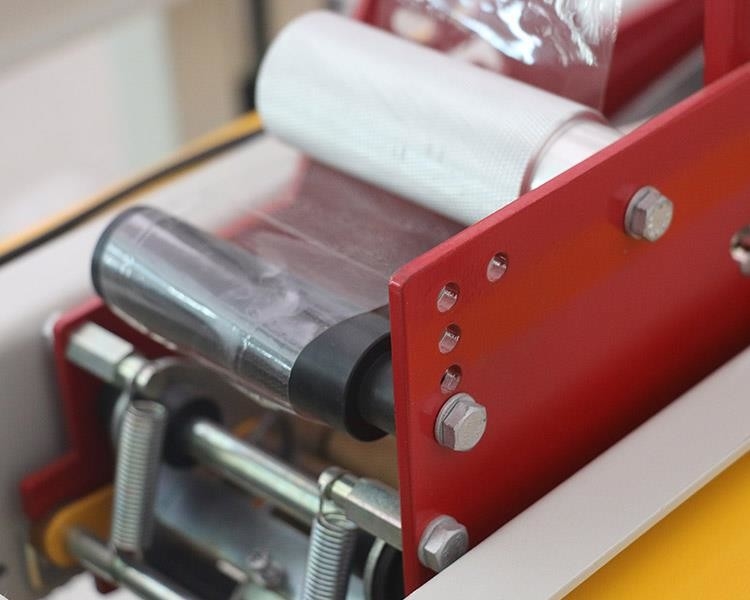

  • Stainless steel roller, long lasting
    The roller is made of stainless steel with high abrasion resistance, easy to clean dust and dander, Increasing convey speed, low noise, long lasting
  • Product Samples

50mm 60mm Semi Automatic Case Sealer Manual Box Erector For E-Commerce 2
