Inline Online Carton Case Sealer Flap Folding Automatic Box Taper Machine
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Minimum Order Quantity : | 1 Unit | Packaging Details : | Standard wooden case for export |
---|---|---|---|
Delivery Time : | 30 days | Payment Terms : | T/T |
Supply Ability : | 100 Units/ Month |
Place of Origin: | Wuxi,China | Brand Name: | SICI AUTO |
---|---|---|---|
Certification: | CE | Model Number: | XQ--FXZ500C |
Detail Information |
|||
Name: | Top And Bottom Carton Case Sealer | Automatic Grade: | Semi Auto |
---|---|---|---|
Available Carton Size: | 150- ∞mm(L)*120-500mm(W)*130-500mm(H) | Size Adjustment: | Manual |
Belt Driven: | Side Belt Drive | Flap Folding: | Manual |
Application: | Food, Medicine, Toys, Tobacco, Daily Chemicals, Electronic Tobaccos Etc. | Tape Position: | Top&bottom Sealing |
Sealing Way: | Tape | Tape Distance: | 70mm |
High Light: | Semi Automatic case sealing equipment,bottom case sealing equipment,top carton sealer machine |
Product Description

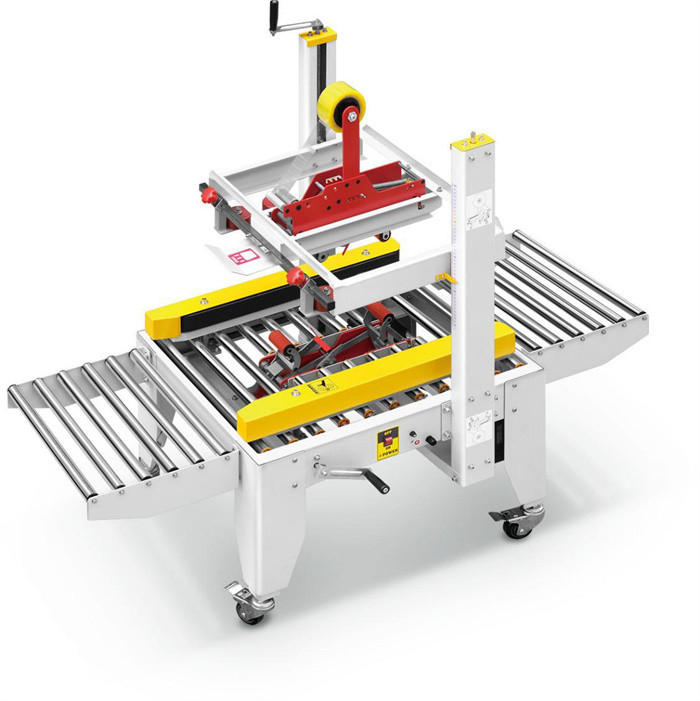

Semi Auto Top and Bottom Carton Case Sealer
Semi Auto Top and Bottom Carton Case Sealer is Four direction belt driven carton sealer uses BOPP tape seal, with BOPP tape seal, box can be sealed smoothly. The size can be adjusted manually according to the box’s size which is easy and convenient to replace labours, increasing work efficiency up to 30% and saving 5%-10% consumables. This machine is an ideal option for saving costs and increasing producing efficiency. It could be widely used in food, medicine, toys, tobacco, daily chemicals, electronic tobaccos and other domestic industries.
TECHNICAL SPECIFICATION | |
Applicable carton size | 150- ∞mm(L)*120-500mm(W)*130-500mm(H) |
Conveying speed | 20 m / min |
Equipment size | 1680mm(L)*830mm(W)*1340mm(H) |
Power supply | 220/380V 50Hz(Alternative use) |
Maximum power consumption | 0.18kw |
Tape width | 48/60/75mm(Alternative use) |
Equipment weight | 124kg |
