Express Warehouse Carton Case Sealer Flaps Folding Automatic Box Taping Machine

Minimum Order Quantity : 1 Unit Packaging Details : Standard wooden case for export
Delivery Time : 30 days Payment Terms : T/T
Supply Ability : 100 Units/ Month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-FX-50D

Detail Information

Name: Auto Flaps Folding Carton Sealer Automatic Grade: Automatic
Available Carton Size: 200-600mm( L)*150-500mm(W)*150-500mm(H) Size Adjustment: Manual
Belt Driven: Side Belt Drive Flap Folding: Auto
Application: Packaging And Printing, Food, Express, Warehouse Etc. Tape Position: Top&bottom Sealing
Sealing Way: Tape Tape Distance: 70mm
High Light:

express Carton Case Sealer

,

Warehouse Carton Case Sealer

,

flaps folding automatic box taping machine

Product Description

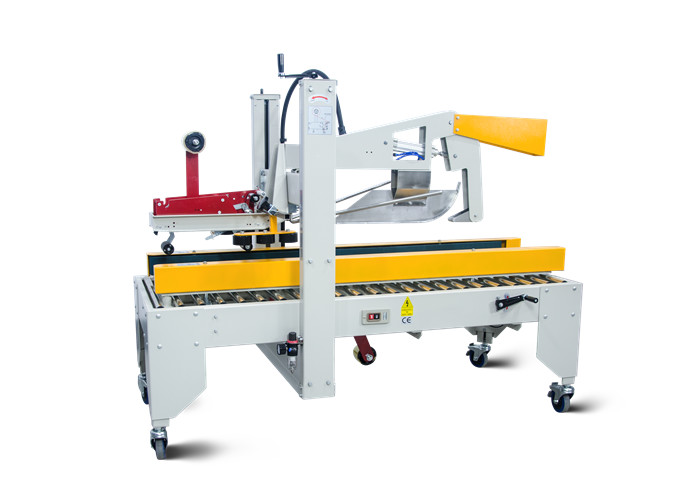

Auto Flaps Folding Carton Case Sealer for Top and Bottom Taping



  • Product Desription

Automatic Flap Folding Tape Carton Case Sealer is suitable for automatically folding the top carton flap cover of a certain size carton and then sealing the top and bottom with self-adhesive tape  for sealing type “—” . In addition to manually adjusting for different carton size, it can automatically fold the carton top flap cover and tape seal box.



Auto flaps folding carton sealer XQ-FX-50D automatically attaches the tape to the top and bottom, no need for manual work. It uses adhesive tape to seal the carton, not only the sealing effect is beautiful, and the sealing is firm. The use of the automatic packaging line will better reflect the value of this machine. This type of sealing machine is widely used in food, medicine, beverage, tobacco, daily chemical, automotive, cable, electronics and other industries at home and abroad.

  • Technical Parameter
MODEL XQ-FX-50D
Conveyor speed 20m/min
Carton Size L200-600×W150-500×H150-500mm
Power Supply 110/220V 50/60Hz 1Phase
Power 420W
Adhesive Tape Width 48/60/75mm
Air Consumption 50NL/min
Air Compressing 0.6Mpa
Table Height 600+150mm
Machine Dimension L1770×W850×H1520mm
Machine Weight 250KG

  • Working Principle



Express Warehouse Carton Case Sealer Flaps Folding Automatic Box Taping Machine 0

  • Product Features

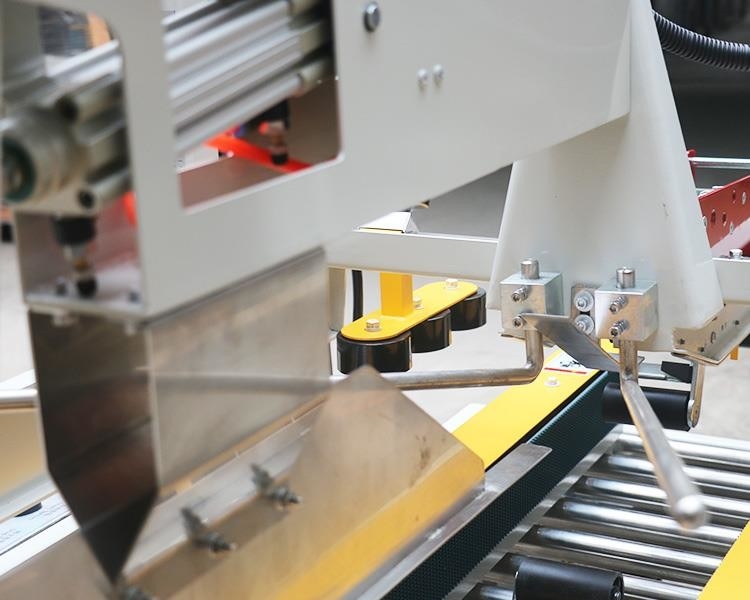

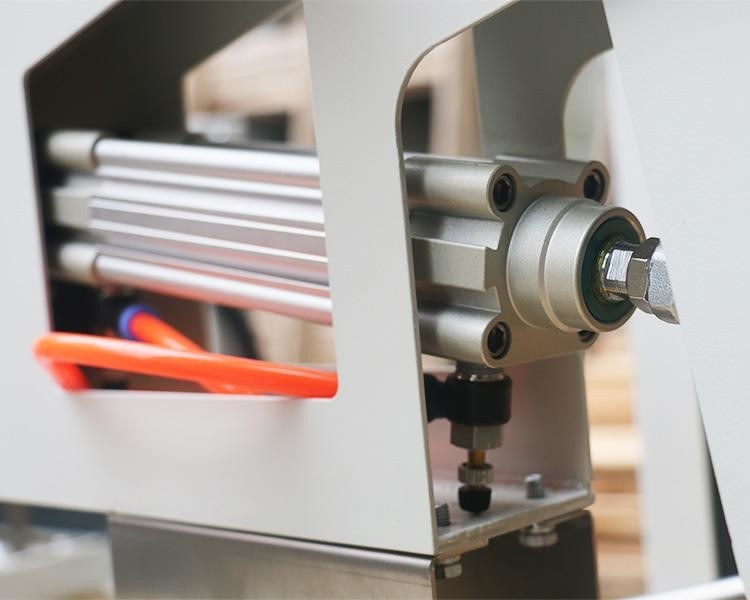

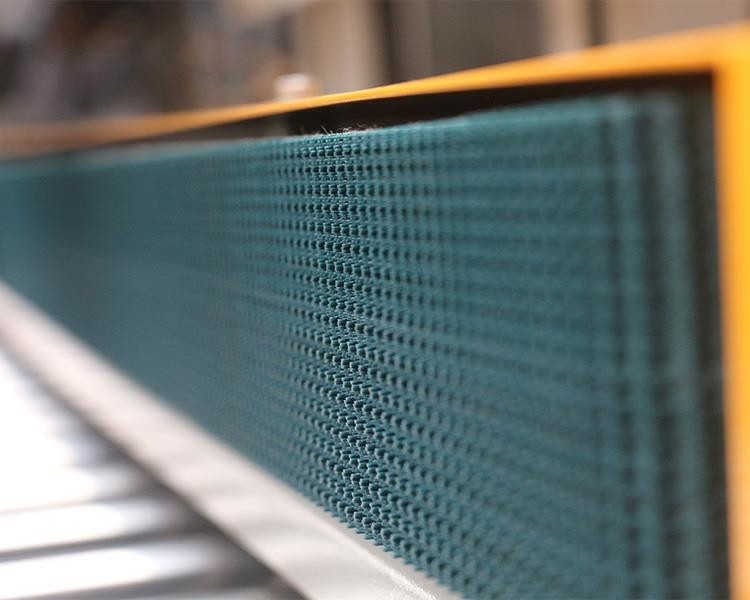

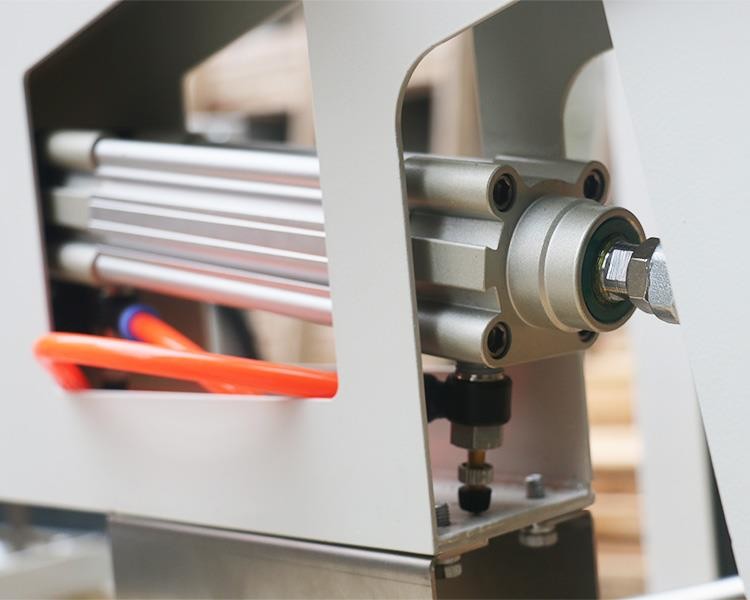

Express Warehouse Carton Case Sealer Flaps Folding Automatic Box Taping Machine 1

Express Warehouse Carton Case Sealer Flaps Folding Automatic Box Taping Machine 2



  • Durable parts: use imported parts and electrical components
  • Easy adjustment: manually adjust the width and height of the machine according to the carton specifications
  • Fast sealing: automatically fold the top cover of the carton, automatically attach the tape up and down, economical, smooth and fast
  • Safety protection: Install blade guards to avoid accidental punctures during operation
  • Applicability: The automatic sealing machine can be used in a single machine or in conjunction with an automated packaging line.
  • Product Samples

Express Warehouse Carton Case Sealer Flaps Folding Automatic Box Taping Machine 3
