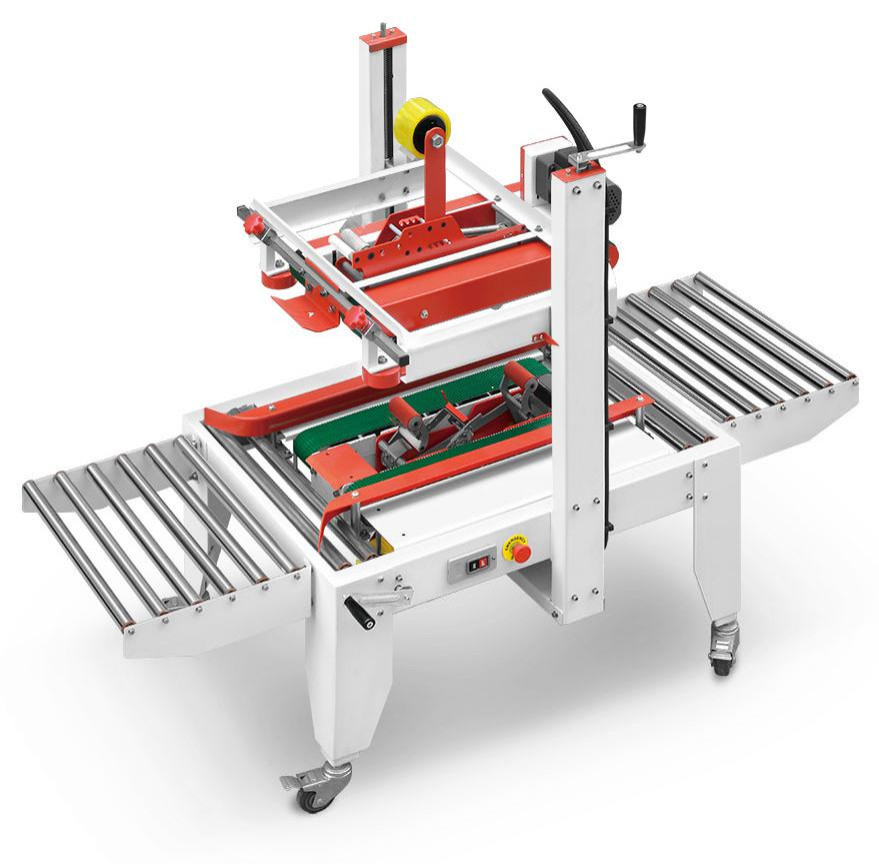

Up Down Belt Drive Semi Auto Carton Sealing Machine 150mm Carton Box Sealer

Minimum Order Quantity : 1 Unit Packaging Details : Standard wooden case for export
Delivery Time : 30 days Payment Terms : T/T
Supply Ability : 100 Units/ Month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ--FX500C

Detail Information

Name: Top And Bottom Carton Case Sealer Automatic Grade: Semi Auto
Available Carton Size: 150- ∞mm(L)*180-500mm(W)*130-500mm(H) Size Adjustment: Manual
Belt Driven: Up&down Belt Drive Flap Folding: Manual
Application: Food, Medicine, Toys, Tobacco, Daily Chemicals, Electronic Tobaccos Etc. Tape Position: Top&bottom Sealing
Sealing Way: Tape Tape Distance: 50/60/70mm
High Light:

semi auto carton sealing machine

,

belt drive carton sealing machine

,

150mm carton box sealer

Product Description

Semi Auto Up&Down Belt Drive Case Sealer Machine / Taper Sealer Machine



  • Product Desription

The carton sealing machine is a commonly used packaging machine. It uses BOPP adhesive tape (also called sealing tape) to seal the carton. It can seal both the upper and lower sides at the same time.

Tape sealing machine refers to the use of ready-to-stick tape to seal carton sealing, which is economical, fast and easy to adjust. It can complete the upper and lower sealing actions at one time, and can also use printing tape. of choice. The key component of the case sealer is the drive motor. The bigger the motor power, the better



TECHNICAL SPECIFICATION
Applicable carton size 150- ∞mm(L)*180-500mm(W)*130-500mm(H)
Conveying speed 20 m / min
Equipment size 1560mm(L)*780mm(W)*1340mm(H)
Power supply 220/380V 50Hz(Alternative use)
Maximum power consumption 0.18kw
Tape width 48/60/75mm(Alternative use)
Equipment weight 120kg
  • Working Principle

Up Down Belt Drive Semi Auto Carton Sealing Machine 150mm Carton Box Sealer 0



  • Product Features

  • Lightweight and durable, easy to operate;
  • Side belt drive, suitable for narrow cartons;
  • Upper and lower belt drive, suitable for taller cartons;
  • The case sealing machine saves labor and reduces the phenomenon of unpacking.
  • This carton sealing machine is suitable for carton sealing and packaging. It can be used alone or in combination with an assembly line. The machine has a wide range of applications and is suitable for chemical fiber industry, tobacco redrying industry, pharmaceutical industry, publishing industry, refrigeration and air conditioning. Industry, home appliance industry, ceramic industry, food industry, etc.
  • This type of carton sealing machine adopts instant tape to seal the carton, which is economical, fast and easy to adjust. It can complete the upper and lower sealing actions at one time, and the printing tape can improve the product impression.
  • Product Samples

Up Down Belt Drive Semi Auto Carton Sealing Machine 150mm Carton Box Sealer 1
