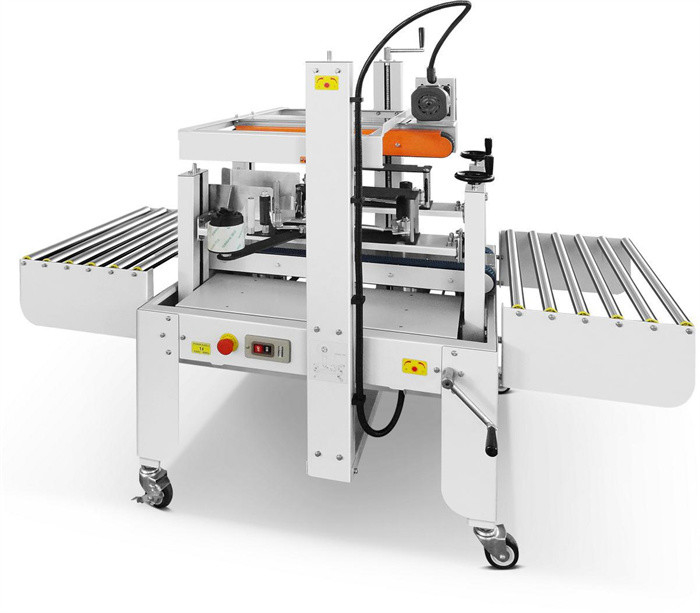

Semi Automatic Carton Case Sealer Up Down Adjustable Case Sealing Machine

Minimum Order Quantity : 1 Unit Packaging Details : Standard wooden case for export
Delivery Time : 30 days Payment Terms : T/T
Supply Ability : 100 Units/ Month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-FX-119

Detail Information

Name: Carton Case Side Sealer Automatic Grade: Semi Auto
Available Carton Size: 150- ∞mm(L)*180-500mm(W)*130-500mm(H) Size Adjustment: Manual
Belt Driven: Up&down Belt Drive Flap Folding: Manual
Application: Food, Medicine, Toys, Tobacco, Daily Chemicals, Electronic Tobaccos Etc. Tape Position: Side Sealing
Sealing Way: Tape Tape Distance: 50/60/70mm
High Light:

semi automatic Carton Case Sealer


up down Carton Case Sealer


Adjustable case sealing machine

Product Description

Semi Auto Carton Case Two Sides Taping / Side Sealer Machine


  • Product Desription

Two sides sealing machine XQ-FX-119 is characterized in that the carton is placed sideways to seal the upper and lower sides of the carton, and is suitable for cartons with side openings or the carton that is difficult to seal from top-bottom direction, such as beverages, floor tiles, and so on. The sealing result is flat, standardized and beautiful. This machine, which is economical and easy to adjust is sealed with tape.



  • Technical Parameter
Applicable carton size 150- ∞mm(L)*180-500mm(W)*100-500mm(H)
Conveying speed 20 m / min
Equipment size 1600mm(L)*780mm(W)*1340mm(H)
Power supply 220/380V 50Hz(Alternative use)
Maximum power consumption 0.18kw
Applicable Pressure 5-6kgf/c m
Tape width 48/60/75mm(Alternative use)
Equipment weight 160kg
  • Working Principle



  • Product Features

  • Manually Adjust the width and height according to the carton specifications
  • Suitable for carton sealing of side openings, such as beverages, floor tiles, etc.

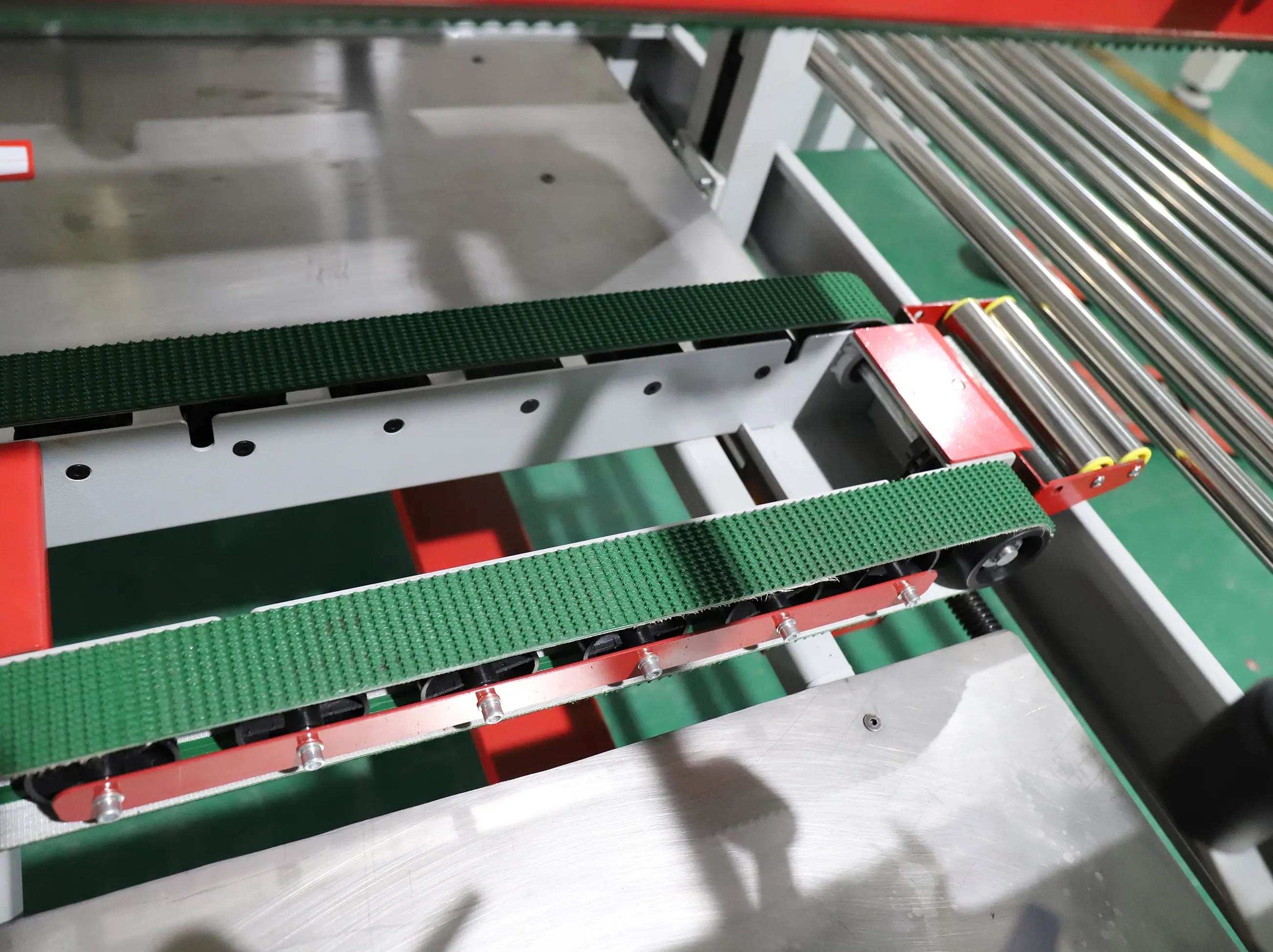

  • Up and down belt drive, sealed on both sides
  • Economical, smooth and fast
  • The machine is equipped with blade guards to avoid accidental punctures during operation
  • Can be used in stand-alone operation or in conjunction with automated packaging lines. It is a good choice for enterprises to save costs, improve production efficiency and achieve standardization of packaging.
  • Product Samples

Semi Automatic Carton Case Sealer Up Down Adjustable Case Sealing Machine 0
