20-25 Pallet/H Horizontal Stretch Wrapper M Type Packing Machine

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 60 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-X500

Detail Information

Name: M Type Pallet Wrapping Machine Packing Mode: Automatic Wrapping
Pre-stretch Ratio: 300% Voltage: 110/220V
Speed: 20-25 Pallet/h Max Loading Weight: 800kg
Film Cutting Mode: Automatic Film Fix Mode: Automatic
Optional: None Application: Milk Powder
High Light:

20 Pallet/h horizontal stretch wrapper

,

25 Pallet/h horizontal stretch wrapper

,

M Type stretch packing machine

Product Description

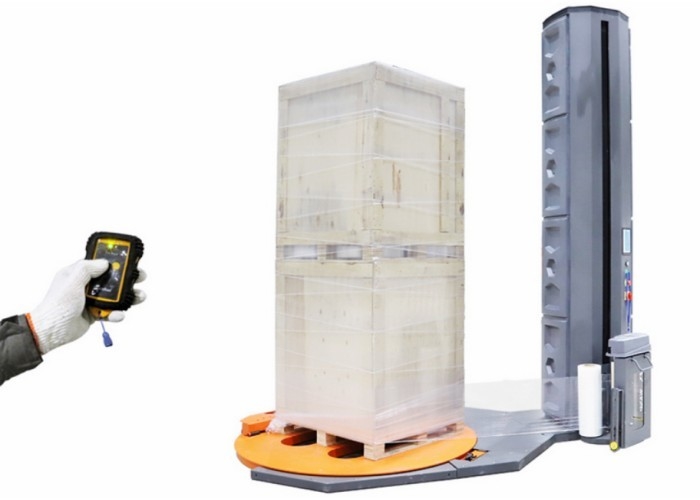

Fully Automatic M Type Pallet Wrapping Machine 20-25 Pallet/h



Pallet Wrapping Machine Introduction



Pallet wrapping machine is an equipment used for automatically wrapping the pallet goods, using PLC program control, easy to operate. It features height detection by photo sensor. For goods weight less than 250kg, there is a protect plate in the machine which will be placed on the top of goods to protect the goods.



Technical Parameter



Load weight Maximum 800KG stop at original Included
Load diagonal dimension  1753mm Pallet jack detective sensor Included
Pallet size 1650mm turntable bake motor Included
Turntable speed 0-12 RPM/min(can be adjusted) Speed Adjustable Included
Packing height Maximum 2350mm Pallet grip system optional
Turntable size 1650mm(1800mm /optional) Measure height Automatic (black/blue color optional)
Pre-stretch rate 300%(1m stretch to 3m) Wrapping force Adjustable
Up&down speed 1.5 ~5.5 m/mins Product Memory Simple and Multilayer Mode
Wrapping speed 20 - 25 load/h Automatic cut film Have(pallet grip function or Auto cut film fucntion Alternatives)
Film Width 500mm(750mm optional) Fix film on pallet automatic
Film diameter 250mm PLC SIEMENS
Film paper Core 76 mm (50 mm optional) Inverter SIEMENS
Film weight Maximum 15KG Touch screen SIEMENS
Machine power 1.5KW Sensor brand SICK (Germany Brand)
Voltage 110/220v 50Hz safety device film carriage bottom safety sensor
Machine weight 680KG Certificate CE
Machine size 2842*1723*2730mm(L*W*H) Optional device None



Product Introduction



Model: XQ-X500 Fully Automatic M Type Pallet Wrapping Machine 20-25 Pallet/h

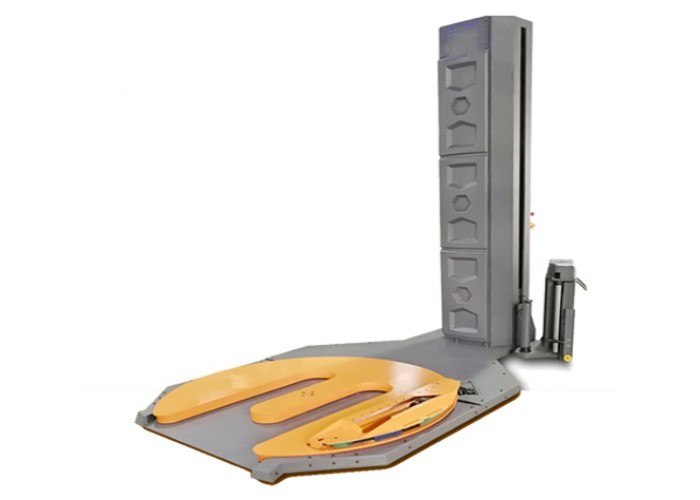

1. M type turntable, it's easy for pallet jack to load the pallet on the turntable.

2. This function can set different wrapping circles and wrapping force at any height that you want and maximum we can set 9 layers for pallet. Normally machine's wrapping force from bottom to top is the same, and it can not stop during wrapping and achieve reinforce wrapping function. Such function completely avoids these problems.

3. With pre-stretch roller, maximum up to 380% pre-stretch rate. Maximize the value of each meter of stretch film Standard constant releasing film Fixed-point wrapping and quantitative use film

4. First, the blade in the film carriage will cut a small hole in the film.
Second, as the machine runs, the hole will be pulled and torn.
Finally, the film is pulled off and attached to the pallet. The machine will stop, waiting for the next operation.

5. 1) safety device under film carriage to protect the foot or head of the operator
2) Transparent board let easy find problem without door open
3) up and down belt deviation and damaged alarm system, in time alarm avoid carriage drop down



Details

20-25 Pallet/H Horizontal Stretch Wrapper M Type Packing Machine 0
