110v 220v High Accuracy Checkweigher Skin Care System For Skin Care Factory
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 50 set/ month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-CZ150 |
|
Detail Information |
|||
| Name: | 5-500g Product High Accuracy Checkweigher | Accuracy: | ±0.1g |
|---|---|---|---|
| Speed: | 150pcs/min | Minimum Scale: | 0.1g |
| Available Product Size: | 200*150*3-200mm | Removing Type: | Blow Away/push Plate |
| Voltage: | 110/220v | Power: | 100w |
| Data Output: | USB | Optional: | Printing Data In Real Time |
| Application: | Capsule Board, Cake | ||
| High Light: | 5g High Accuracy Checkweigher,500g High Accuracy Checkweigher,150pcs min case checkweigher |
||
Product Description

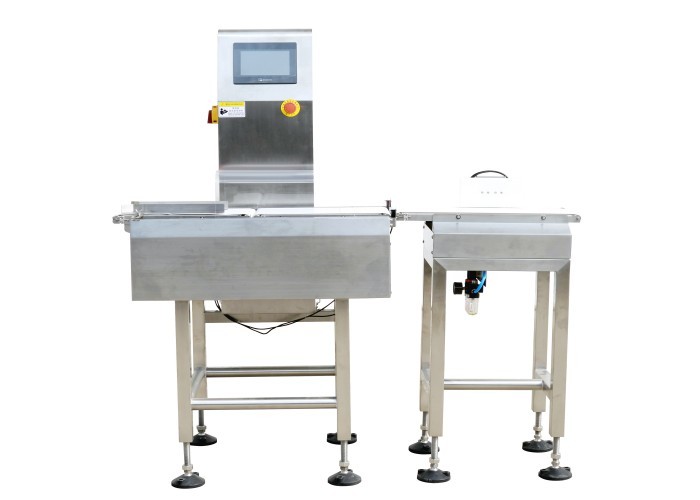

5-500g Product High Accuracy Checkweigher with 150pcs/min for Food Medicine
Checkweigher Introduction
A checkweigher is an automatic or manual machine for checking the weight of packaged commodities. It is normally found at the offgoing end of a production process and is used to ensure that the weight of a pack of the commodity is within specified limits.
Technical Parameter
| Model | XQ-CZ150 | |||||||||
| Weighing Scope | 5-500g | |||||||||
| Weighing Accuracy | ±0.1g (depends on product) | |||||||||
| Minimum Scale | 0.1g | |||||||||
| Max. Speed | Max 150pcs/min | |||||||||
| Product Limit | L | 200mm | ||||||||
| W | 150mm | |||||||||
| H | 3-200mm | |||||||||
| Operating Mode | Touch screen | |||||||||
| Operation Interface | 7 inch touch screen | |||||||||
| Removing Type | Push plate removal/air blowing removal | |||||||||
| The Height from Ground to Belt | 750±50mm (can be customized) | |||||||||
| Machine Structure | Stainless steel (SUS304) | |||||||||
| Working Voltage | AC110V/220V 50-60HZ | |||||||||
| Power | About 100w | |||||||||
| Working Table Dimension | 316mmX150mm | |||||||||
| Machine Weight | About 60kg | |||||||||
| Optional | alarm light, RS485 output port, eliminate box | |||||||||
| Remark | The properties and environment of the tested products are different, and the detection speed and accuracy are also different. The actual test is taken as the standard. | |||||||||
Checkweigher Features
Model: XQ-CZ150 5-500g Product High Accuracy Checkweigher with 150pcs/min for Food Medicine
- Password protection is set for parameter, only for management personnel.
- Automatic zero tracking system to ensure reliable detection data.
- Independent research and development of single-chip microcomputer system, unique filtering algorithm, to ensure the stability of the system.

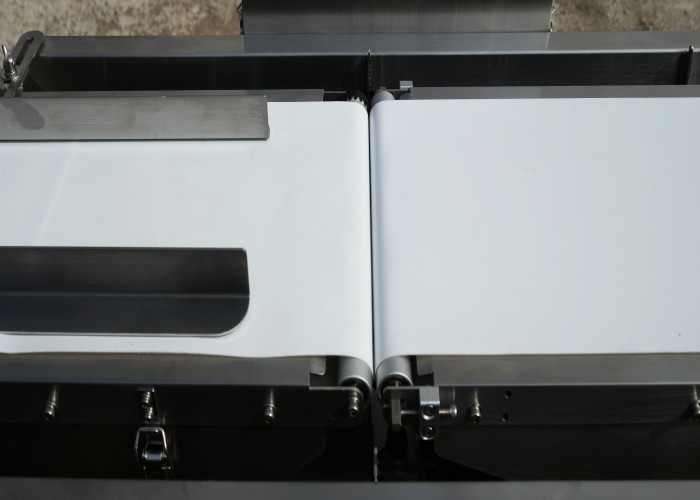

- Simple mechanical structure, buckle conveyor belt, easy to disassemble, clean and maintain.
- Machine structure is made of stainless steel 304.
Samples
