Horizontal Lipstick Adhesive Sticker Labeling Machine Bottom Automatic Bottle Labeling

Minimum Order Quantity : 1 set Packaging Details : Standard Wooden Case for Export
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 Units/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-TBD-W

Detail Information

Name: Horizontal Bottom Sticker Labeling Machine Automatic Grade: Automatic
Application: Cosmetics, Pharma, Stationery Available Product: Lipstick, Mascara, Pail Polish, Pens,
Function: Bottom Labeling Label Type: Printed
Label Qty: Single Side Label Position: Bottom
Speed: 0-50 Pcs/min Option: Coding, Printing...etc.
High Light:

Horizontal adhesive sticker labeling machine


lipstick adhesive sticker labeling machine


bottom automatic bottle labeling machine

Product Description

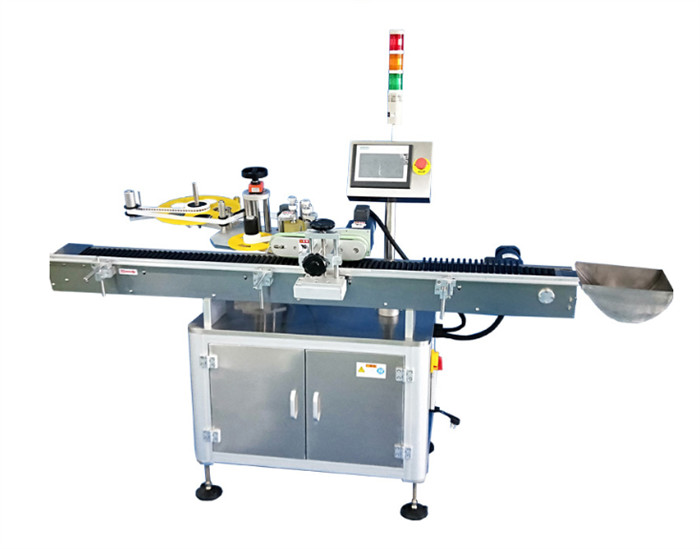

Horizontal lipstick bottom Sticker Labeling Machine


  • Product Description

The customized lipstick bottom labeling machine is specially customized for mascara, lipstick, etc. It can be applied to the bottom labeling of cylindrical, square and hexagonal products. The special mold function increases the labeling accuracy. Reduce the contact with the product body when labeling, so as to achieve the neat and beautiful appearance of the product and reduce scratches.

  • Technical Parameter
Model XQ-TBD-W
Voltage AC220V 50/60HZ
Power 1200W
Labeling speed 30-60 bottles/min (speed is adjustable, depending on the size of the object and the length of the label)
Labeling accuracy +1mm (depending on product characteristics, hardness and roundness)
Air pressure 0.4-0.6Mpa
Object range Make molds according to product specifications
Label Size Width 20mm~~40mm Length 20~~40mm (special specifications can be customized)
Label roll Inner dia. Φ76mm outer diameter of paper roll: Φ320 (maximum)
Machine weight 200KG
Machine Size 1800X900X1300mm
Note: The following are the technical parameters of standard models, other special requirements and functions can be customized
  • Working Process

1. The product is placed in a special mold, and the conveying drives the movement of the product.
2. Arrive at the designated station, and the product is detected by photoelectricity. Labeling machine out of the label.
3. After the labeling is completed, the labeling mechanism is retracted, the product falls into the mold, and the conveying movement takes the product away.

  • Product Features

1. Stick the label to the Bottom position of the product which are not easy to stand-up
2. Print batch number, production date and output count.
3. In case of bottle shortage, the control system can ensure that no label is sent, effectively prevent label waste.
4. Can make stepless speed regulation according to the production characteristics of each factory, so as to ensure that the machine can be used alone or used in line with other machines.
5. The pressing parts can make the bottle with uneven surface get satisfactory labeling effect.
6. Automatic bottle feeding device is optional.
7. The fixed-point labeling is accurate and the error is small.
8. Reduce the friction damage of the bottle body and ensure the integrity of the appearance.
  • Product Samples

Horizontal Lipstick Adhesive Sticker Labeling Machine Bottom Automatic Bottle Labeling 0Horizontal Lipstick Adhesive Sticker Labeling Machine Bottom Automatic Bottle Labeling 1
