Online Weighing Square Bottle Sticker Labeling Machine 30 Pcs/Min Self Adhesive

Minimum Order Quantity : 1 set Packaging Details : Standard Wooden Case for Export
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 Units/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-TB

Detail Information

Name: Weighing Online Printing And Labeling Machine Automatic Grade: Automatic
Application: Food, Beverage, Stationery, Pharma, Cosmetics Available Product: Product In Cartons, Pouches, Standup Pouches, Bags
Function: Weighing, Lable Printing, Labeling Label Type: Printed
Label Qty: Single Side Label Position: Side
Speed: 1-30 Pcs/min Option: Coding, Printing...etc.
High Light:

online square bottle sticker labeling machine


weighing square bottle sticker labeling machine


30 pcs min self adhesive labeling machine

Product Description

Automatic Carton Case Weighing Online Printing Sticker Labeling Machine


  • Product Description

Weighing Online Printing Sticker Labeling Machine is in conjunction with the automatic conveying system, weighs the products and assigns data to the label printing through the automatic weighing machine, realizing the automatic product weighing, label printing and attaching functions at the same time.

  • Technical Parameter
Model XQ-TB
Weighing Weighing Range 0.05-30kg
Accuracy ±5-20g, depending on product
Min. scale 1g
Max. Products 400mm*450mm*400mm, customized
Max. Speed 40 package/min
Printing Method Transfer/Thermal
DPI 300 dpi
Speed 254mm/s
Range Width 105mm; Length 300mm
Print content Text, serial number, date, pattern, one /two - dimensional) bar code, etc
Labeling Speed 30-40 pcs/min
Accuracy ±1mm
Label Width 20-104mm
Label Length 20-200mm
Power supply 220V 50/60 Hz
Air Source 0.6mpa / 90L/min
  • Product Features

1. Adopt high-performance barcode printing engine imported from the United States, high-speed and long-life pneumatic labeling arm, excellent printing quality, long service life, and unparalleled reliability in harsh application environments;
2. Instantly print and paste, the print content is synchronized with the product or packaging in real time, completely eliminating printing, coding, data association and labeling errors;
3.7x24 hours continuous, high-speed, fully automatic printing and labeling.
4. Special air distribution block, highly flexible air pipe and quick deflation safety valve, which are safer and convenient for users to adjust the labeling position;
5. Imported PLC controls the start and stop of printing and labeling, which can seamlessly connect with industrial control systems such as user PLC; the touch screen control interface is simple to operate and the interface is clear and easy to understand.
6. It can realize seamless integration with the upper system through data interfaces such as ODBC or XML; link WMS, WCS,
ERP and other systems to realize the interactive distribution of data, and complete the task of printing jobs.
7. The product is detected by the sensor, the signal is processed by the PLC, and the labeling position can be modified by setting parameters before and after.
8. It is suitable for printing and labeling conditions such as top sticking and side sticking, and can also be integrated into workstations, automated production lines, packaging lines or logistics sorting lines.
  • Working Process

The automatic printing and labeling machine cooperates with the automatic conveying system. The weight value is weighed by the automatic weighing machine and assigned to the label to realize the automatic product weighing and label printing and attaching functions. The specific description is as follows:
1. Using an automatic printing and labeling machine
2. The modified atmosphere packaging box enters the automatic checkweigher through the conveying line, weighs the weight value and assigns it to the customer label printing template. After the assignment calculation is completed, the software system sends the corresponding printing data to the printing and labeling machine (attach a The label is fixed on the top surface of the carton)
3. After the labeling is completed, the products continue to be conveyed and flow out through the conveying line
4. Repeat steps 2-3 for subsequent products

  • Product Samples

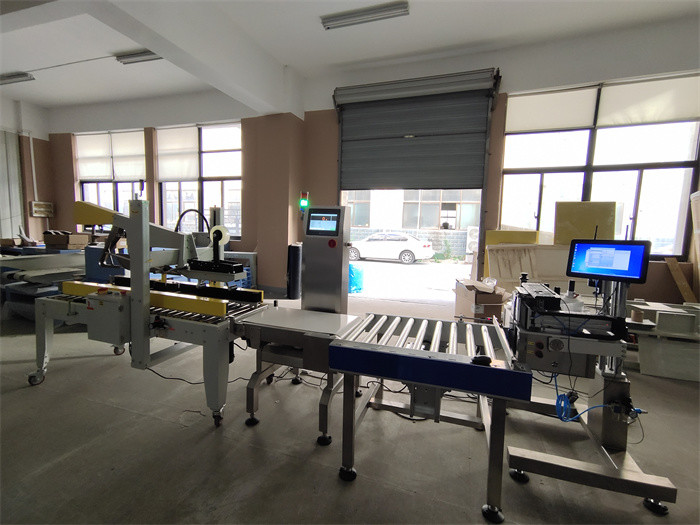

Online Weighing Square Bottle Sticker Labeling Machine 30 Pcs/Min Self Adhesive 0Online Weighing Square Bottle Sticker Labeling Machine 30 Pcs/Min Self Adhesive 1
