Fully Automatic 220v Carton Erector Machine Digital Communication Cardboard Box Erectors

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-KX-400

Detail Information

Name: Fully Automatic Carton Erector Machine Adhesive Tape Width: 60/75mm
Sealing Type: Adhesive Tape Speed: 12ctn/min
Power: 2050W Voltage: 220V 50/60Hz Single Phase
Available Dimension: L250-460mm×W150-400mm×H100-400mm Application: Packing And Printing Industry, Food Industry, Medicine Industry
Carton Storage Quantity: 80-100pcs (800-1000mm) Machine Dimension: L2150mm×W2150mm×H1750mm
High Light:

fully automatic Carton Erector Machine

,

220v Carton Erector Machine

,

Digital Communication cardboard box erectors

Product Description

Fully Automatic XQ-KX-400 Carton Erector Machine for Digital Communications Industry



Carton Erector Machine Introduction



Automatic servo vertical box machine is a kind of automatic grasping through suction cups, one-click switching automatic adjustment of carton size, and automatic molding equipment. The fully automatic carton erector machine has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics, packing & printing and other industries.



Technical Parameter



Model XQ-KX-400
Carton Opening Speed 12ctns/min
Carton Size L250-460mm×W150-400mm×H100-400mm
Power Supply 220V 50/60Hz 1Phase
Power 2050W
Adhesive Tape Width 60/75mm
Carton Storage Quantity 80-100pcs (800-1000mm)
Air Consumption 45ONL/min
Air Compressing 6kg/cm3
Table Height 620+30 mm
Machine dimension L2150mm×W2150mm×H1750mm
Machine Weight 450Kg

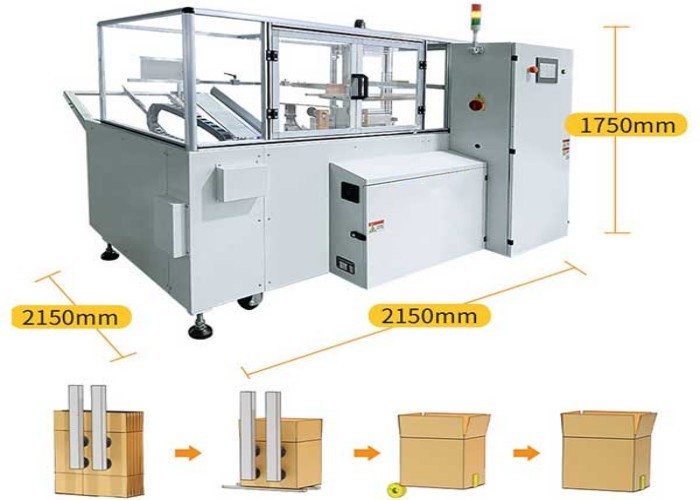

Machine Principle

Fully Automatic 220v Carton Erector Machine Digital Communication Cardboard Box Erectors 0



Carton Erector Machine Features

Model: Fully Automatic XQ-KX-400 Carton Erector Machine for Digital Communications Industry

1. High unpacking efficiency: servo control system, one-button switch can automatically adjust the size of the carton, the whole process of unmanned operation, fast and stable unpacking, 12 boxes / min.
2. Durable parts: Use durable parts, electrical components, pneumatic components.
3. Can be used in combination: can be operated alone or with automatic packaging lines.
4. Labor saving: The packaging of goods is done with machines instead of labor.
5. Safer: Increase the alarm prompt of broken belt, and the door will stop automatically to avoid misoperation.
