Horizontal Cosmetics Folding Carton Erector 30 Carton/Min Equipment
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 50 set/ month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-FX-128 |
|
Detail Information |
|||
| Name: | Tape Sealing Carton Erector Machine | Structure: | Bucket |
|---|---|---|---|
| Sealing Type: | Tape | Speed: | 8-12pcs/min |
| Power: | 240w | Voltage: | 220v |
| Available Dimension: | L150-500mm, W200-500mm, H320-650mm | Application: | Biscuits, Chips, Candies |
| High Light: | Oil Bucket box erecting machine,vertical box erecting machine,Tape Sealing combi carton erector |
||
Product Description
Tape Sealing Cooking Oil Bucket Vertical Carton Erector Machine for Food
Carton Erector Machine Introduction
This Automatic Carton Erector Machine – Box Erector Machine is useful in bulk productivity in short duration, erecting cases of various sizes into different shapes and seal the bottom of the box with tape/hot glue. Carton erecting machine is very much useful and in high demand for auto packaging line.
Carton erectors are used in automated or semi-automated carton/case packaging processes. Its main function is to erect (unfold) the cardboard box and seal the bottom flaps so that it is ready for packing. There are semi-automatic and fully automatic carton erectors.
Technical Parameter
| Model | XQ-FX-128 | |||||||||
| Applicable carton size(L*W*H) | (150-500)*(200-500)*(30-650)mm(Can be customized) | |||||||||
| Conveying speed | 20 m / min | |||||||||

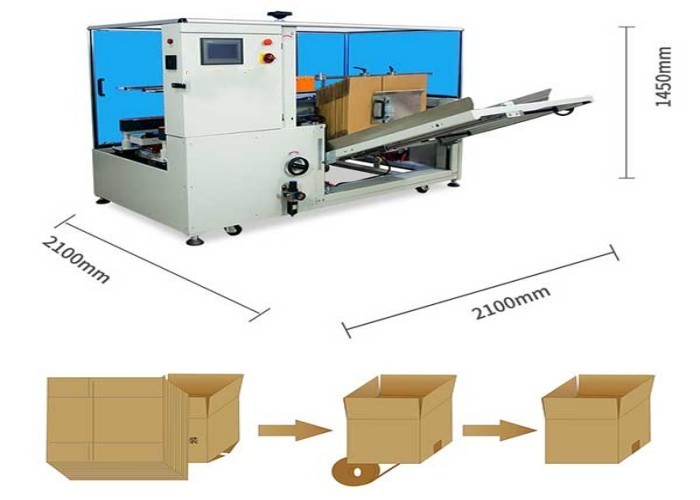

| Equipment size | 2070mm(L)*2040mm(W)*1470mm(H) | |||||||||
| working speed | 8-12 boxes/min,depend on carton size | |||||||||
| Power supply | 220/380V 50Hz(Alternative use) | |||||||||
| Apply pressure | 6kgf/cm² | |||||||||
| Tape width | 48/60/75mm(Alternative use) | |||||||||
| Equipment weight | 500kg | |||||||||
| Machine Dimensions | 1900 (mm) × 950 (mm) × 1200 (mm) | |||||||||
Machine Principle
Model: XQ-FX-128 8-12pcs/min Tape Sealing Vertical Carton Erector Machine for Juice Bottle
1. Equipped with protective door, replacing tape conveniently and safely as the door open.
2. Using endurable conveyor belt with strong friction which can transport steadily.
3. Equipped with protective door, replacing tape conveniently and safely as the door open.
4. Upgraded mechanism of folding front and rear board, cartons can be formed faster, stable and endurable.
Samples
