Horizontal Cosmetics Folding Carton Erector 30 Carton/Min Equipment
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 50 set/ month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-FX-128 |
|
Detail Information |
|||
| Name: | Carton Erector Machine For Juice Bottle | Structure: | Vertical |
|---|---|---|---|
| Sealing Type: | Tape | Speed: | 8-12pcs/min |
| Power: | 240w | Voltage: | 220v |
| Available Dimension: | L150-500mm, W200-500mm, H320-650mm | Application: | Biscuits, Cooking Oil, Cake |
| High Light: | 12 pcs min corrugated box erector,8 pcs min corrugated box erector,vertical case erecting machine |
||
Product Description

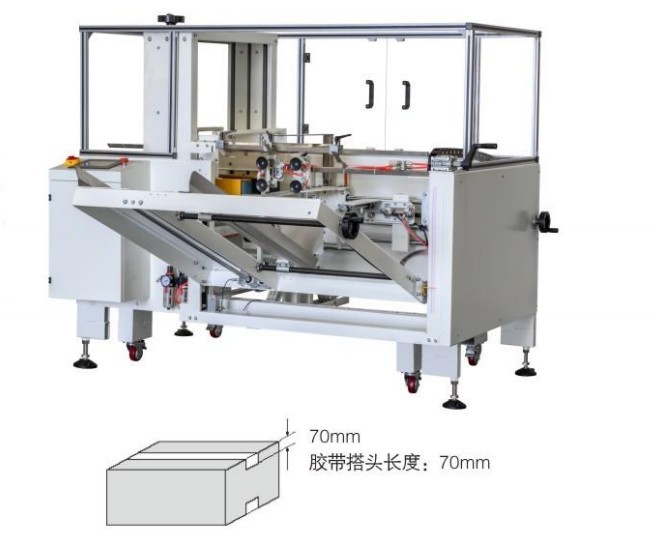

8-12pcs/min Tape Sealing Vertical Carton Erector Machine for Juice Bottle
Carton Erector Machine Introduction
This Automatic Carton Erector Machine – Box Erector Machine is useful in bulk productivity in short duration, erecting cases of various sizes into different shapes and seal the bottom of the box with tape/hot glue. Carton erecting machine is very much useful and in high demand for auto packaging line.
Technical Parameter
| Model | XQ-FX-128 | |||||||||
| Applicable carton size(L*W*H) | (150-500)*(200-500)*(30-650)mm(Can be customized) | |||||||||
| Conveying speed | 20 m / min | |||||||||
| Equipment size | 2070mm(L)*2040mm(W)*1470mm(H) | |||||||||
| working speed | 8-12 boxes/min,depend on carton size | |||||||||
| Power supply | 220/380V 50Hz(Alternative use) | |||||||||
| Apply pressure | 6kgf/cm² | |||||||||
| Tape width | 48/60/75mm(Alternative use) | |||||||||
| Equipment weight | 500kg | |||||||||
| Machine Dimensions | 1900 (mm) × 950 (mm) × 1200 (mm) | |||||||||
Machine Principle
Model: XQ-FX-128 8-12pcs/min Tape Sealing Vertical Carton Erector Machine for Juice Bottle
1. This equipment works as an stand-alone operation, automatic suction box, folding, bottom sealing tape, all is completed at once time.
2. Using endurable conveyor belt with strong friction which can transport steadily.
3. Equipped with protective door, replacing tape conveniently and safely as the door open.
4. The use of advanced technology manufacturing, durable structure, preferably with high-quality electronic and pneumatic components.
Samples
