Bottle Can Tray Shrink Wrapping Machine Sleeve Type Automatic
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
---|---|---|---|
Delivery Time : | 30 work days | Payment Terms : | T/T |
Supply Ability : | 100 set/ month |
Place of Origin: | Wuxi,China | Brand Name: | SICI AUTO |
---|---|---|---|
Certification: | CE | Model Number: | XQ-6030+SF-6040E |
Detail Information |
|||
Name: | Semi Auto Sleeve Type Shrink Wrapping Machine | Automatic Grade: | Semi Auto |
---|---|---|---|
Available Product: | Catons, Pouches, Bottles, Cans, Tubes, Bags Etc. | Speed: | 1-10 Pcs/min |
Cut-seal Way: | Straight L Cut | Product Feeding: | Manual |
Shrink Wap Effect: | Sleeve Type | Shrink Film: | PE |
Function: | For Single Wrap Or Bundle Wrap | Application: | Small Batch Production Of Products |
High Light: | L semi automatic shrink wrapping machine,PE semi automatic shrink wrapping machine,manual shrink wrap heat tunnel |
Product Description

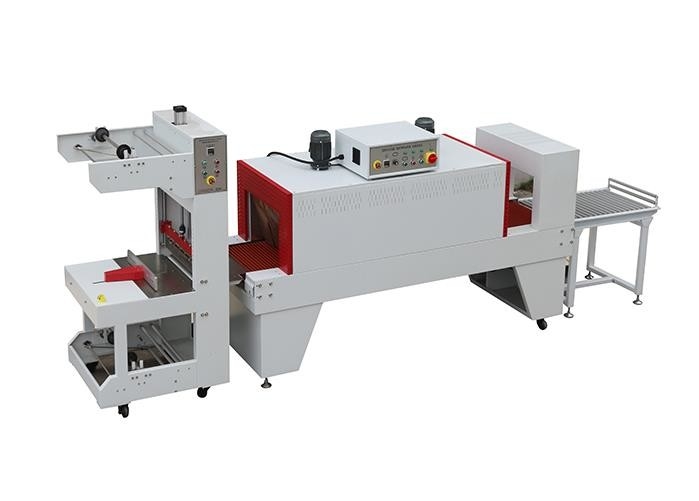

Semi Auto Sleeve Type Shrink Wrapping Machine
Semi Auto Sleeve Type Shrink Wrapping Machine is an ecomical shrink wrap equipment for small production, Product feeding by manual with function of the sealing, cutting and shrinking machine is to use shrink film to wrap the outside of the package, and then heat the packaging material to shrink and wrap the product tightly, which protects the product from moisture, pollution, and certain external impacts.
Model | XQ-6030+SF-6040E | |||||||||
Sealing knife size | 670mm | |||||||||
Working Temperature | 0-300℃ | |||||||||
Total Power | 20kw | |||||||||
Working table height | 820±50mm | |||||||||
Packing speed | 6-10 bunches/min | |||||||||
Suitable film | PE | |||||||||
Shrinking film thickness | 0.04-0.16mm | |||||||||
Loading weight | 35kg | |||||||||
Shrinking rate | 35% for horizontal, 50% for vertical | |||||||||
Voltage | 380V 50Hz | |||||||||
Air source | 6-8kg/cm² | |||||||||
Machine Weight (kg) | 800kg | |||||||||
Max packing size | 500*300*350mm |
Using FATEK PLC programmable controller to realize the integration of machine, electricity and gas
Photoelectric switch automatically detects that the product is in place
Using a specially designed three-piece sealing knife, the sealing line is firm and does not split, the outer surface of the knife body is plated with high temperature resistant Teflon, which does not stick to the knife, and the sealing has no peculiar smell.
The original Korean imported Autonics digital display thermostat has accurate temperature and can directly see the sealing and shrinking temperature
Conveying adopts frequency converter to control the conveying speed, and the stepless speed regulation conveying is more stable
Super-large air volume cooling airflow, the product quickly cools and shrinks after thermal expansion
The machine adopts stainless steel 304 heating tube for heating
The constant temperature circulating air duct system makes the temperature in the shrinking chamber more uniform, so that the shrinking products can achieve the best effect
The solid wire drawing steel rod is covered with imported silicone tube, and the chain rod conveying is durable and can be conveyed with different materials according to different products.
Packaging way is sleeve type shrink wrap packing.
