Bottle Can Tray Shrink Wrapping Machine Sleeve Type Automatic
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30-45 work days | Payment Terms : | T/T |
| Supply Ability : | 100 set/ month |
| Place of Origin: | Wuxi,China | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-SW450A+XQ-ST4525 |
|
Detail Information |
|||
| Name: | Auto L Type Shrink Wrapping Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Available Product: | Catons, Pouches, Bottles, Cans, Tubes, Bags Etc. | Speed: | 1-30 Pcs/min |
| Cut-seal Way: | L Cut | Cutter Driven Method: | Auto, Pneumatic |
| Shrink Wap Effect: | Full-closed | Shrink Film: | POF |
| Function: | For Single Wrap Or Bundle Wrap | Application: | Digital Electronics, Stationery, Daily Chemical, Food, Cosmetics |
| High Light: | 1 PCS MIN shrink wrapping machine for boxes,30 PCS MIN shrink wrapping machine for boxes,POF shrink tunnel wrapping machine |
||
Product Description

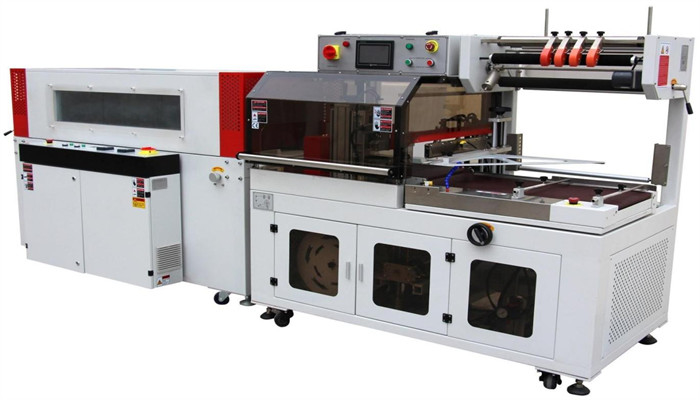

Automatic L type Shrink Wrapping Machine / Speed 1-30 PCS/MIN
It is a shrink wrapping machine for full-closed shrink wrapping. It is widely used in mass production packaging lines, including printing, color boxes, greeting cards, photo albums, photo frames, medicine, electronics, daily chemicals, cosmetics, auto parts, hardware, food and other industries.
| Model | Cut-seal machine/XQ-SW450A | Shrink tunel /XQ-ST4525 |
| Max. Packing Sizes L×W×H | 380*300*125mm | |
| Packing Speed |
0-30 PCS/MIN (depend on product size) 0-30 PCS/MIN |
|
| Sealing Blade Size | 550×W450mm; Customized | / |
| Power | ≤2kw | 9kw |
| Power Supply | 220V 50/60Hz | 3PH 380V 50HZ |
| Working table height | 820±50mm | |
| External Air Source | 5.5 -8 KG/cm2 | / |
| Tunnel Size L×W×H | / | 1000*450*250mm; Customized |
| Max. heat Shrink temperature | / | 300℃ |
| Shrink Film | POF | |
| Machine Size L×W×H | L1860×W1580×H1650,Customized | 1300*750*1550,Customized |
| N. Weight | 700kg | 380kg |
1. This machine is composed of governor conveying, constant temperature heating and electromechanical integration
2 This machine adopts automatic temperature control, hot air constant temperature circulation, and air duct system is energy-saving and efficient
3. The original digital display thermostat, the temperature is accurate, you can directly see the shrinkage temperature
4. Conveying stepless speed regulation is more stable
5. Large air volume cooling airflow, shrinking and shaping
6. The constant temperature circulating air duct system makes the temperature in the shrinking warehouse more uniform, so that the shrinking products can achieve the best effect
7. The use of Teflon type conveying can adopt different material conveying structures according to different products.
