PVC PP Semi Auto Shrink Wrapping Machine 15 Pcs/Min Tunnel Stretch Wrapper

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ- SF-3246

Detail Information

Name: 2 In 1 Semi Auto Shrink Wrapping Machine Automatic Grade: Automatic
Available Product: Catons, Pouches, Bottles, Cans, Tubes, Bags Etc. Speed: 1-15 Pcs/min
Cut-seal Way: L Cut Cutter Driven Method: Manual
Shrink Wap Effect: Full-closed Shrink Film: POF、PP、PVC
Function: For Single Wrap Or Bundle Wrap Application: Small Batch Production Of Products
High Light:

PVC semi auto shrink wrapping machine

,

PP semi auto shrink wrapping machine

,

15 pcs/min tunnel stretch wrapper

Product Description

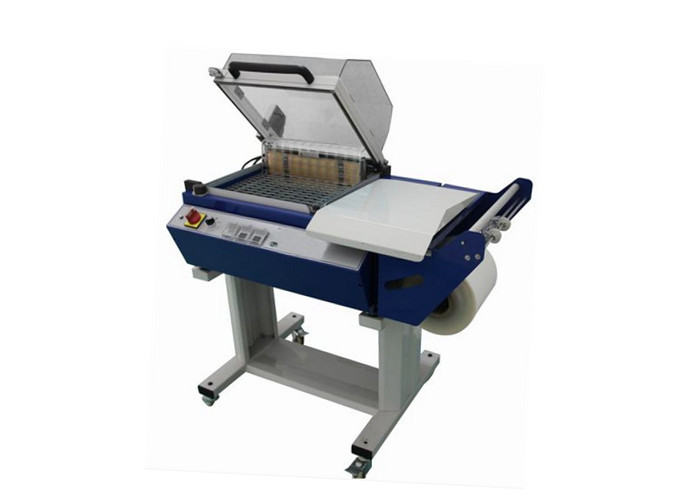

Small 2 in 1 Semi Auto Shrink Wrapping Machine

  • Product description

The two-in-one Semi Auto Shrink Wrapping Machine consumes less power, with small power consumption. It uses POF, PP, and PVC shrink films as materials. It integrates sealing and shrinking. It covers an area of only 1 square meter and only needs one person The sealing and shrinking operation can be completed in the work, which greatly reduces the power consumption.



It is widely used in the outer packaging of food, beverages, gifts, medicine, audio and video products, hardware, cosmetics, books, newspapers, toys, plastics, electronics and other products.



  • Technical Parameter
Model XQ- SF-3246
Sealing Dimension(L×W) 320×460mm
Maximum Pack Height 200mm
Capacity 500pcs/hour
Power Supply 3.8kw 220V 50Hz
Shrink film POF , PVC Film
Machine Size(L×W×H) 1150×700×1200mm
Machine Weight 100kg
  • Working Principle

1. Correctly connect the 220V power supply and turn on the main power switch.
2. Set the temperature display to about 150-180°C.
3. Turn on the required function switch, the indicator light is on.
4. After the conveying switch is turned on, the conveying adjustment knob 0-8 stepless speed regulation controls the running speed of the conveying belt.
5. When the temperature reaches the set temperature, the shrink-wrapped items can be placed at the entrance of the conveyor belt of the machine for shrink-wrapping.



  • Product Features

①The two-in-one heat shrink packaging machine adopts quartz tube/tempered tube heating.
②The electrical components used are of high quality and brand, which improves the quality of the whole machine.
③Adopting special mechanical structure design, the appearance is more beautiful, and the maintenance becomes easy and convenient.
④The conveying part of the machine adopts high-power DC motor, which can carry out stepless speed regulation, and at the same time, the bearing rate is high, which can work continuously for a long time, and the operation is stable and reliable.
⑤ Perfect shrink packaging can be done for POF film, PVC film, heat shrinkable labels and other packaging materials.
⑥The instrument controls the temperature. When the temperature reaches the set temperature, it will automatically stop heating to save electricity.



  • Product Samples

PVC PP Semi Auto Shrink Wrapping Machine 15 Pcs/Min Tunnel Stretch Wrapper 0

PVC PP Semi Auto Shrink Wrapping Machine 15 Pcs/Min Tunnel Stretch Wrapper 1
